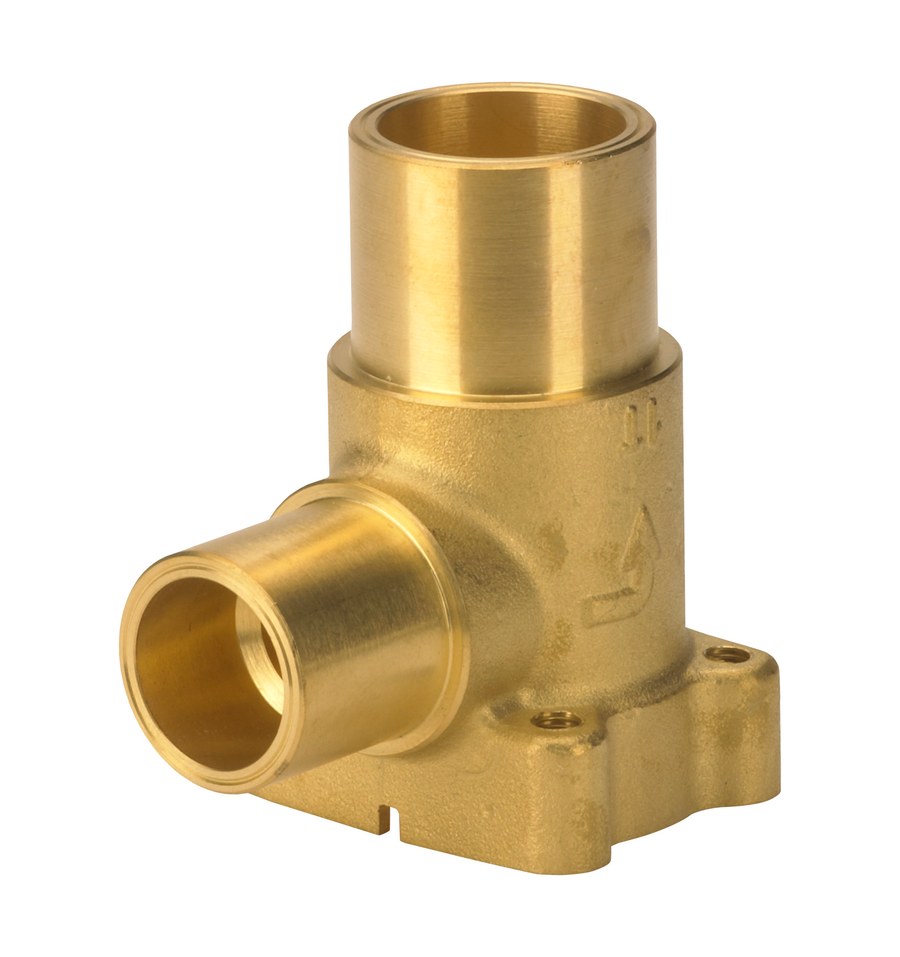

Danfoss valve body for TE 55 / TQ 55 thermostatic expansion valve, 1 1/8 in × 1 3/8 in solder ODM, angleway, brass
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss interchangeable valve body for the TE 55 / TQ 55 thermostatic expansion valve. 1 1/8 in × 1 3/8 in solder ODM connections, angleway flow, brass body, bi-flow with balanced port. Supplied in a multi-pack of 20; includes screws and washers. Pair with a matching orifice assembly and power element (ordered separately).
Technical Specifications
- Type
- Valve body (thermostatic expansion valve, parts program)
- Used for
- TE 55 / TQ 55
- Connections
- 1 1/8 in × 1 3/8 in solder ODM
- Direction
- Angleway
- Body material
- Brass
- Flow direction
- Bi-flow
- Balanced port
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Supplied with
- Screws and washers
- Packing format
- Multi pack (20 pieces per pack)
- Net weight
- 0.51 kg / Gross: 0.532 kg
- EAN
- 5702428322386
- MPN
- 067G4004
- Product group
- Expansion valves
- Approval
- LLC CDC TYSK
- Balanced port [Yes/No]
- Yes
- China RoHS compliance
- Out of scope
- Connection Code
- (3002:X:29; 3002:X:35)
- Connection material
- Brass
- EU RoHS compliance
- Out of scope
- Inlet connection type
- Solder, ODM
- Inlet size [in]
- 1 1/8 in
- Outlet connection type
- Solder, ODM
- Outlet size [in]
- 1 3/8 in
- Parts included
- Screws
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Used for product
- TE 55
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
