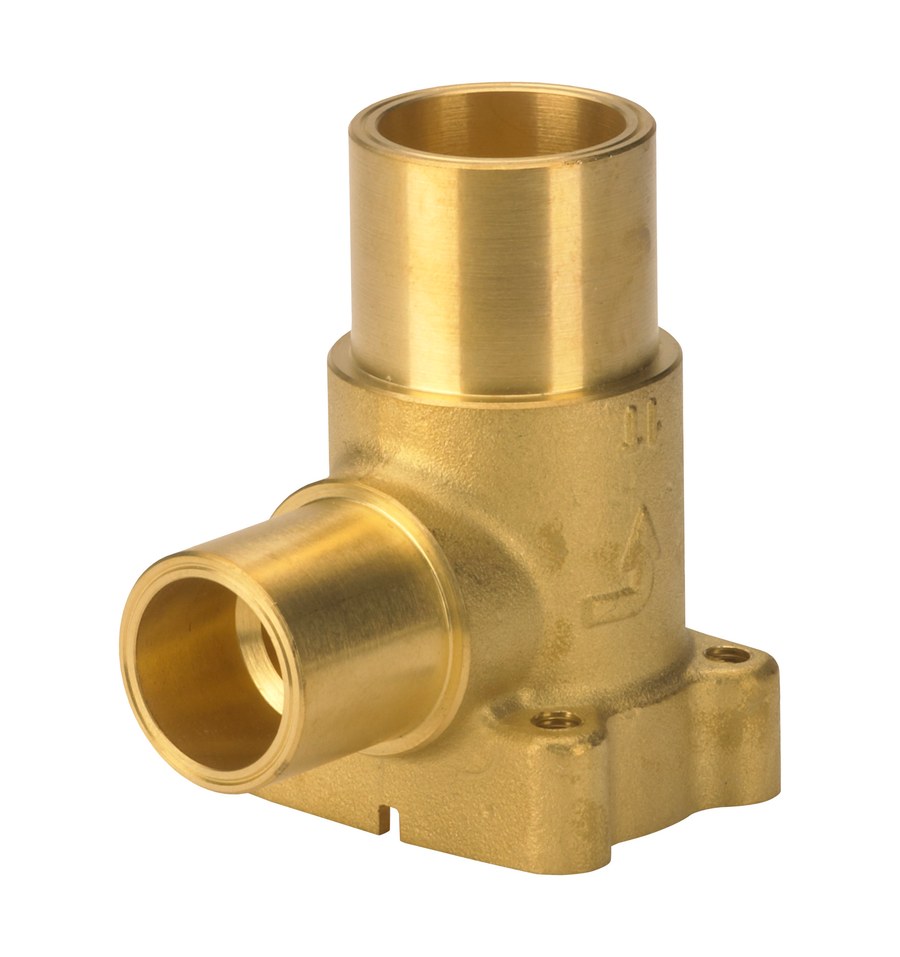

Danfoss valve body for TE 55 / TQ 55 thermostatic expansion valve, 28 mm × 35 mm solder ODM, angleway, brass
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss interchangeable valve body for the TE 55 / TQ 55 thermostatic expansion valve. 28 mm × 35 mm solder ODM connections, angleway flow, brass body, bi-flow with balanced port. Supplied in a multi-pack of 20; includes screws and washers. Pair with a matching orifice assembly and power element (ordered separately).
Technical Specifications
- Type
- Valve body (thermostatic expansion valve, parts program)
- Used for
- TE 55 / TQ 55
- Connections
- 28 mm × 35 mm solder ODM
- Direction
- Angleway
- Body material
- Brass
- Flow direction
- Bi-flow
- Balanced port
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Supplied with
- Screws and washers
- Packing format
- Multi pack (20 pieces per pack)
- Net weight
- 0.51 kg / Gross: 0.535 kg
- EAN
- 5702428322362
- MPN
- 067G4002
- Product group
- Expansion valves
- Approval
- LLC CDC TYSK
- Balanced port [Yes/No]
- Yes
- China RoHS compliance
- Out of scope
- Connection Code
- (3001:X:28; 3001:X:35)
- Connection material
- Brass
- EU RoHS compliance
- Out of scope
- Inlet connection type
- Solder, ODM
- Inlet size [mm]
- 28 mm
- Outlet connection type
- Solder, ODM
- Outlet size [mm]
- 35 mm
- Parts included
- Screws
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Used for product
- TE 55
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 / TE 55 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss

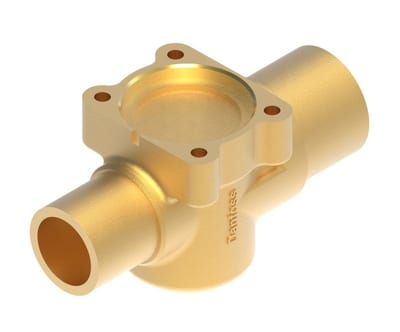

Danfoss valve body for TE 55 / TQ 55 thermostatic expansion valve, 1 1/8 in × 1 3/8 in solder ODM, straightway, brass
067G4003
Danfoss
Danfoss valve body for TE 55 / TQ 55 thermostatic expansion valve, 1 1/8 in × 1 3/8 in solder ODM, angleway, brass
067G4004
Danfoss
Danfoss power element for TE 12 thermostatic expansion valve, R22/R407C, externally equalized, MOP 28 bar (400 psig)
067B3210
Danfoss
Danfoss power element for TE 20 thermostatic expansion valve, R22/R407C, externally equalized, MOP 28 bar (400 psig)
067B3290
Danfoss

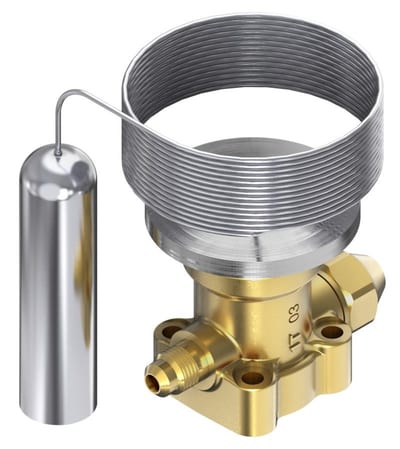

Danfoss power element for PHTN thermostatic expansion valve, R134A, externally equalized
067B3310
Danfoss
Danfoss power element for TE 12 thermostatic expansion valve, R404A/R507A, externally equalized, MOP 30 bar at -20 °C (-5 °F)
067B3350
Danfoss

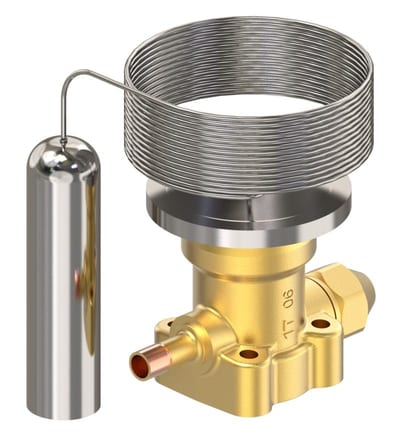

Danfoss power element for TE 5 thermostatic expansion valve, R404A/R507A, externally equalized, MOP 28 bar (400 psig)
