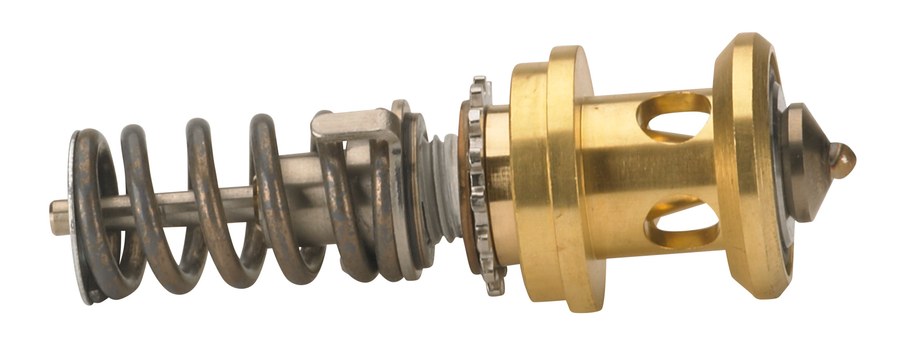

Danfoss orifice assembly no. 08 for TE 20 thermostatic expansion valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss interchangeable orifice assembly (ORF) no. 08 for the TE 20 thermostatic expansion valve. R134a 77 kW, R22 127 kW, R404A/R507A 84 kW, R407A 127 kW, R407C 116 kW, R407F 141 kW. Compatible refrigerants: R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A. Fits the TE 20 valve body of the TE parts program.
Technical Specifications
- Type
- Orifice assembly (ORF, thermostatic expansion valve)
- Used for
- TE 20
- Orifice no.
- 08
- Refrigerants
- R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A
- Rated capacity (Range N)
- R134a 77 kW, R22 127 kW, R404A/R507A 84 kW, R407A 127 kW, R407C 116 kW, R407F 141 kW
- Rating basis
- te 4.4 °C, tc 38 °C, tliq 37 °C (ARI)
- Net weight
- 0.13 kg / Gross: 0.166 kg
- EAN
- 5702428320931
- Code number
- 067B2771
- Product group
- Expansion valves
- Orifice size
- 08
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Rated cap. cond. Range N [IMP]
- tcond=100 °F; tevap=40 °F; tliq=98 °F
- Rated cap. R134a, Range N
- 77.00 kW, 22.00 TR
- Rated cap. R22, Range B
- 67.20 kW, 19.10 TR
- Rated cap. R22, Range N
- 127.00 kW, 36.00 TR
- Rated cap. R404A, Range B
- 40.40 kW, 11.50 TR
- Rated cap. R404A, Range N
- 84.00 kW, 24.00 TR
- Rated cap. R407A, Range N
- 127.00 kW, 36.00 TR
- Rated cap. R407C, Range N
- 116.00 kW, 33.00 TR
- Rated cap. R407F, Range N
- 141.00 kW, 40.00 TR
- Rated cap. R507, Range B
- 40.40 kW, 11.50 TR
- Rated cap. R507, Range N
- 84.00 kW, 24.00 TR
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss
Danfoss power element for TE 12 thermostatic expansion valve, R448A/R449A
067B2512
Danfoss
Danfoss power element for TE 5 thermostatic expansion valve, R22/R407C, externally equalized, MOP 28 bar (400 psig) (code 067B3250)
Danfoss
Danfoss power element for TE 5 thermostatic expansion valve, R22/R407C, externally equalized, MOP 28 bar (400 psig) (code 067B3340)
Danfoss
Danfoss valve body for TE 55 / TQ 55 thermostatic expansion valve, 28 mm × 35 mm solder ODM, straightway, brass
067G4001
Danfoss

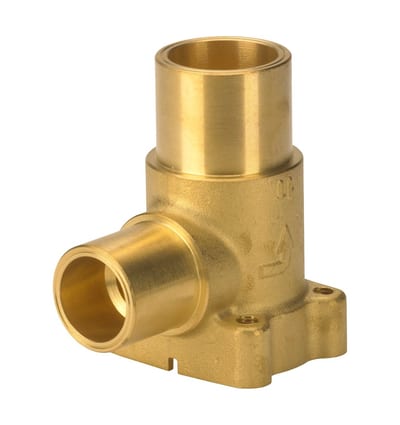

Danfoss valve body for TE 55 / TQ 55 thermostatic expansion valve, 28 mm × 35 mm solder ODM, angleway, brass
