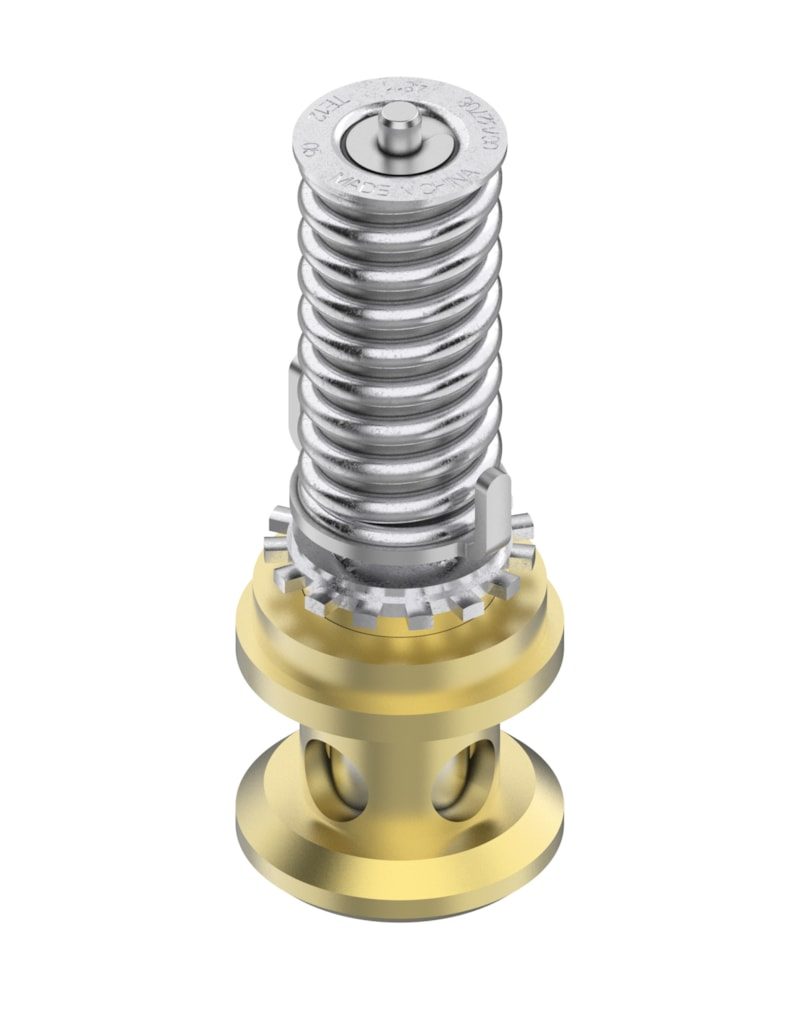

Danfoss orifice assembly no. 05 for TE 12 thermostatic expansion valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss interchangeable orifice assembly (ORF) no. 05 for the TE 12 thermostatic expansion valve. R134a 35 kW, R22 56 kW, R404A/R507A 49 kW, R407A 56 kW, R407C 53 kW, R407F 70 kW. Compatible refrigerants: R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A. Fits the TE 12 valve body of the TE parts program.
Technical Specifications
- Type
- Orifice assembly (ORF, thermostatic expansion valve)
- Used for
- TE 12
- Orifice no.
- 05
- Refrigerants
- R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R513A
- Rated capacity (Range N)
- R134a 35 kW, R22 56 kW, R404A/R507A 49 kW, R407A 56 kW, R407C 53 kW, R407F 70 kW
- Rating basis
- te 4.4 °C, tc 38 °C, tliq 37 °C (ARI)
- Net weight
- 0.13 kg / Gross: 0.162 kg
- EAN
- 5702428320900
- Code number
- 067B2708
- Product group
- Expansion valves
- Orifice size
- 05
- Approval
- LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Rated cap. cond. Range N [IMP]
- tcond=100 °F; tevap=40 °F; tliq=98 °F
- Rated cap. R134a, Range N
- 35.00 kW, 10.00 TR
- Rated cap. R22, Range B
- 28.80 kW, 8.20 TR
- Rated cap. R22, Range N
- 56.00 kW, 16.00 TR
- Rated cap. R404A, Range B
- 23.00 kW, 6.58 TR
- Rated cap. R404A, Range N
- 49.00 kW, 14.00 TR
- Rated cap. R407A, Range N
- 56.00 kW, 16.00 TR
- Rated cap. R407C, Range N
- 53.00 kW, 15.00 TR
- Rated cap. R407F, Range N
- 70.00 kW, 20.00 TR
- Rated cap. R454C, Range N
- 44.55 kW, 12.71 TR
- Rated cap. R507, Range B
- 23.00 kW, 6.58 TR
- Rated cap. R507, Range N
- 49.00 kW, 14.00 TR
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss

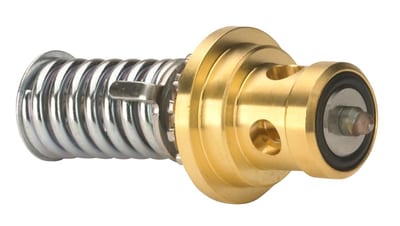

Danfoss orifice assembly no. 02 for TE 5 thermostatic expansion valve
067B2790
Danfoss

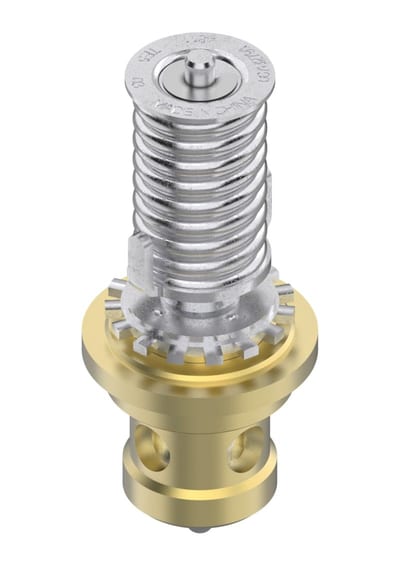

Danfoss orifice assembly no. 03 for TE 5 thermostatic expansion valve
067B2791
Danfoss

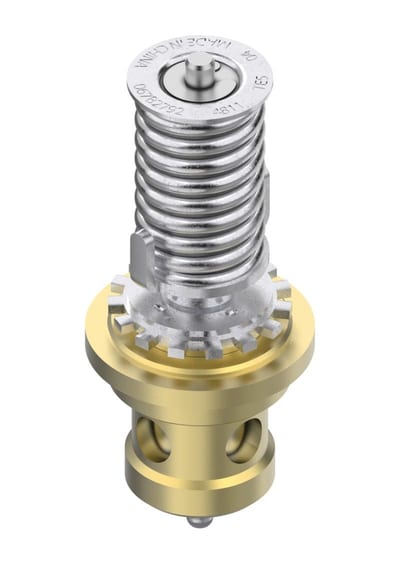

Danfoss orifice assembly no. 04 for TE 5 thermostatic expansion valve
067B2792
Danfoss

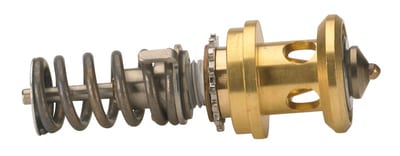

Danfoss orifice assembly no. 08 for TE 20 thermostatic expansion valve
067B2771
Danfoss

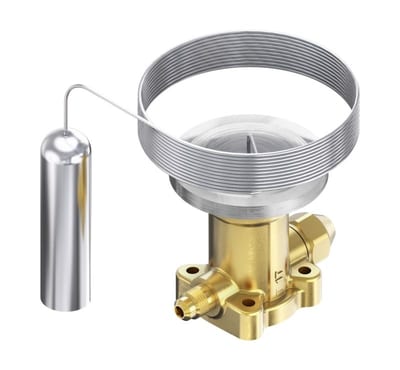

Danfoss power element for TE 12 thermostatic expansion valve, R448A/R449A
067B2512
Danfoss
Danfoss power element for TE 5 thermostatic expansion valve, R22/R407C, externally equalized, MOP 28 bar (400 psig) (code 067B3250)
Danfoss

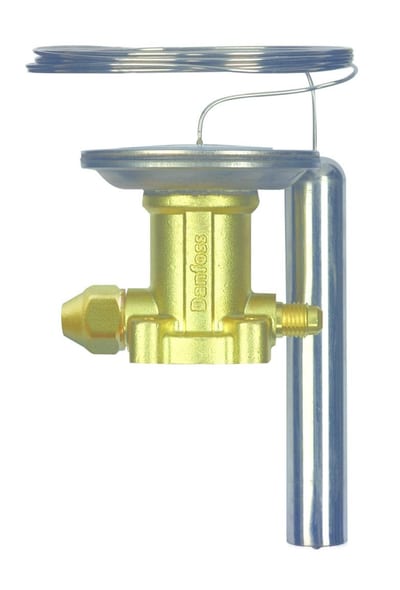

Danfoss power element for TE 5 thermostatic expansion valve, R22/R407C, externally equalized, MOP 28 bar (400 psig) (code 067B3340)
Danfoss

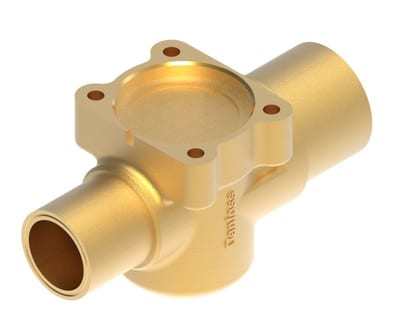

Danfoss valve body for TE 55 / TQ 55 thermostatic expansion valve, 28 mm × 35 mm solder ODM, straightway, brass
