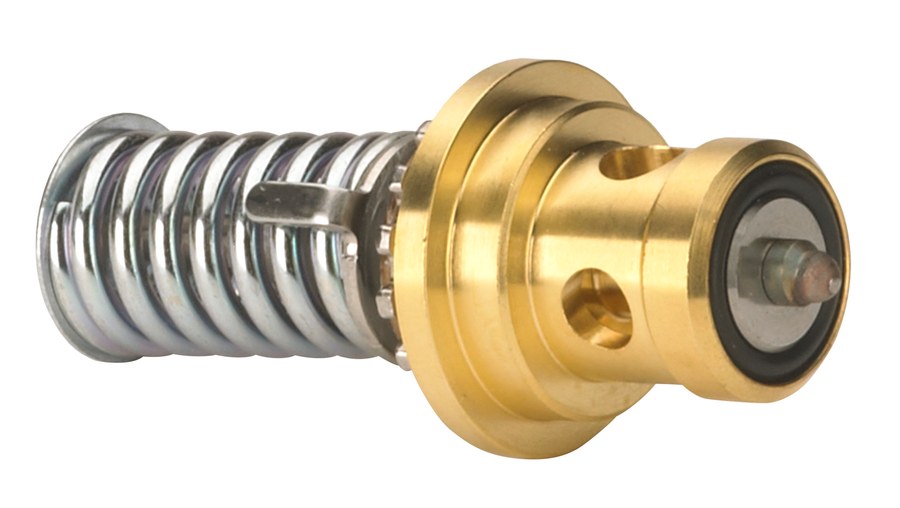

Danfoss orifice assembly no. 02 for TE 5 thermostatic expansion valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss interchangeable orifice assembly (ORF) no. 02 for the TE 5 thermostatic expansion valve. R134a 16 kW, R22 25 kW, R407C 25 kW, R407F 28 kW, R404A/R507A 19 kW, R1234yf 14 kW. Compatible refrigerants: R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R455A, R513A, R1234yf. Fits the TE 5 valve body of the TE parts program.
Technical Specifications
- Type
- Orifice assembly (ORF, thermostatic expansion valve)
- Used for
- TE 5
- Orifice no.
- 02
- Refrigerants
- R22, R134a, R404A/R507A, R407A, R407C, R407F, R448A, R449A, R452A, R455A, R513A, R1234yf
- Rated capacity (Range N)
- R134a 16 kW, R22 25 kW, R407C 25 kW, R407F 28 kW, R404A/R507A 19 kW, R1234yf 14 kW
- Rating basis
- te 4.4 °C, tc 38 °C, tliq 37 °C (ARI)
- Net weight
- 0.101 kg / Gross: 0.134 kg
- EAN
- 5702428320979
- Code number
- 067B2790
- Product group
- Expansion valves
- Orifice size
- 02
- Approval
- EAC; LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Rated cap. cond. Range N [IMP]
- tcond=100 °F; tevap=40 °F; tliq=98 °F
- Rated cap. R134a, Range N
- 16.00 kW, 4.50 TR
- Rated cap. R22, Range B
- 16.70 kW, 4.76 TR
- Rated cap. R22, Range N
- 25.00 kW, 7.00 TR
- Rated cap. R404A, Range B
- 10.90 kW, 3.09 TR
- Rated cap. R404A, Range N
- 19.00 kW, 5.50 TR
- Rated cap. R407A, Range N
- 25.00 kW, 7.00 TR
- Rated cap. R407C, Range N
- 25.00 kW, 7.00 TR
- Rated cap. R407F, Range N
- 28.00 kW, 8.00 TR
- Rated cap. R454C, Range N
- 23.27 kW, 6.63 TR
- Rated cap. R507, Range B
- 10.90 kW, 3.09 TR
- Rated cap. R507, Range N
- 19.00 kW, 5.50 TR
- Rated cap.R1234yf, Range N [kW
- 14.00 kW
- Rated cap.R1234yf, Range N [TR
- 4.00 TR
- EU RoHS compliance
- Yes with exemptions
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
