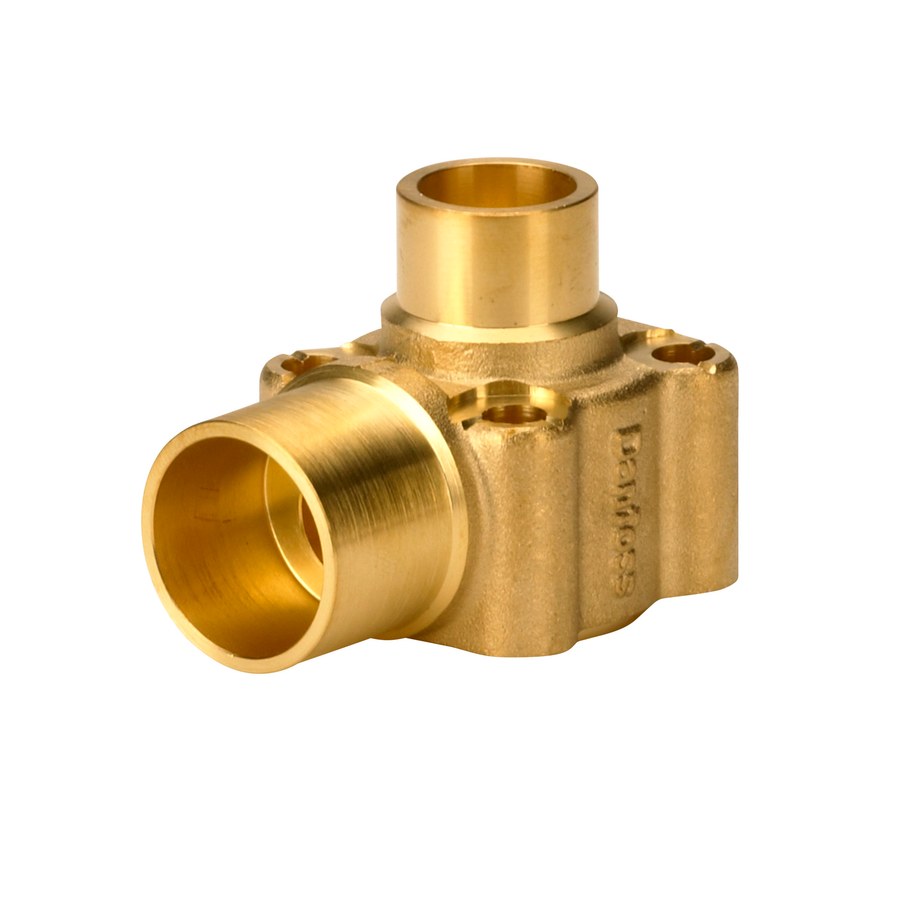

Danfoss valve body for TE 5 thermostatic expansion valve, 7/8 in (22.2 mm) solder ODF × 1 1/8 in (28.6 mm) solder ODM, angleway, brass
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss interchangeable valve body for the TE 5 thermostatic expansion valve. 7/8 in (22.2 mm) solder ODF × 1 1/8 in (28.6 mm) solder ODM, angleway flow, brass body, single-flow. Supplied with screws and washers; pair with a matching orifice assembly and power element (ordered separately).
Technical Specifications
- Type
- Valve body (thermostatic expansion valve, parts program)
- Used for
- TE 5
- Connections
- 7/8 in (22.2 mm) solder ODF × 1 1/8 in (28.6 mm) solder ODM
- Flow direction
- angleway
- Body material
- Brass
- Flow type
- Single-flow
- Supplied with
- Screws and washers
- Net weight
- 0.33 kg / Gross: 0.357 kg
- EAN
- 5702428286268
- Code number
- 067B4034
- Product group
- Expansion valves
- Direction
- Angleway
- Connection material
- Brass
- Inlet connection type
- Solder, ODF
- Inlet size
- 7/8 in
- Outlet connection type
- Solder, ODM
- Outlet size
- 1 1/8 in
- Approval
- LLC CDC TYSK
- REACH candidate-list substances
- Lead (CAS no. 7439-92-1)
- Balanced port [Yes/No]
- No
- Flow direction indicator
- Embossed 1-way arrow
- Parts included
- Screws; Washers
- EU RoHS compliance
- Out of scope
Standards & Compliance
- Classification / Approval
- PED 2014/68/EU (Manufacturer's Declaration), RoHS, EN 12178, EN 12284
- HS Code
- 8481.90
Compatibility & Fitment
For the Danfoss TE 5 / TE 12 / TE 20 thermostatic expansion valve parts program. Match refrigerant, orifice/element and body to the same valve size. Verify against your system specification.
Product Documentation
More from Danfoss
Danfoss
Danfoss valve body for TE 5 thermostatic expansion valve, 16 mm × 22 mm solder ODF, straightway, brass
067B4035
Danfoss

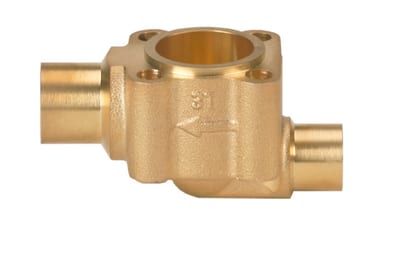

Danfoss valve body for TE 5 thermostatic expansion valve, 22 mm solder ODF × 28 mm solder ODM, straightway, brass
067B4036
Danfoss
Danfoss valve body for TE 5 thermostatic expansion valve, 22 mm solder ODF × 28 mm solder ODM, angleway, brass
067B4037
Danfoss

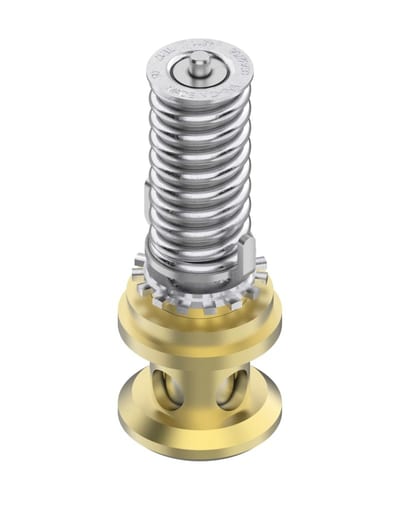

Danfoss orifice assembly no. 05 for TE 12 thermostatic expansion valve
