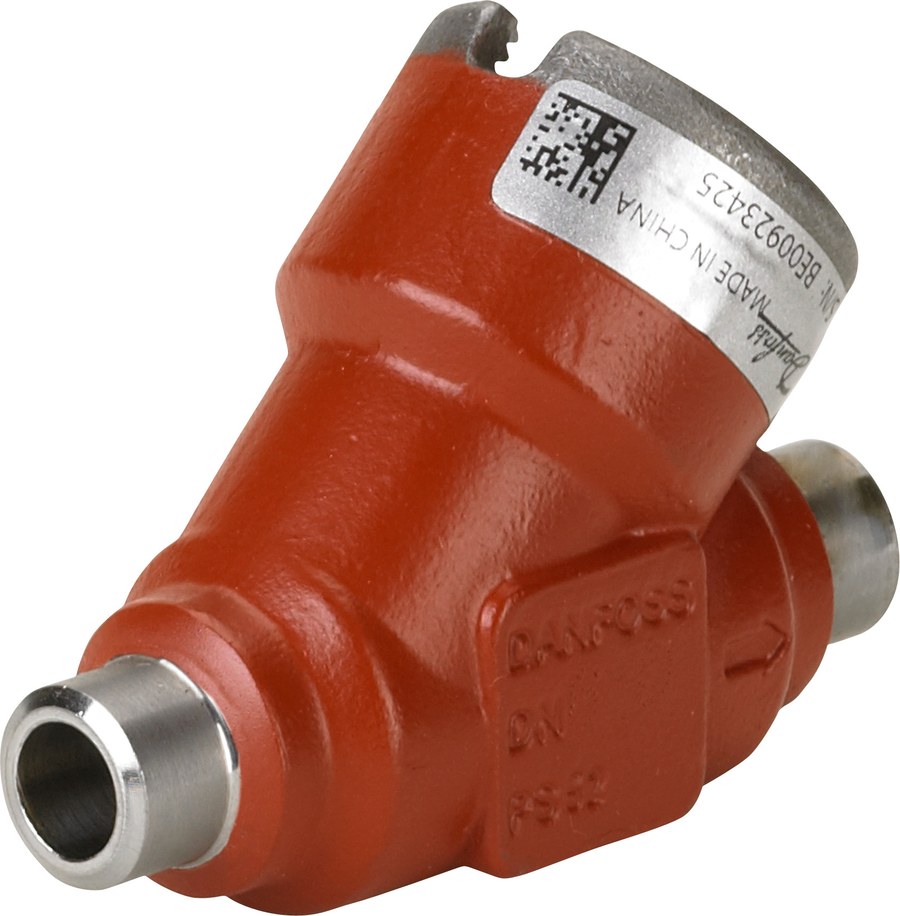

Danfoss SVL 6 Flexline multifunction valve body, 6 mm (1/4 in) straightway, butt weld to EN 10220, steel, 52 bar (code 148B5003)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVL 6 Flexline multifunction valve body (valve housing), code 148B5003. This is the bare valve housing of the Danfoss SVL/SVA Flexline programme — a distinct service part from the complete valve — to which an SVA-S/SVA-L shut-off, REG regulating, CHV check or other Flexline function module is fitted. Steel body, straightway flow, butt weld to EN 10220 connections, nominal size 6 mm (1/4 in). The housing is bi-flow with an embossed flow-direction arrow. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For R134a, R404A, R407C, R410A, R507A, R717 (ammonia), R744 (CO2) and other HCFC/HFC/HFO refrigerants. PED Article 4, paragraph 3. CE marked; UKCA marked.
Specifications
- Part number
- 148B5003
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 6 mm
Compatibility
The SVL 6 is the bare valve housing only; order the matching SVA-S/SVA-L, REG or CHV function module (top part) separately to build a complete valve, or use it to replace a corroded housing. Confirm nominal size (6 mm / 1/4 in), flow direction (straightway) and connection (butt weld to EN 10220) before ordering. SVA and SVL Flexline parts are interchangeable within a size.
Approvals
