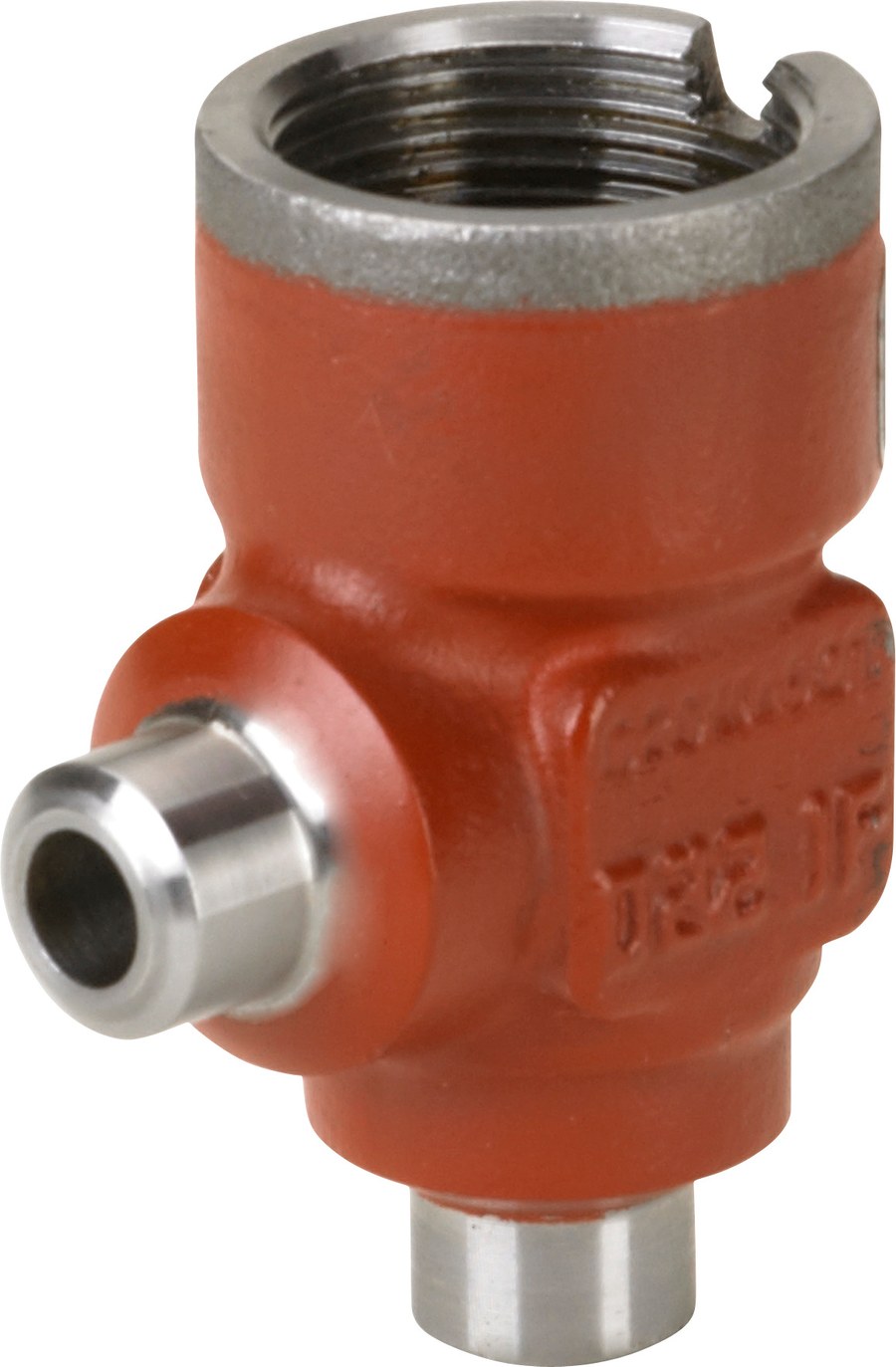

Danfoss SVL 6 Flexline multifunction valve body, 6 mm (1/4 in) angleway, butt weld to ASME B 36.10M Schedule 80, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 6 Flexline multifunction valve body (valve housing), code 148B5004. This is the bare valve housing of the Danfoss SVL/SVA Flexline programme — a distinct service part from the complete valve — to which an SVA-S/SVA-L shut-off, REG regulating, CHV check or other Flexline function module is fitted. Steel body, angleway flow, butt weld to ASME B 36.10M Schedule 80 connections, nominal size 6 mm (1/4 in). The housing is bi-flow with an embossed flow-direction arrow. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For R134a, R404A, R407C, R410A, R507A, R717 (ammonia), R744 (CO2) and other HCFC/HFC/HFO refrigerants. PED Article 4, paragraph 3. CE marked; UKCA marked.
Technical Specifications
- Type
- Danfoss SVL 6 multifunction valve body
- Code number
- 148B5004
- Series
- SVL Flexline (valve housing / multifunction body)
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- ASME B 36.10M Schedule 80
- Nominal size
- 6 mm (1/4 in)
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Flow
- bi-flow (embossed flow-direction arrow)
- Weight
- net 0.165 kg, gross 0.374 kg
- PED
- Article 4, paragraph 3
- Approvals
- CE, UKCA
- EAN
- 5702428484879
- Net weight
- 0.165 Kilogram
- Product group
- Multifunction valves
- Approval
- UKCA
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection material
- Steel
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1/4 in
- Inlet connection size [mm]
- 6 mm
- Inlet connection type
- Butt weld
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 1/4 in
- Outlet connection size [mm]
- 6 mm
- Outlet connection type
- Butt weld
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 6
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 80
- Size / Series
- 6 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
The SVL 6 is the bare valve housing only; order the matching SVA-S/SVA-L, REG or CHV function module (top part) separately to build a complete valve, or use it to replace a corroded housing. Confirm nominal size (6 mm / 1/4 in), flow direction (angleway) and connection (butt weld to ASME B 36.10M Schedule 80) before ordering. SVA and SVL Flexline parts are interchangeable within a size.
