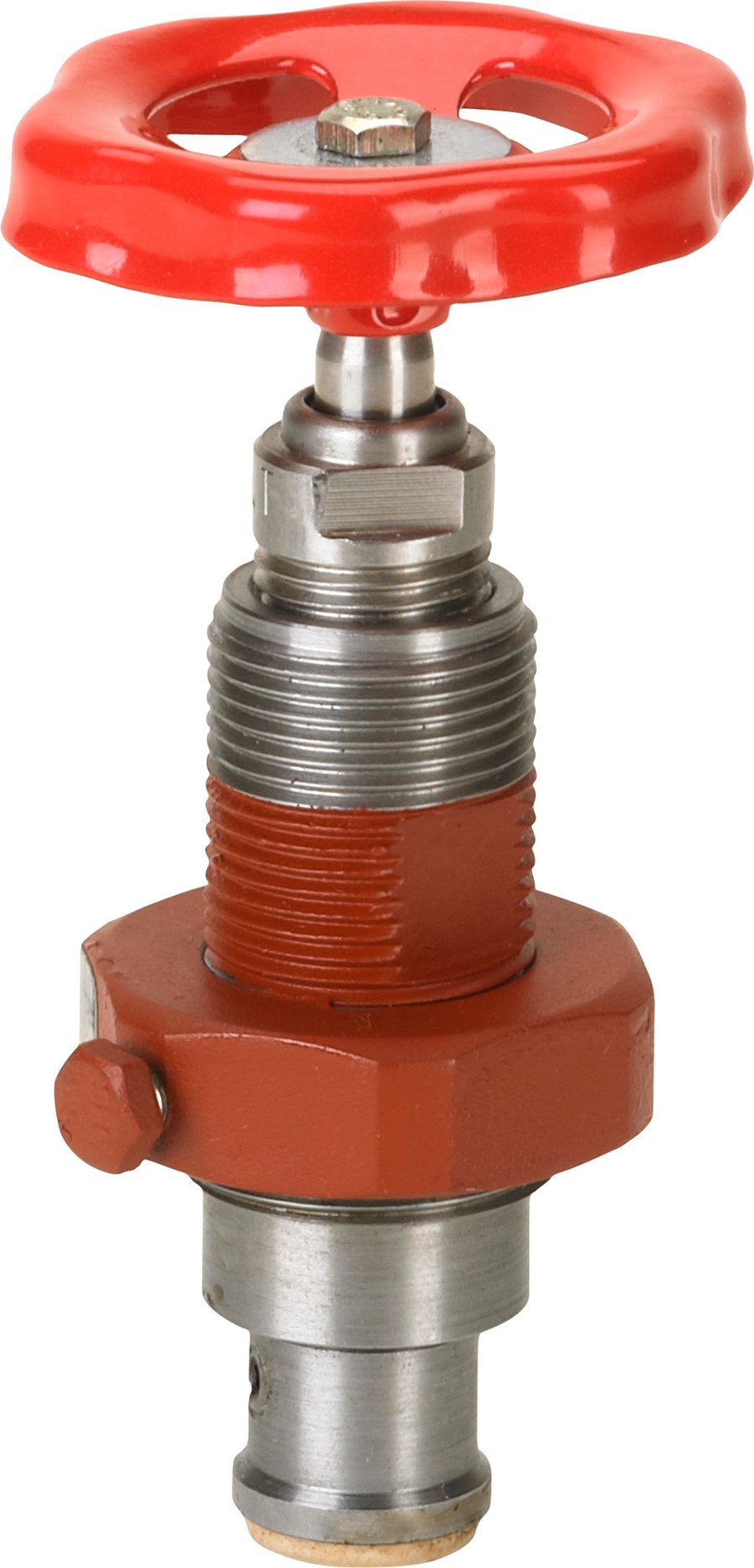

Danfoss SVA-S 6-10 function module (complete top part) with hand wheel, for SVA-S 6 and SVA-S 10, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss function module (complete top part including gaskets and bolts) for SVA-S 6 and SVA-S 10 shut-off valves, code 148B5014, supplied with hand wheel. The function module is the serviceable top part of the SVA/SVL Flexline programme: it is assembled onto an SVL multifunction valve body to make a complete SVA-S shut-off valve, or used as a spare to refurbish an existing valve in the field. Standard neck. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For R134a, R404A, R407C, R410A, R507A, R717 (ammonia), R744 (CO2) and other HCFC/HFC/HFO refrigerants. PED Article 4, paragraph 3.
Technical Specifications
- Type
- Danfoss SVA-S 6-10 function module (top part)
- Code number
- 148B5014
- Operation/equipment
- Hand wheel
- Connection type
- Butt weld
- Size range
- SVA-S 6-10
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Weight
- net 0.194 kg, gross 0.424 kg
- PED
- Article 4, paragraph 3
- Approvals
- CE, EAC
- EAN
- 5702428485883
- Net weight
- 0.194 Kilogram
- Product group
- Shut-off and regulating valves
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Equipment
- Handwheel
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Type designation
- Top Complete
- Used for product
- SVA-S 10
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
This function module fits SVL valve housings of size SVA-S 6 and SVA-S 10 to make a complete shut-off valve, or services an existing valve of those sizes. Confirm the existing housing size and whether hand wheel or the alternative operation is required before ordering.
