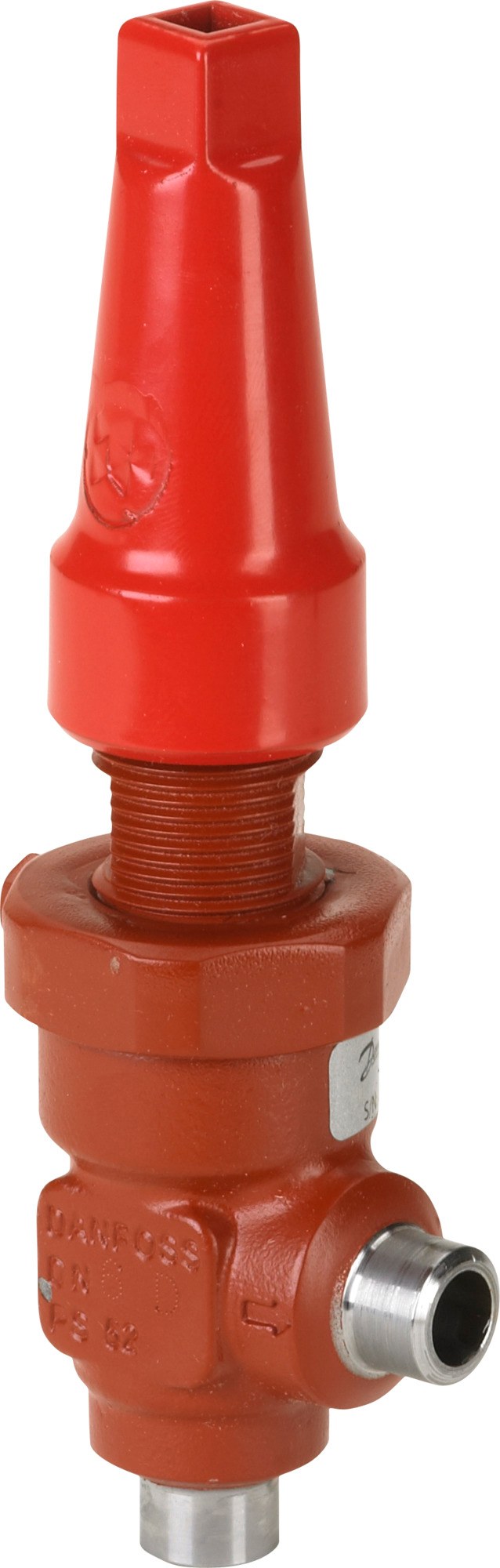

Danfoss SVA-S 6 shut-off (stop) valve, angleway, 6 mm (1/4 in), external thread (G to ISO 228-1), steel, 52 bar, Kv 2.5 M3/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 6 angleway shut-off (stop) valve for industrial refrigeration, code 148B5032. Steel body with external thread (G to ISO 228-1) connections, nominal size 6 mm (1/4 in). The SVA-S is a manually operated bi-flow stop valve with a standard bonnet length; it has internal backseating that allows the spindle seal to be replaced while the valve remains under pressure, and a PTFE seat for tight shut-off. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 2.5 m3/h. For R134a, R404A, R407C, R410A, R507A, R717 (ammonia), R744 (CO2) and other HCFC/HFC/HFO refrigerants. PED Article 4, paragraph 3. CE marked and EAC certified.
Technical Specifications
- Type
- Danfoss SVA-S 6 shut-off (stop) valve
- Code number
- 148B5032
- Series
- SVA-S (standard bonnet length, Flexline)
- Connection type
- external thread (G to ISO 228-1)
- Connection standard
- ISO 228-1
- Nominal size
- 6 mm (1/4 in)
- Flow
- angleway
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 2.5 m3/h
- Weight
- net 0.45 kg, gross 0.642 kg
- PED
- PED Article 4, paragraph 3
- Approvals
- CE, EAC
- EAN
- 5702428470872
- Net weight
- 0.45 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- EAC
- CE mark
- Yes
- China RoHS compliance
- Yes with exemptions
- China RoHS exemption clause
- 7.1
- Colour Paint
- Reddish brown
- Connection Internal/External
- External
- Connection material
- Steel
- Cv value [gal/min]
- 2.9 gal/min
- Direction
- Angleway
- Equipment
- Cap
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(a)
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1/2 A
- Inlet connection size [mm]
- 6 mm
- Inlet connection type
- G
- Kv value [m³/h]
- 2.5 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- Outlet connection size [in]
- 1/2 A
- Outlet connection size [mm]
- 6 mm
- Outlet connection type
- G
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ISO 228-1
- Size / Series
- 6 mm
- Material
- Steel
- Thread Standard
- ISO 228-1
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVA-S 6 is a manual stop valve for industrial refrigeration lines. Confirm nominal size (6 mm / 1/4 in), connection (external thread (G to ISO 228-1)), flow direction (angleway) and operation (cap vs hand wheel) before ordering. SVA-S uses a standard bonnet length; SVA-L is the long-bonnet, insulation-friendly variant. Function module and valve housing are available separately as service parts.
