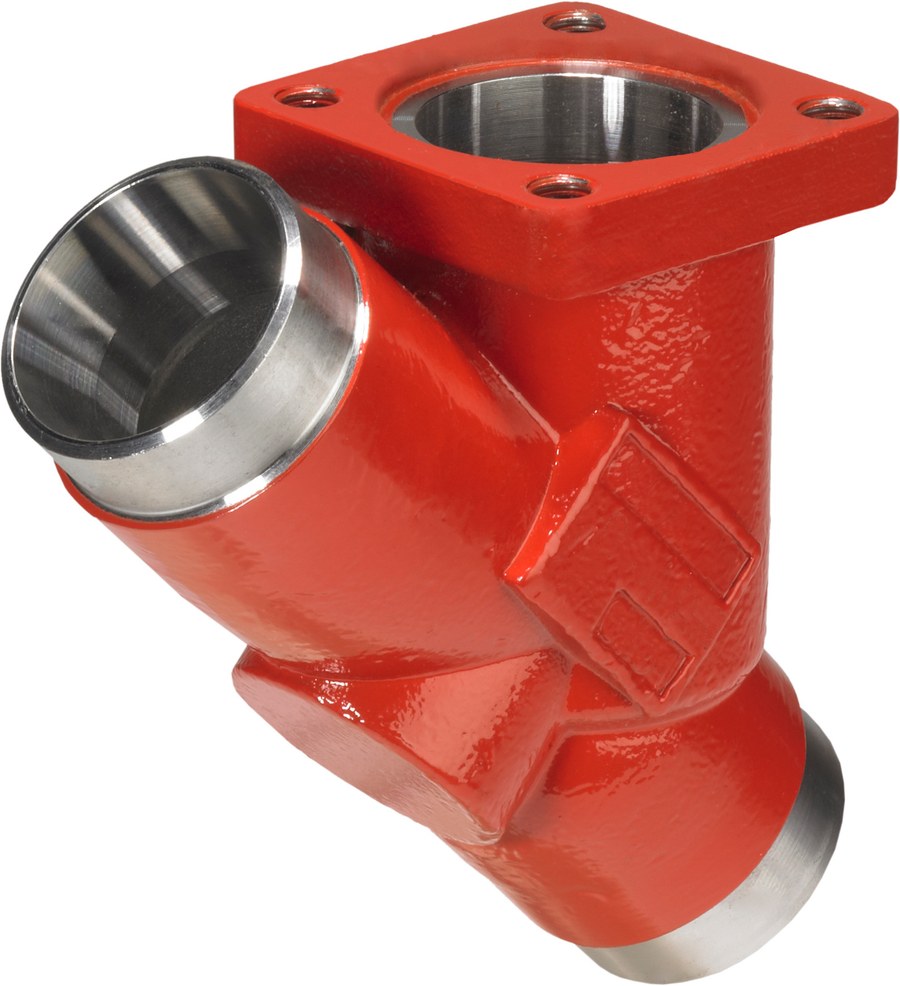

Danfoss SVL 32 multifunction valve body, straightway, 32 mm (1 1/4 in) butt weld EN 10220, steel, 52 bar (code 148B5577)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVL 32 multifunction valve body (valve housing) for the SVL Flexline modular industrial-refrigeration valve platform, store code 148B5577, straightway steel body with butt-weld connections to EN 10220. The SVL housing is welded permanently into the pipe line and then accepts the SVL Flexline function modules — SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check/stop and FIA strainer function tops — so the function can be changed or serviced without re-welding. This is the bare body only; the function module and top are ordered separately. Nominal size 32 mm (1 1/4 in). Maximum working pressure 52 bar (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II (DN 32). Specifications per Danfoss store code 148B5577.
Specifications
- Part number
- 148B5577
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 32 mm
Compatibility
Danfoss SVL Flexline 32 valve body. Combine with the required SVL Flexline function module and top (SVA-S/SVA-L shut-off, REG-SA/REG-SB regulating, SCA-X/CHV-X check/stop or FIA strainer). Match nominal size (32 mm (1 1/4 in)), flow direction (straightway) and connection standard (EN 10220) to the line.
Standards
Approvals
