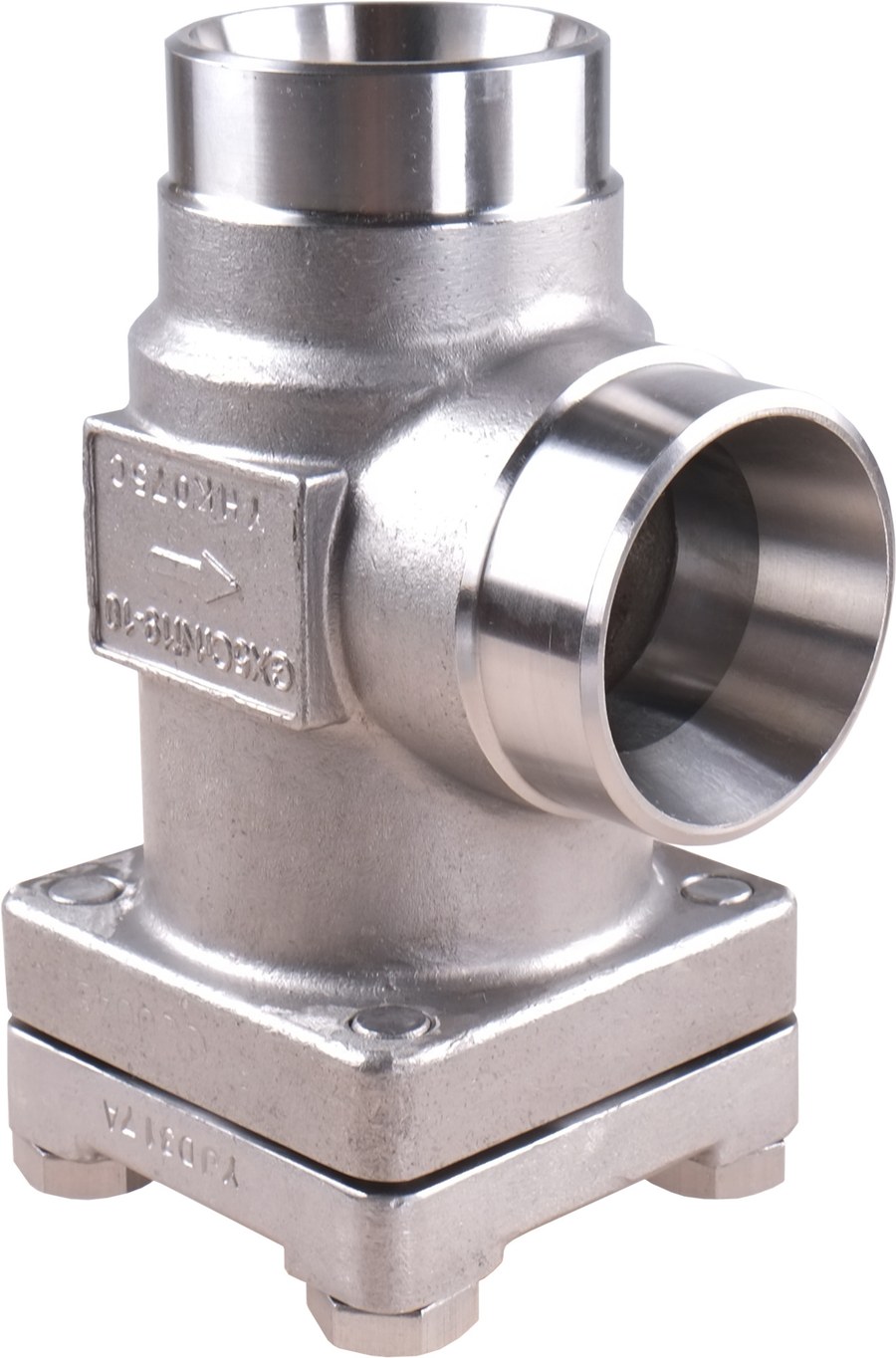

Danfoss FIA SS 32 angleway strainer housing, 32 mm (1 1/4 in) butt weld EN 10220, stainless steel, 52 bar (code 148B5587)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA SS 32 strainer (filter) housing for the SVL Flexline industrial-refrigeration range, store code 148B5587, angleway stainless steel body. The FIA holds a replaceable strainer insert that protects downstream components from dirt and weld slag during commissioning and operation; the insert is exchanged through a bolted cover. Nominal size 32 mm (1 1/4 in), butt weld connections to EN 10220. Stainless steel housing for R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar (754 psig); media temperature -60 to 150 C (-76 to 302 F). With the µ100 plain insert the flow coefficient Kv is about 23 m3/h. The FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) is ordered separately. Conformity assessment PED 2014/68/EU, Category II (DN 32). Specifications per Danfoss store code 148B5587.
Specifications
- Part number
- 148B5587
- HS code
- 8421.39
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 32 mm
Compatibility
Danfoss SVL Flexline FIA SS 32 strainer housing. Pair with a FIA INS strainer insert in the required micron rating (38/72/100/150/250/500, plain or pleated). EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off valves and REG regulating valves of the same nominal size.
Standards
Approvals
