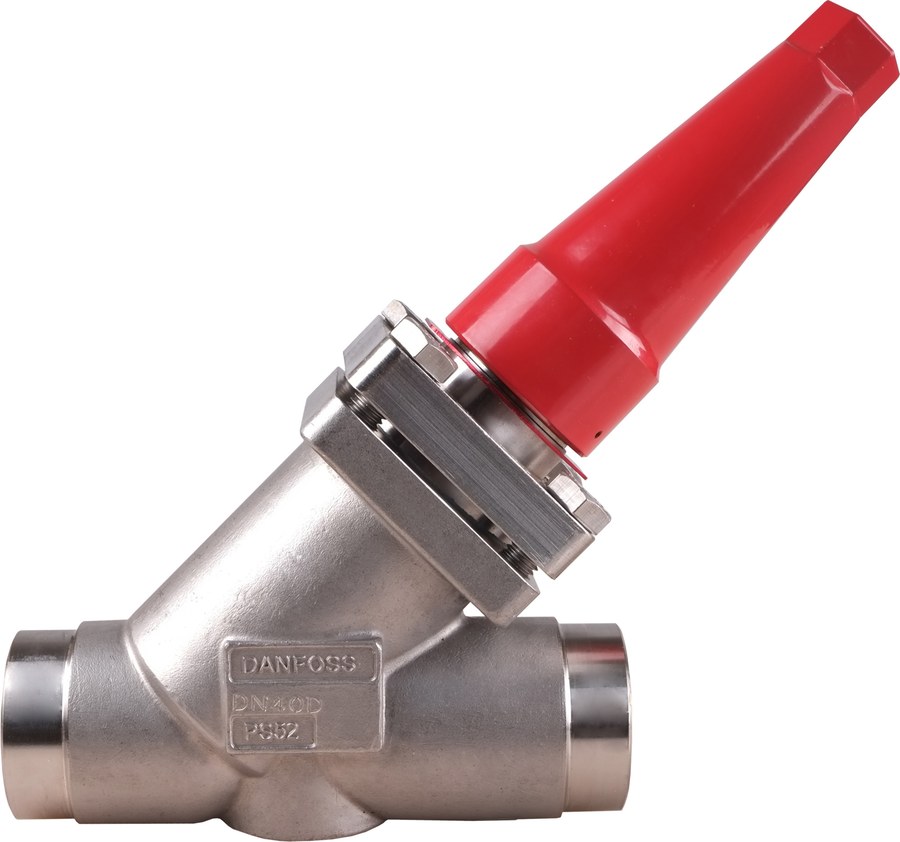

Danfoss SVA-S SS 32 straightway shut-off valve, cap, 32 mm (1 1/4 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar (code 148B5596)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S SS 32 hand-operated shut-off (stop) valve, store code 148B5596, straightway stainless steel body fitted with a cap. The SVA-S is a shut-off valve in the Danfoss SVL Flexline range for industrial refrigeration, used to isolate liquid, suction, hot-gas and oil lines. The globe-pattern body uses a back-seating spindle so the packing can be serviced while the plant stays in operation, and the seal cap gives double sealing to atmosphere; shut-off is bi-directional (bi-flow). Applicable to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 32 mm (1 1/4 in), butt weld connections to ASME B 36.19M Schedule 40; flow coefficient Kv 29.8 m3/h (Cv 34.45 gal/min). Stainless steel housing. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II (DN 32). Specifications per Danfoss store code 148B5596.
Specifications
- Part number
- 148B5596
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.19M Schedule 40
- Standard size
- 32 mm
Compatibility
Danfoss SVL Flexline SVA-S SS 32. SVA-S is the standard neck; SVA-L is the long-neck version. Select by flow direction (straightway), connection (ASME B 36.19M Schedule 40) and top (cap). EN 10220 and ASME weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering. Shares the SVL Flexline platform with REG-SA/REG-SB regulating valves, SCA-X/CHV-X check valves and FIA strainers of the same nominal size.
Standards
- ASME B 36.19M Schedule 40
- PED 2014/68/EU
Approvals
