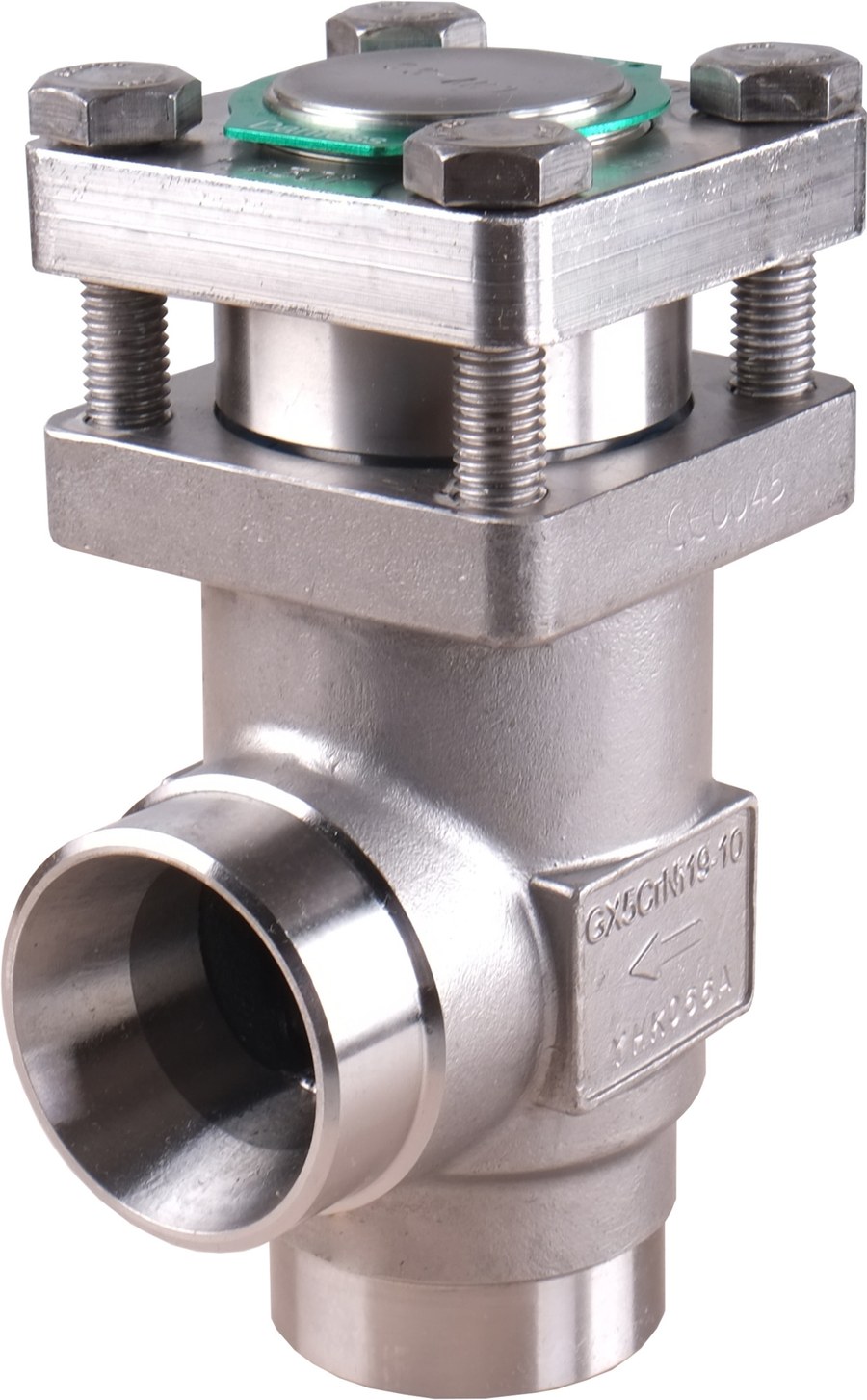

Danfoss CHV-X SS 32 angleway check valve, 32 mm (1 1/4 in) butt weld EN 10220, stainless steel, 52 bar

Danfoss CHV-X SS 32 check valve for the SVL Flexline industrial-refrigeration range, store code 148B5586, angleway stainless steel body. The CHV-X is a spring-loaded check (non-return) valve that allows flow in one direction and closes on reverse flow, protecting compressors and pumps against back-flow. Nominal size 32 mm (1 1/4 in), butt weld connections to EN 10220; flow coefficient Kv 30 m3/h. Stainless steel housing for R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II (DN 32). Specifications per Danfoss store code 148B5586.

Type

CHV-X SS 32 check valve (SVL Flexline) Code number: 148B5586 Nominal size: 32 mm (1 1/4 in) Flow direction body: Angleway Connection: butt weld both ends, EN 10220 Function: check / non-return Flow coefficient Kv: 30 m3/h minimum opening pressure: 0.04 bar Housing material: stainless steel Maximum working pressure: 52 bar (754 psig) Media temperature range: -60 to 150 C (-76 to 302 F) Applicable media: R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils Conformity assessment: PED 2014/68/EU, Category II (DN 32) Approvals: CE EAN: 5702428842754 Net weight: 2.572 Kilogram Product group: Check valves Approval: CE CE mark: Yes China RoHS compliance: Yes Colour Paint: Reddish brown Connection Code: (2501:D26:32) Connection material: Stainless steel Connection size [in]: 1 1/4 in Connection size [mm]: 32 mm Connection standard: EN 10220 Connection type: Butt weld Cv value [gal/min]: 34.8 gal/min Direction: Angleway EU RoHS compliance: Yes Flow direction indicator: Embossed 1-way arrow Fluid Group: 1 Kv value [m³/h]: 30 m³/h Max. Working Pressure [bar]: 52 bar Max. Working Pressure [psig]: 754 psig MinODP [bar]: 0.04 bar MinODP [psi]: 0.62 psi PED category: II REACH Candidate List substances: No Refrigerants: R134a Temperature range [°C] [max]: 150 °C Temperature range [°C] [min]: -60 °C Temperature range [°F] [max]: 302 °F Temperature range [°F] [min]: -76 °F

Standard

EN 10220

Size / Series

32 mm

Material

Stainless steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.30
