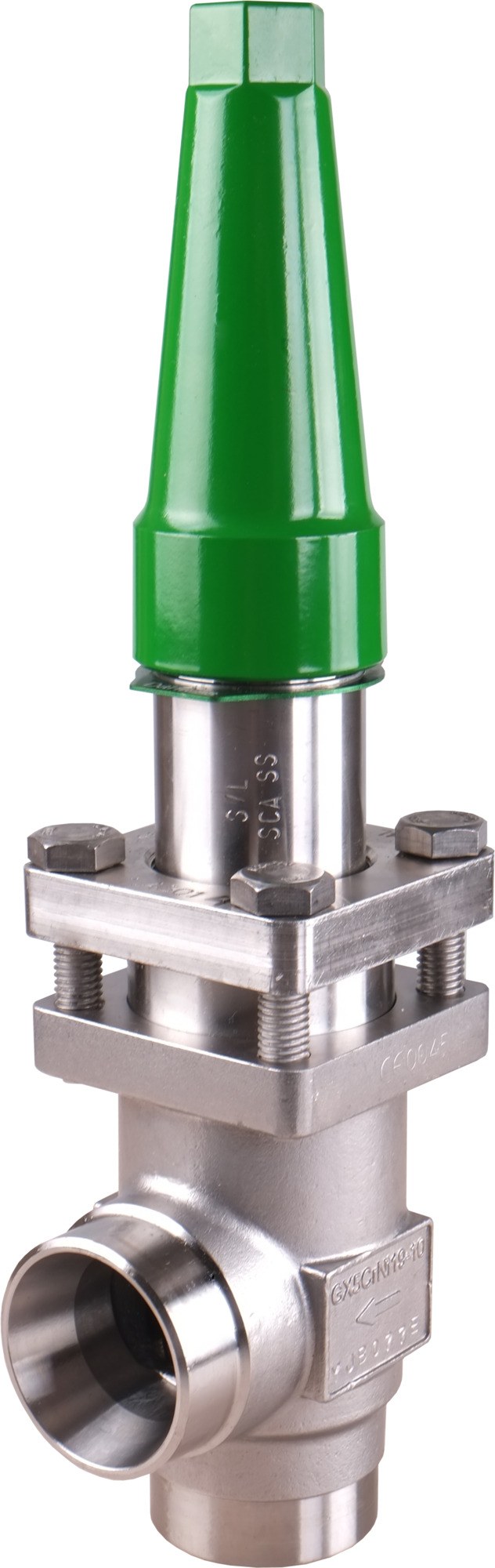

Danfoss SCA-X SS 32 angleway check and stop valve, 32 mm (1 1/4 in) butt weld EN 10220, stainless steel, 52 bar (code 148B5585)
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss SCA-X SS 32 check and stop valve for the SVL Flexline industrial-refrigeration range, store code 148B5585, angleway stainless steel body. The SCA-X combines a check (non-return) function with a hand shut-off (stop) function in one body, fitted with a cap; it allows flow one way, closes on reverse flow and can be manually closed for isolation and service. Nominal size 32 mm (1 1/4 in), butt weld connections to EN 10220; flow coefficient Kv 30 m3/h. Stainless steel housing for R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II (DN 32). Specifications per Danfoss store code 148B5585.
Specifications
- Part number
- 148B5585
- HS code
- 8481.30
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 32 mm
Compatibility
Danfoss SVL Flexline SCA-X SS 32. SCA-X adds a manual stop to the check function. Select by flow direction (angleway) and connection (EN 10220). Shares the SVL Flexline platform with SVA-S/SVA-L shut-off valves, REG regulating valves and FIA strainers of the same nominal size.
Standards
Approvals
