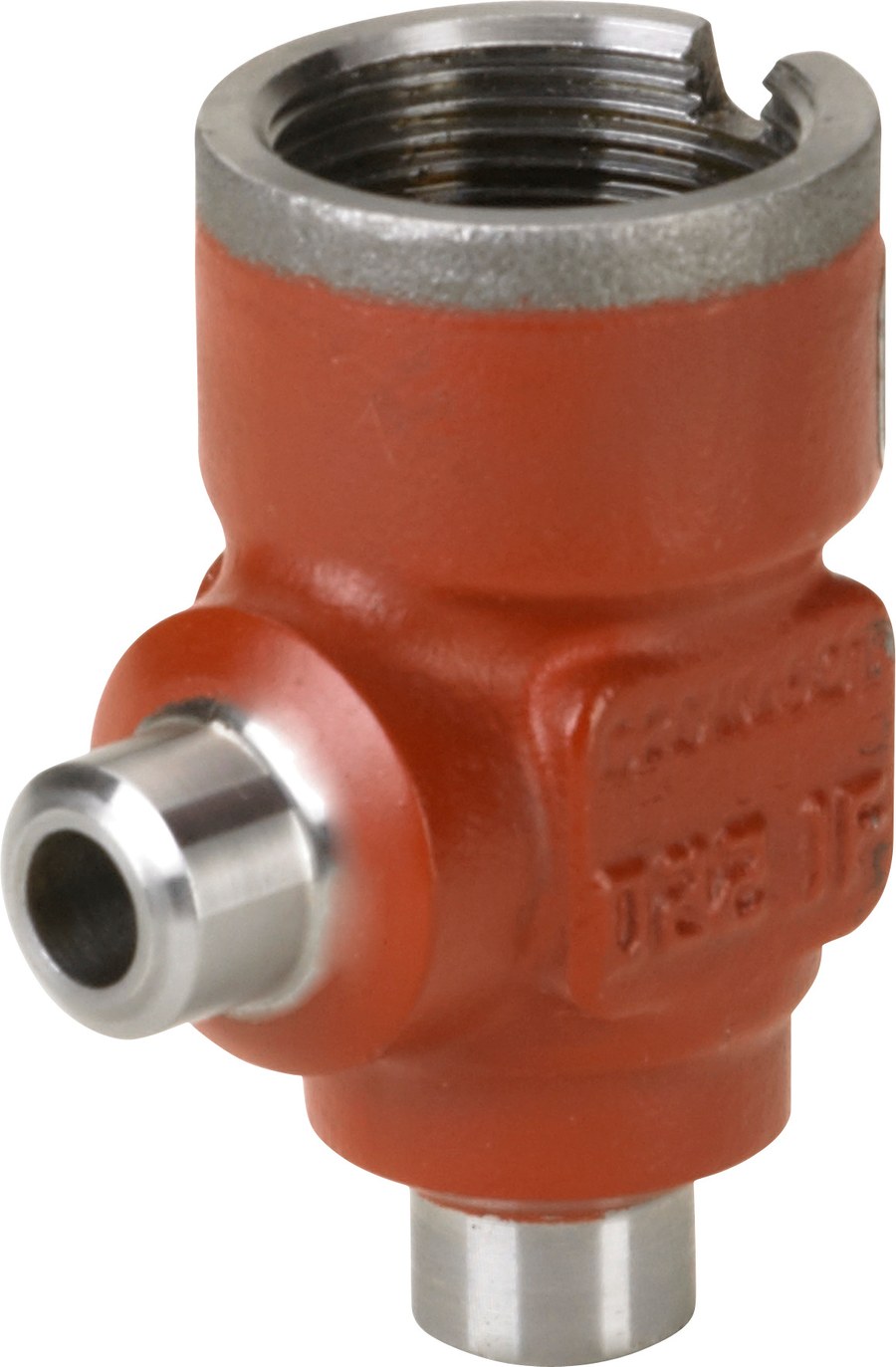

Danfoss SVL Flexline multifunction valve body, SVL 10 angleway butt weld to EN 10220, 10 mm (3/8 in), 52 bar, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 10 multifunction valve body (bare valve housing), code 148B5122. Angleway steel housing with butt weld to EN 10220 connections, nominal size 10 mm (3/8 in). The SVL Flexline housing accepts SVA-S/SVA-L stop, REG-SA/REG-SB regulating and other Flexline function modules so one valve body can be configured for different duties and serviced without re-welding. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For R134a, R404A, R410A, R507A, R717 (ammonia), R744 (CO2) and other HCFC/HFC/HFO refrigerants. CE marked. Top part / function module ordered separately.
Technical Specifications
- Type
- Danfoss SVL 10 multifunction valve body (valve housing only)
- Code number
- 148B5122
- Series
- SVL Flexline
- Connection type
- butt weld
- Connection standard
- EN 10220
- Nominal size
- 10 mm (3/8 in)
- Flow
- angleway
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Weight
- net 0.2 kg, gross 0.358 kg
- Approvals
- CE, UKCA
- EAN
- 5702428485241
- Net weight
- 0.2 Kilogram
- Product group
- Multifunction valves
- Approval
- UKCA
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection material
- Steel
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 3/8 in
- Inlet connection size [mm]
- 10 mm
- Inlet connection type
- Butt weld
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 3/8 in
- Outlet connection size [mm]
- 10 mm
- Outlet connection type
- Butt weld
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 10
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 10 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline multifunction valve body, 10 mm. Combine with an SVA-S/SVA-L, REG-SA/REG-SB or other Flexline function module to build a complete valve. Confirm flow direction (angleway) and connection standard (EN 10220) before ordering.
