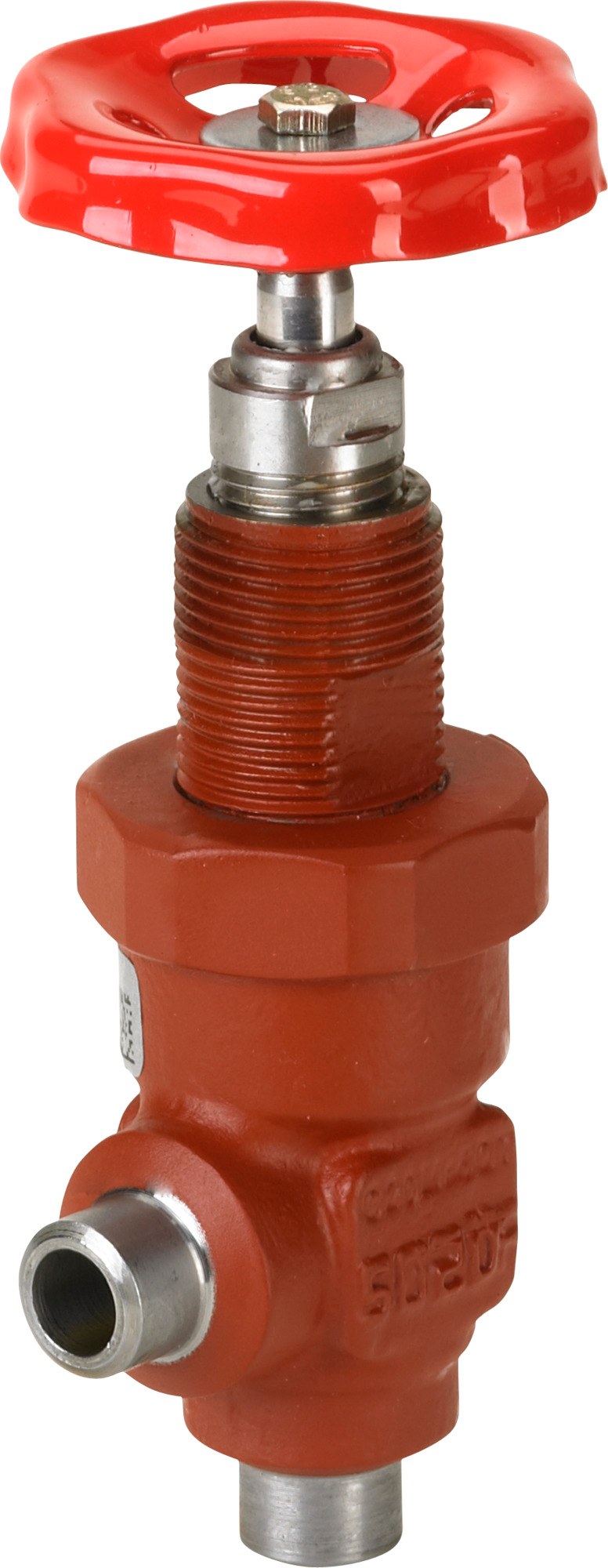

Danfoss SVA-S 10 angleway shut-off valve, handwheel, 10 mm (3/8 in) butt weld ASME B 36.10M Schedule 80, steel, 52 bar (code 148B5120)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 10 hand-operated shut-off valve, store code 148B5120, angleway body with a handwheel. SVA-S is a straightway or angleway hand-operated shut-off valve in the Danfoss SVL Flexline range for industrial refrigeration. The standard (S) bonnet version uses a back-seating spindle so the packing can be replaced while the plant is in operation. The valve body and bonnet are made of special cold-resistant steel; the seat is fully interchangeable and the valve gives bi-directional (bi-flow) tight shut-off. A cap or a hand-wheel can be fitted, and the seal cap and spindle packing provide double sealing against the atmosphere. Applicable to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); working temperature range -60 to 150 C (-76 to 302 F). Conformity assessment per the Pressure Equipment Directive 2014/68/EU, Article 4, paragraph 3 (sound engineering practice), fluid group 1. This code is nominal size DN 10 (3/8 in) with butt weld connections to ASME B 36.10M Schedule 80; flow coefficient Kv 4.5 m3/h (Cv 5.2). Bi-directional shut-off. Net weight 0.45 kg. Specifications per Danfoss store code 148B5120.
Specifications
- Part number
- 148B5120
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.10M Schedule 80
- Standard size
- 10 mm
Compatibility
Danfoss SVL Flexline SVA-S 10. The standard (S) bonnet allows packing replacement during operation. Shares the SVL Flexline footprint with REG regulating valves, SCA-X check/stop valves and CHV check valves of the same nominal size. Select by nominal size DN 10, connection (ASME B 36.10M Schedule 80), body direction (angleway) and top (handwheel).
Standards
- ASME B 36.10M Schedule 80
- PED 2014/68/EU
Approvals
