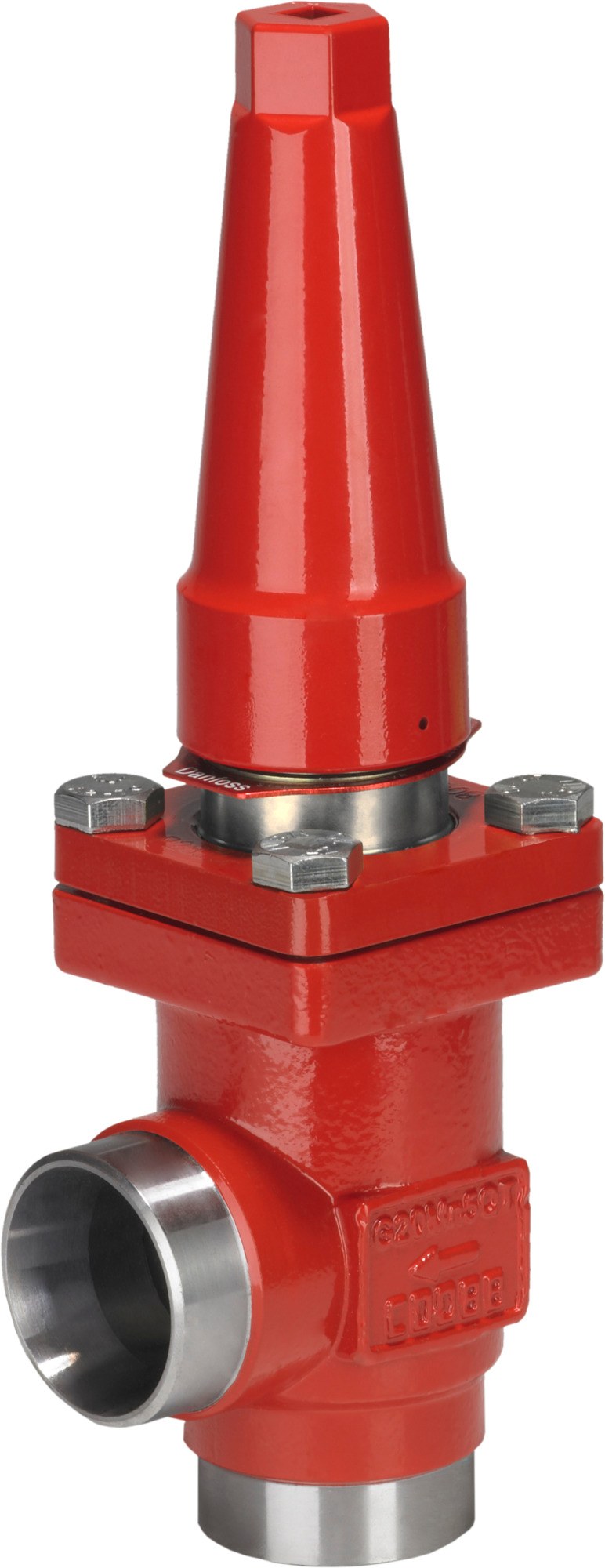

Danfoss SVA-S 15 angleway shut-off valve, cap, 15 mm (1/2 in) butt weld EN 10220, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S 15 hand-operated shut-off valve, store code 148B5201, angleway body with a cap. SVA-S is a straightway or angleway hand-operated shut-off valve in the Danfoss SVL Flexline range for industrial refrigeration. The standard (S) bonnet version uses a back-seating spindle so the packing can be replaced while the plant is in operation. The valve body and bonnet are made of special cold-resistant steel; the seat is fully interchangeable and the valve gives bi-directional (bi-flow) tight shut-off. A cap or a hand-wheel can be fitted, and the seal cap and spindle packing provide double sealing against the atmosphere. Applicable to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); working temperature range -60 to 150 C (-76 to 302 F). Conformity assessment per the Pressure Equipment Directive 2014/68/EU, Article 4, paragraph 3 (sound engineering practice), fluid group 1. This code is nominal size DN 15 (1/2 in) with butt weld connections to EN 10220; flow coefficient Kv 7 m3/h (Cv 8.12). Bi-directional shut-off. Net weight 1.55 kg. Specifications per Danfoss store code 148B5201.
Technical Specifications
- Type
- SVA-S 15 hand-operated shut-off valve (SVL Flexline, standard bonnet)
- Code number
- 148B5201
- Nominal size
- DN 15 (1/2 in)
- Connection
- butt weld both ends, EN 10220
- Direction
- Angleway
- Flow
- bi-directional (bi-flow)
- Top equipment
- Cap
- Flow coefficient Kv
- 7 m3/h (Cv 8.12 gal/min)
- Max working pressure
- 52 bar g (754 psig)
- Working temperature range
- -60 to 150 C (-76 to 302 F)
- Body / bonnet material
- special cold-resistant steel
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Conformity
- PED 2014/68/EU, Article 4 paragraph 3, fluid group 1; CE marked
- Approvals
- CE, EAC
- Net weight
- 1.55 kg
- Gross weight
- 1.994 kg
- EAN
- 5702428466950
- Product group
- Shut-off and regulating valves
- Approval
- EAC
- Body material
- Steel
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2001:D23:15)
- Connection material
- Steel
- Connection standard
- EN 10220
- Cv value [gal/min]
- 8.12 gal/min
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1/2 in
- Inlet connection size [mm]
- 15 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 7 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- Outlet connection size [in]
- 1/2 in
- Outlet connection size [mm]
- 15 mm
- Outlet connection type
- Butt weld
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 15 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-S 15. The standard (S) bonnet allows packing replacement during operation. Shares the SVL Flexline footprint with REG regulating valves, SCA-X check/stop valves and CHV check valves of the same nominal size. Select by nominal size DN 15, connection (EN 10220), body direction (angleway) and top (cap).
