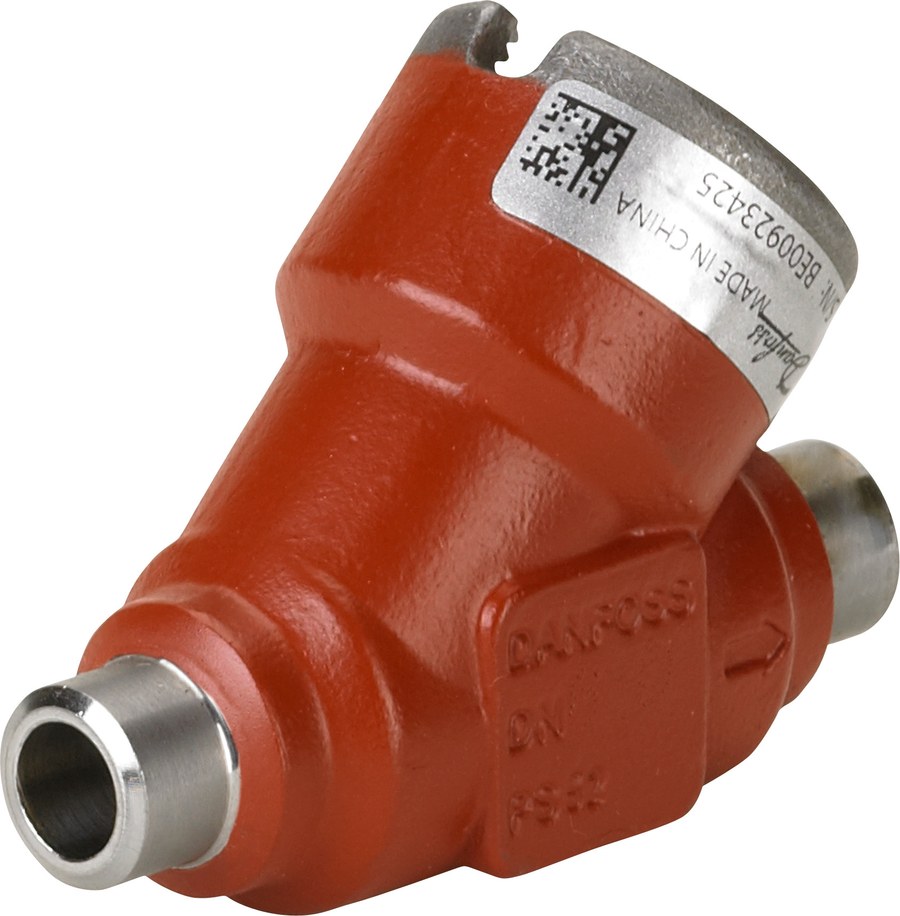

Danfoss SVL Flexline multifunction valve body, SVL 10 straightway butt weld to EN 10220, 10 mm (3/8 in), 52 bar, steel (code 148B5123)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVL 10 multifunction valve body (bare valve housing), code 148B5123. Straightway steel housing with butt weld to EN 10220 connections, nominal size 10 mm (3/8 in). The SVL Flexline housing accepts SVA-S/SVA-L stop, REG-SA/REG-SB regulating and other Flexline function modules so one valve body can be configured for different duties and serviced without re-welding. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For R134a, R404A, R410A, R507A, R717 (ammonia), R744 (CO2) and other HCFC/HFC/HFO refrigerants. CE marked. Top part / function module ordered separately.
Specifications
- Part number
- 148B5123
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 10 mm
Compatibility
Danfoss SVL Flexline multifunction valve body, 10 mm. Combine with an SVA-S/SVA-L, REG-SA/REG-SB or other Flexline function module to build a complete valve. Confirm flow direction (straightway) and connection standard (EN 10220) before ordering.
Approvals
