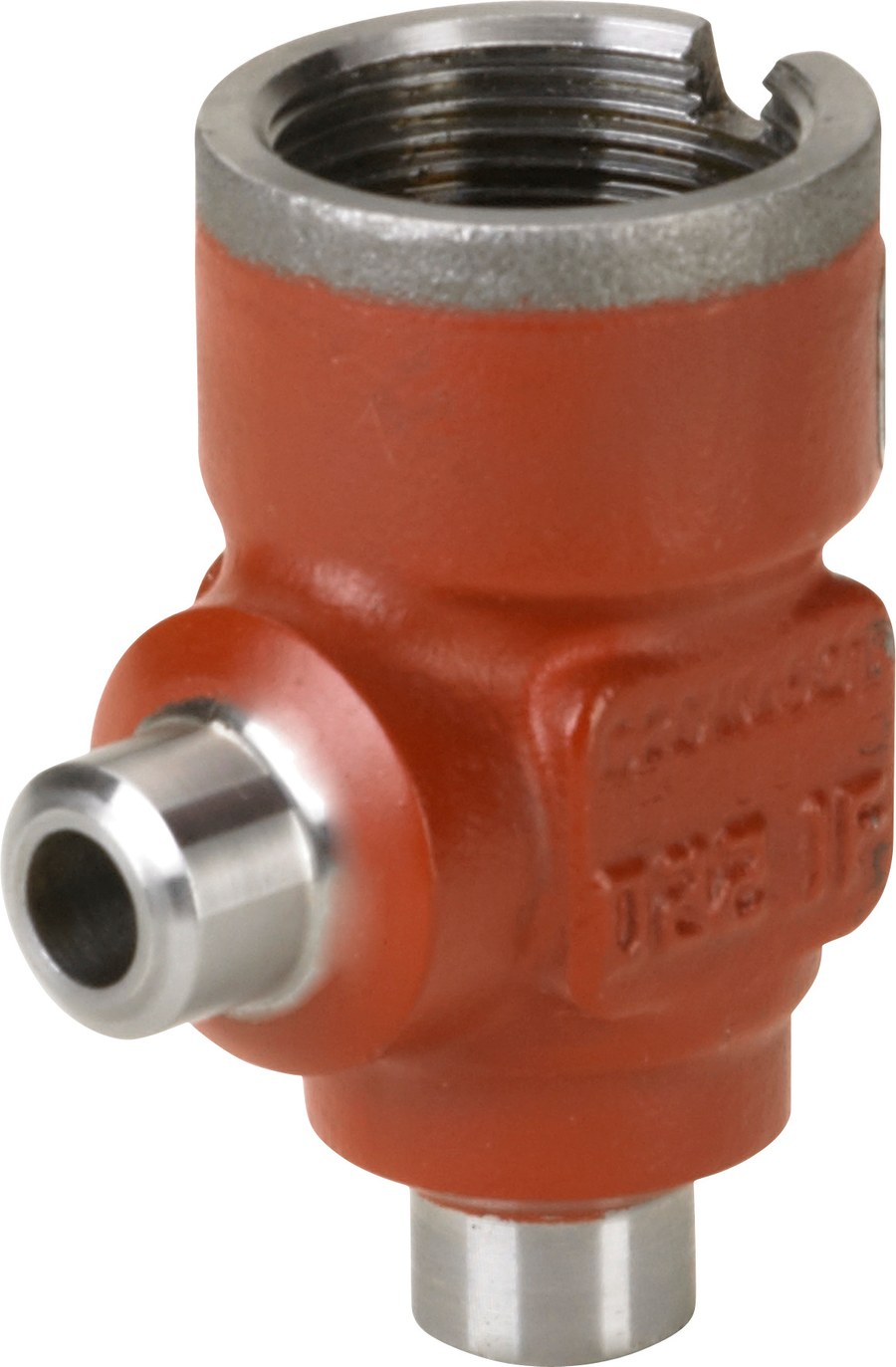

Danfoss SVL Flexline multifunction valve body, SVL 10 angleway butt weld to ASME B 36.10M Schedule 80, 10 mm (3/8 in), 52 bar, steel
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVL 10 multifunction valve body (bare valve housing), code 148B5124. Angleway steel housing with butt weld to ASME B 36.10M Schedule 80 connections, nominal size 10 mm (3/8 in). The SVL Flexline housing accepts SVA-S/SVA-L stop, REG-SA/REG-SB regulating and other Flexline function modules so one valve body can be configured for different duties and serviced without re-welding. Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). For R134a, R404A, R410A, R507A, R717 (ammonia), R744 (CO2) and other HCFC/HFC/HFO refrigerants. CE marked. Top part / function module ordered separately.
Technical Specifications
- Type
- Danfoss SVL 10 multifunction valve body (valve housing only)
- Code number
- 148B5124
- Series
- SVL Flexline
- Connection type
- butt weld
- Connection standard
- ASME B 36.10M Schedule 80
- Nominal size
- 10 mm (3/8 in)
- Flow
- angleway
- Body material
- Steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Weight
- net 0.172 kg, gross 0.392 kg
- Approvals
- CE, UKCA
- EAN
- 5702428485265
- Net weight
- 0.172 Kilogram
- Product group
- Multifunction valves
- Approval
- UKCA
- CE mark
- Yes
- China RoHS compliance
- Yes
- Connection material
- Steel
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Flow direction
- Bi-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 3/8 in
- Inlet connection size [mm]
- 10 mm
- Inlet connection type
- Butt weld
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 3/8 in
- Outlet connection size [mm]
- 10 mm
- Outlet connection type
- Butt weld
- PED category
- Art. 4, par. 3
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- SVL 10
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 80
- Size / Series
- 10 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline multifunction valve body, 10 mm. Combine with an SVA-S/SVA-L, REG-SA/REG-SB or other Flexline function module to build a complete valve. Confirm flow direction (angleway) and connection standard (ASME B 36.10M Schedule 80) before ordering.
