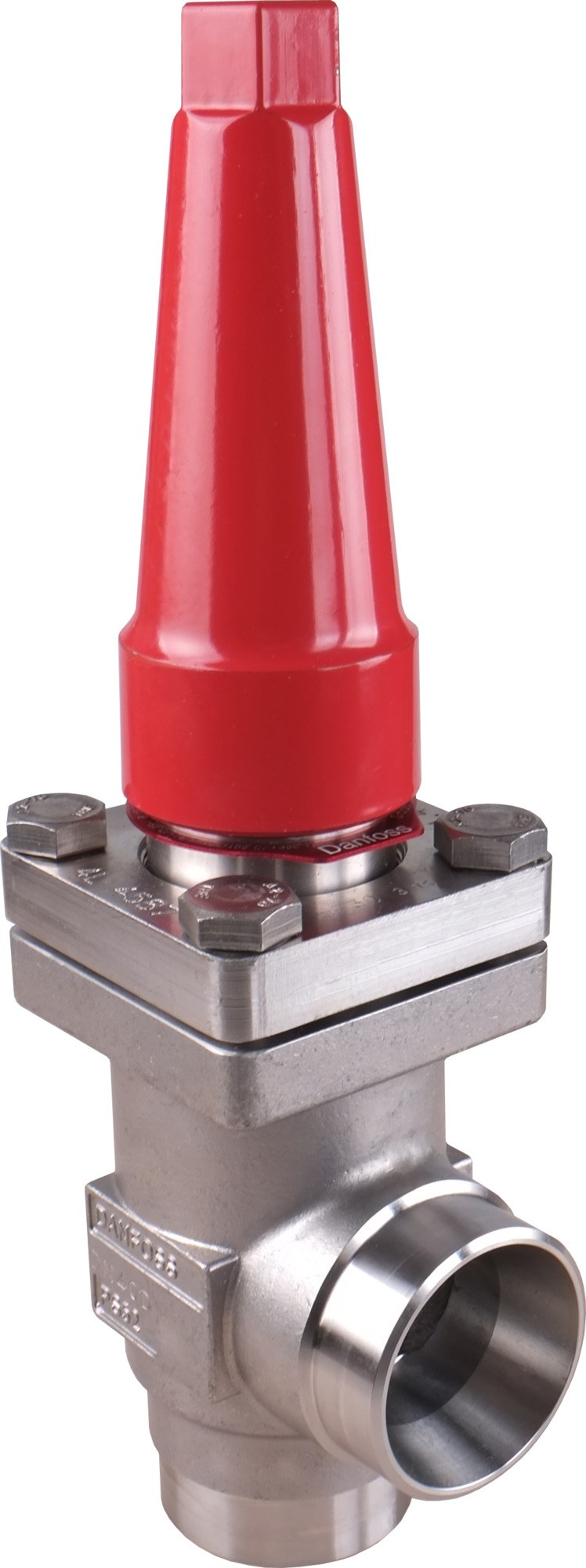

Danfoss SVA-S SS 65 shut-off (stop) valve, 65 mm (2 1/2 in) butt weld EN 10220, stainless steel, 52 bar (code 148B5848)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SVA-S SS 65 shut-off (stop) valve for the SVL Flexline industrial-refrigeration range, store code 148B5848. Stainless steel angleway body with butt-weld connections both ends to EN 10220, giving manual shut-off (isolation) of liquid, suction, hot-gas and oil lines. Nominal size 65 mm (2 1/2 in); flow coefficient Kv 120 m3/h (140 gal/min Cv). Operated by cap; Angleway, bi-flow (bidirectional). Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 5.3 kg, gross weight 6.422 kg. Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5848.
Technical Specifications
- Type
- SVA-S SS 65 shut-off (stop) valve
- Code number
- 148B5848
- Nominal size
- 65 mm (2 1/2 in)
- Connection
- butt weld both ends, EN 10220
- Body material
- Stainless steel
- Flow direction
- Angleway, bi-flow (bidirectional)
- Equipment
- Cap
- Flow coefficient
- Kv 120 m3/h (140 gal/min Cv)
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Weight
- net weight 5.3 kg, gross weight 6.422 kg
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE, EAC
- EAN
- 5702428843348
- Net weight
- 5.3 Kilogram
- Product group
- Shut-off and regulating valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2501:D29:65)
- Connection material
- Stainless steel
- Connection standard
- EN 10220
- Cv value [gal/min]
- 140 gal/min
- Direction
- Angleway
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 2 1/2 in
- Inlet connection size [mm]
- 65 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 120 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Neck
- Standard
- Outlet connection size [in]
- 2 1/2 in
- Outlet connection size [mm]
- 65 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 65 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.80
Compatibility & Fitment
Danfoss SVL Flexline SVA-S SS 65 valve. Butt-weld EN 10220 ends — confirm the mating pipe schedule before ordering. Serviceable with the matching SVA-S SS 65 function module (Top Complete) and gasket/spindle spares. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same nominal size.
