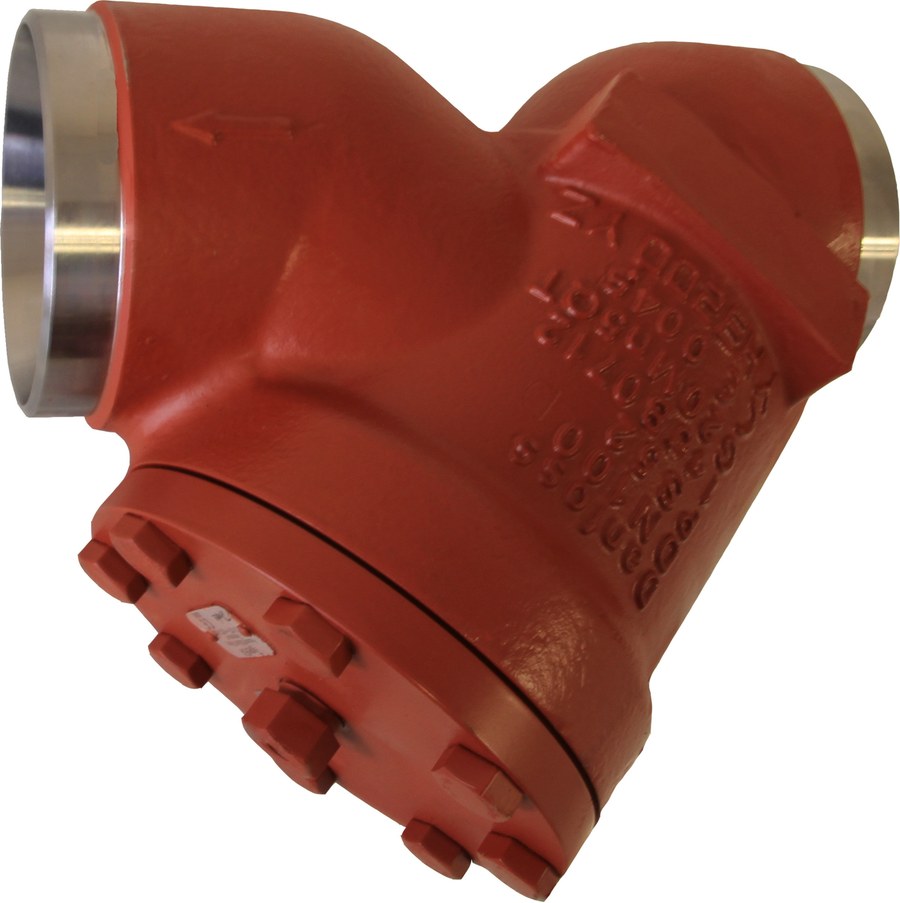

Danfoss FIA 80 straightway strainer housing, 80 mm (3 in) butt weld EN 10220, steel, 52 bar (code 148B5906)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA 80 strainer housing for the SVL Flexline industrial-refrigeration range, store code 148B5906. Steel straightway body with butt-weld connections both ends to EN 10220 and a bolt-on cover. The FIA is an in-line strainer that protects downstream valves, pumps and compressors from pipe scale and weld debris; this is the pressure-containing housing (with cover) that takes a replaceable FIA INS strainer insert — available in 38, 72, 100, 150, 250 and 500 micron, plain or pleated (ordered separately). Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 80 mm (3 in); flow coefficient Kv 80.0 (µ150 plain) to 113.1 m3/h (µ500 plain). Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 7.65 kg, gross weight 10.44 kg. Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5906.
Specifications
- Part number
- 148B5906
- HS code
- 8421.39
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 80 mm
Compatibility
Danfoss SVL Flexline FIA 80 strainer housing. Order the required FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) and the FIA 80 function module (Top Complete cover) separately. Butt-weld EN 10220 ends — confirm the mating pipe schedule before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and SCA-X/CHV-X check valves of the same nominal size.
