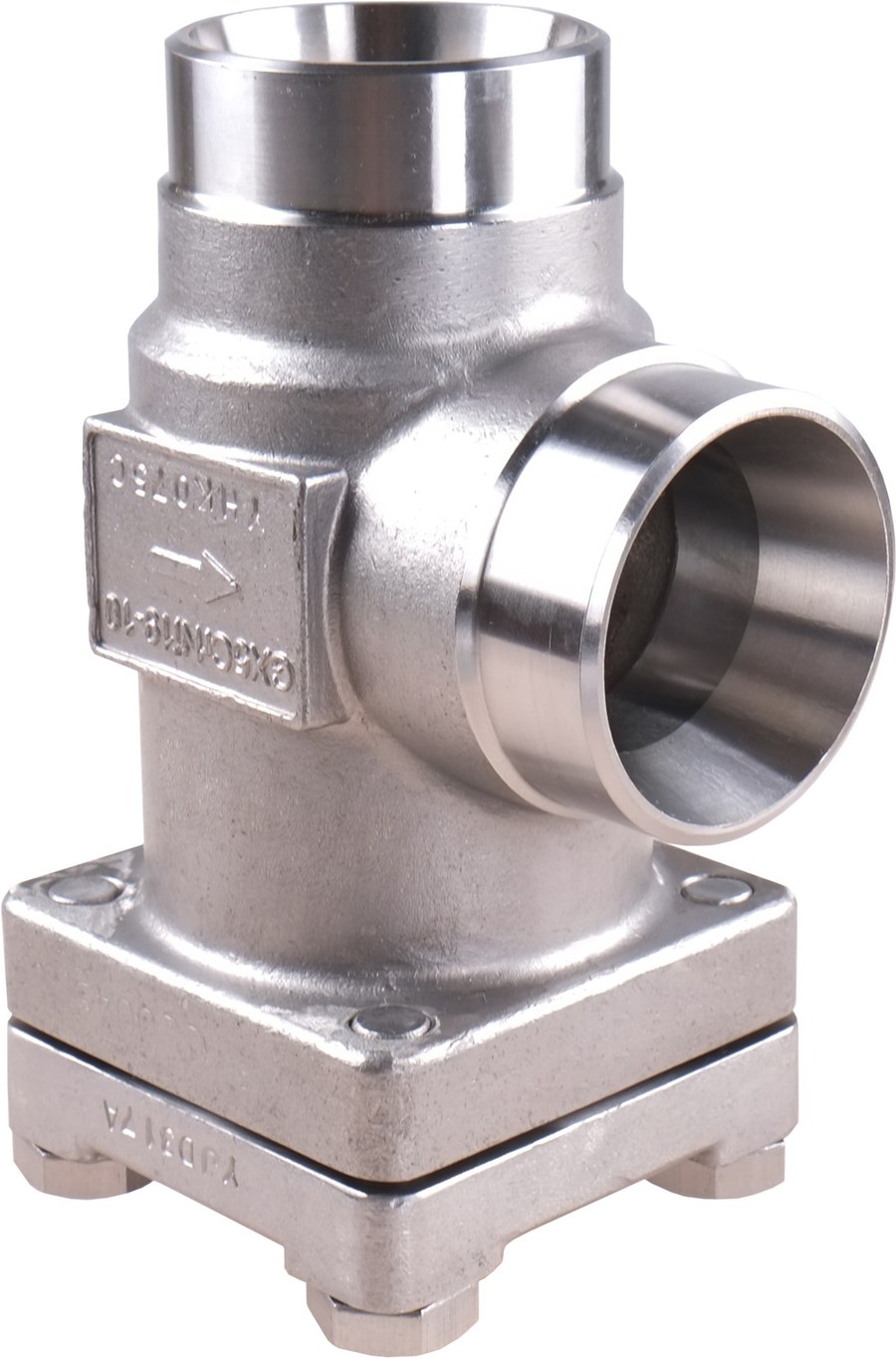

Danfoss FIA SS 65 angleway strainer (stainless), 65 mm (2 1/2 in) butt weld EN 10220, 52 bar (code 148B5851)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA SS 65 angleway strainer for the SVL Flexline industrial-refrigeration range, store code 148B5851. Stainless steel strainer with butt-weld connections both ends to EN 10220; protects downstream valves, pumps and compressors by retaining scale, weld beads and debris from liquid, suction, hot-gas and oil lines. Nominal size 65 mm (2 1/2 in); angleway body. Flow coefficient Kv 56.1-74.6 m3/h depending on filter insert (mesh 150/250/500 micron, plain or pleated). Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5851.
Specifications
- Part number
- 148B5851
- HS code
- 8421.39
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 65 mm
Compatibility
Danfoss SVL Flexline FIA SS 65 strainer. Butt-weld EN 10220 ends — confirm the mating pipe schedule before ordering. Takes the matching FIA 65 filter insert (150/250/500 micron, plain or pleated) and FIA 65 function module (Top Complete) for service. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and SCA-X/CHV-X check components of the same nominal size.
Standards
Approvals
