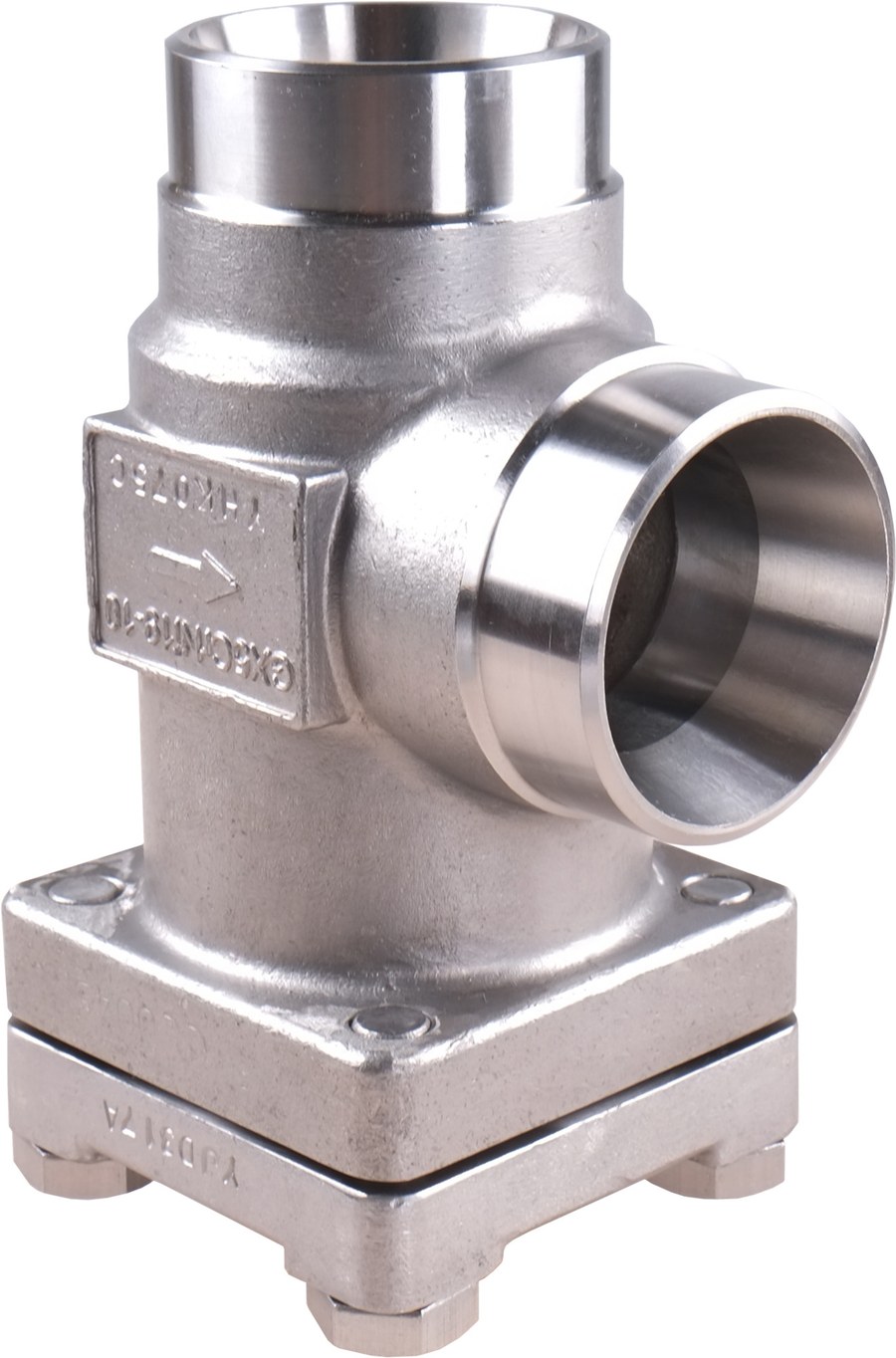

Danfoss FIA SS 65 angleway strainer (stainless), 65 mm (2 1/2 in) butt weld ASME B 36.19M Schedule 40, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA SS 65 angleway strainer for the SVL Flexline industrial-refrigeration range, store code 148B5857. Stainless steel strainer with butt-weld connections both ends to ASME B 36.19M Schedule 40; protects downstream valves, pumps and compressors by retaining scale, weld beads and debris from liquid, suction, hot-gas and oil lines. Nominal size 65 mm (2 1/2 in); angleway body. Flow coefficient Kv 56.1-74.6 m3/h depending on filter insert (mesh 150/250/500 micron, plain or pleated). Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5857.
Technical Specifications
- Type
- FIA SS 65 strainer (stainless)
- Code number
- 148B5857
- Nominal size
- 65 mm (2 1/2 in)
- Connection
- butt weld both ends, ASME B 36.19M Schedule 40
- Body material
- Stainless steel
- Flow direction
- Angleway
- Flow coefficient
- Kv 56.1-74.6 m3/h (varies with 150/250/500 micron plain or pleated insert)
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE
- EAN
- 5702428963190
- Net weight
- 4.136 Kilogram
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection material
- Stainless steel
- Connection standard
- ASME B 36.19M SCHEDULE 40
- Cv value [gal/min] 100 plain
- 247 gal/min
- Cv value [gal/min] 100 pleated
- 305.12 gal/min
- Cv value [gal/min] 38 plain
- 265.93 gal/min
- Cv value [gal/min] 38 pleated
- 328.45 gal/min
- Cv value [gal/min] 72 plain
- 254.49 gal/min
- Cv value [gal/min] 72 pleated
- 314.36 gal/min
- Direction
- Angleway
- Equipment
- Cover
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 2 1/2 in
- Inlet connection size [mm]
- 65 mm
- Inlet connection type
- Butt weld
- Kv value [m3/h] µ150 plain
- 56.1 m³/h
- Kv value [m3/h] µ150 pleated
- 69.3 m³/h
- Kv value [m3/h] µ250 plain
- 57.8 m³/h
- Kv value [m3/h] µ250 pleated
- 71.4 m³/h
- Kv value [m3/h] µ500 plain
- 60.4 m³/h
- Kv value [m3/h] µ500 pleated
- 74.6 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 2 1/2 in
- Outlet connection size [mm]
- 65 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.19M Schedule 40
- Size / Series
- 65 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA SS 65 strainer. Butt-weld ASME B 36.19M Schedule 40 ends — confirm the mating pipe schedule before ordering. Takes the matching FIA 65 filter insert (150/250/500 micron, plain or pleated) and FIA 65 function module (Top Complete) for service. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and SCA-X/CHV-X check components of the same nominal size.
