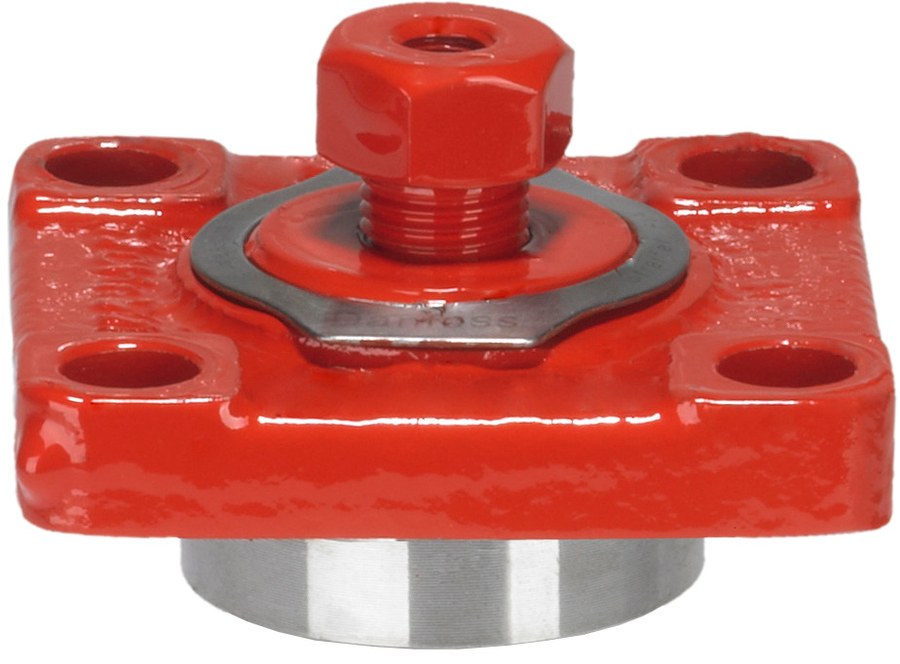

Danfoss FIA 65 function module (Top Complete), fits SVL Flexline FIA 65 strainer, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 65 function module (Top Complete) for the SVL Flexline industrial-refrigeration range, store code 148B5832. The function module carries the strainer top with cover, gasket and bolts — it converts a FIA 65 strainer housing into a complete, serviceable strainer and is the field-service replacement for the internal (top) parts without cutting the welded housing out of the line. Fits the 65 mm (2 1/2 in) FIA 65 strainer housing. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F); net weight 1.15 kg. Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Conformity assessment PED 2014/68/EU. Specifications per Danfoss store code 148B5832.
Technical Specifications
- Type
- FIA 65 function module (Top Complete)
- Code number
- 148B5832
- Fits
- FIA 65 strainer housing, 65 mm (2 1/2 in)
- Scope
- top part, cover, gasket and bolts
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Net weight
- 1.15 kg
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Conformity assessment
- PED 2014/68/EU
- Approvals
- CE
- EAN
- 5702428491129
- Brand
- SVL Flexline
- Product group
- Strainers
- Type designation
- Top Complete
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 150 °C
- Refrigerants
- R113; R114; R1150; R1233zd(E); R1234yf; R1234ze(E); R125; R1270; R1336mzz(Z); R134a; R152a; R170; R22; R227ea; R23; R236fa; R245fa; R290; R32; R401A; R402A; R402B; R404A; R407A; R407B; R407C; R407F; R407H; R408A; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R427A; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R503; R507A; R508B…
- REACH candidate-list substances
- No
- EU RoHS compliance
- Yes
- Approval
- CE
- China RoHS compliance
- Yes
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Used for product
- FIA 65
Standards & Compliance
- Size / Series
- 65 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.99
Compatibility & Fitment
Danfoss SVL Flexline FIA 65 function module (Top Complete). Fits the welded-in FIA 65 strainer housing (angleway or straightway) — the service kit that renews the strainer top without removing the housing. Order the matching FIA 65 filter insert (150/250/500 micron, plain or pleated) separately.
