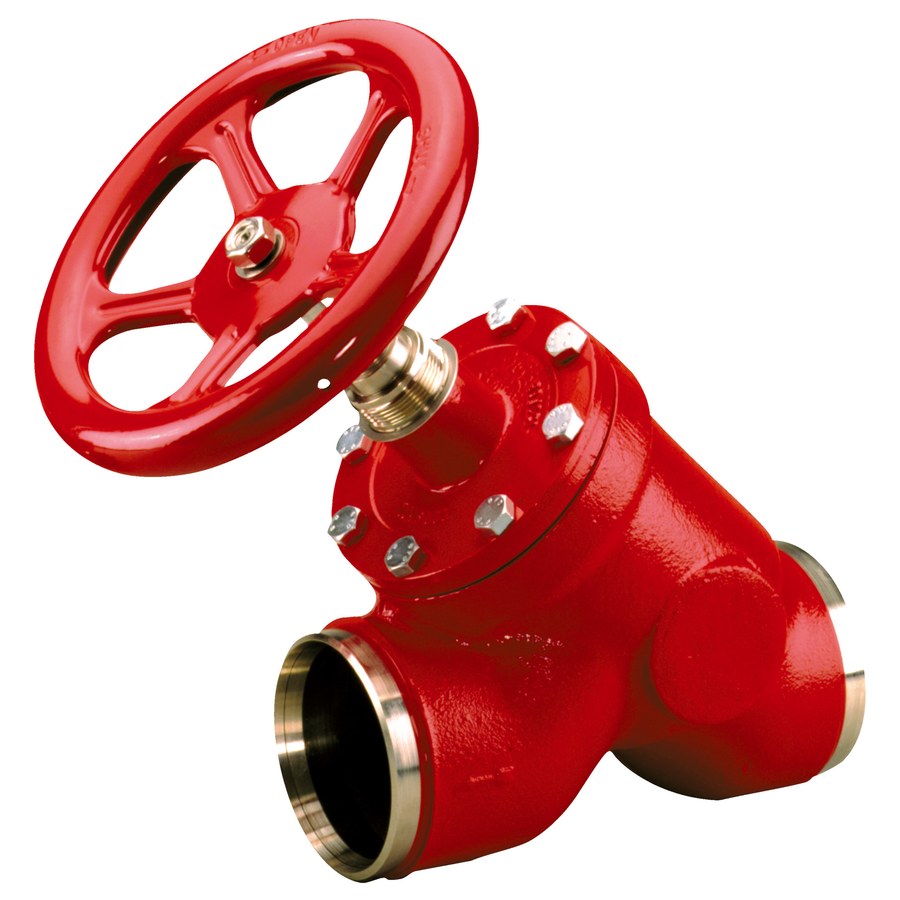

Danfoss SVA-S 200 shut-off (stop) valve, 200 mm (8 in) butt weld EN 10220, steel, straightway, handwheel, 52 bar (code 148B6310)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 200 shut-off (stop) valve for the SVL Flexline industrial-refrigeration range, store code 148B6310. Steel straightway body with butt-weld connections both ends to EN 10220, giving positive manual isolation of liquid, suction, hot-gas and oil lines. Nominal size 200 mm (8 in); bi-flow (bidirectional); flow coefficient Kv 1024 m3/h (Cv 1184 gal/min). Operated by handwheel; the back-seating spindle lets the packing be serviced under pressure. Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 122.9 kg, gross weight 123.4 kg. Conformity assessment PED 2014/68/EU, Category III. Specifications per Danfoss store code 148B6310.
Specifications
- Part number
- 148B6310
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 200 mm
Compatibility
Danfoss SVL Flexline SVA-S 200 valve. Butt-weld EN 10220 ends — confirm the mating pipe schedule before ordering. Serviceable with the matching SVA-S 200 spindle/packing spares and function module. Shares the SVL Flexline platform with SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same nominal size.
