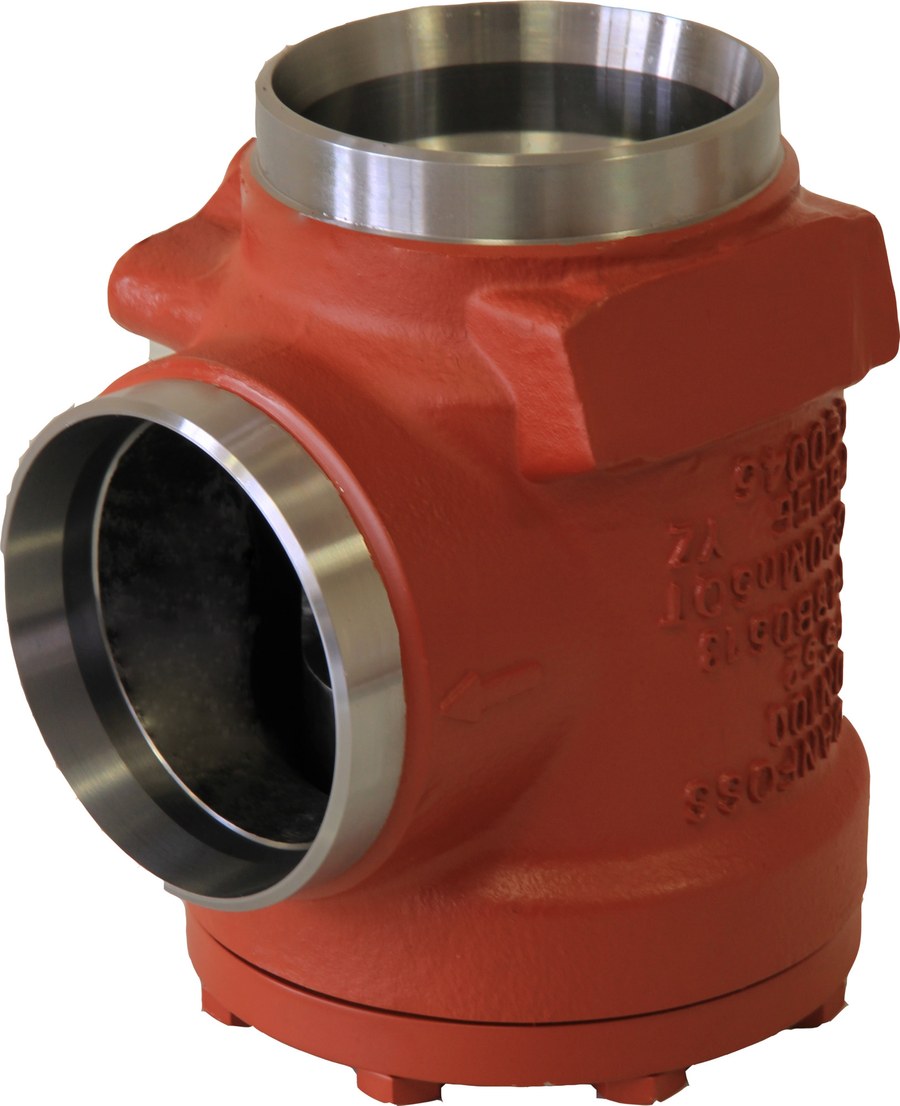

Danfoss FIA 200 angleway strainer housing, 200 mm (8 in) butt weld ASME B 36.10M Schedule 40, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 200 strainer housing for the SVL Flexline industrial-refrigeration range, store code 148B6304. Steel angleway body with butt-weld connections both ends to ASME B 36.10M Schedule 40 and a bolt-on cover. The FIA is an in-line strainer that protects downstream valves, pumps and compressors from pipe scale and weld debris; this is the pressure-containing housing (with cover) that takes a replaceable FIA INS strainer insert — available in 38, 72, 100, 150, 250 and 500 micron, plain or pleated (ordered separately). Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 200 mm (8 in); flow coefficient (housing plus insert) 572.9 m3/h (µ150 plain insert) to 620.5 m3/h (µ500 plain insert). Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 59.3 kg, gross weight 84 kg. Conformity assessment PED 2014/68/EU, Category III. Specifications per Danfoss store code 148B6304.
Technical Specifications
- Type
- FIA 200 strainer housing (SVL Flexline), with cover
- Code number
- 148B6304
- Nominal size
- 200 mm (8 in)
- Body geometry
- Angleway
- Connection
- butt weld both ends, ASME B 36.10M Schedule 40
- Body material
- Steel
- Strainer inserts (ordered separately)
- 38 / 72 / 100 / 150 / 250 / 500 micron, plain or pleated
- Flow coefficient
- 572.9 m3/h (µ150 plain insert) to 620.5 m3/h (µ500 plain insert)
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Weight
- net weight 59.3 kg, gross weight 84 kg
- Conformity assessment
- PED 2014/68/EU, Category III
- Approvals
- CE
- EAN
- 5702428475365
- Net weight
- 59.3 Kilogram
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2002:S40:200)
- Connection material
- Steel
- Connection standard
- ASME B 36.10M SCHEDULE 40
- Cv value [gal/min] 100 plain
- 2522.4 gal/min
- Cv value [gal/min] 38 plain
- 2731.98 gal/min
- Cv value [gal/min] 72 plain
- 2601.21 gal/min
- Direction
- Angleway
- Equipment
- Cover
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 8 in
- Inlet connection size [mm]
- 200 mm
- Inlet connection type
- Butt weld
- Kv value [m3/h] µ150 plain
- 572.9 m³/h
- Kv value [m3/h] µ250 plain
- 590.8 m³/h
- Kv value [m3/h] µ500 plain
- 620.5 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 8 in
- Outlet connection size [mm]
- 200 mm
- Outlet connection type
- Butt weld
- PED category
- III
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.10M Schedule 40
- Size / Series
- 200 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA 200 strainer housing. Order the required FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) and the matching FIA 200 function module (Top Complete cover) separately. Butt-weld ASME B 36.10M Schedule 40 ends — confirm the mating pipe schedule before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and SCA-X/CHV-X check valves of the same nominal size.
