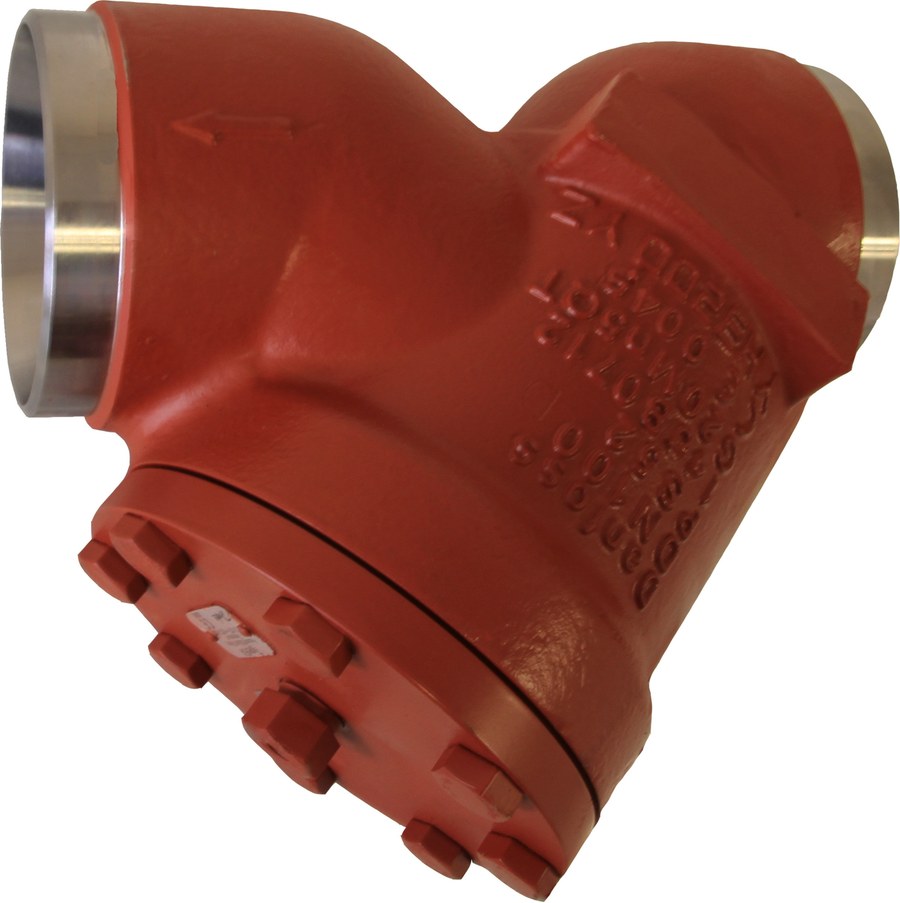

Danfoss FIA 200 straightway strainer housing, 200 mm (8 in) butt weld ASME B 36.10M Schedule 40, steel, 52 bar (code 148B6305)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA 200 strainer housing for the SVL Flexline industrial-refrigeration range, store code 148B6305. Steel straightway body with butt-weld connections both ends to ASME B 36.10M Schedule 40 and a bolt-on cover. The FIA is an in-line strainer that protects downstream valves, pumps and compressors from pipe scale and weld debris; this is the pressure-containing housing (with cover) that takes a replaceable FIA INS strainer insert — available in 38, 72, 100, 150, 250 and 500 micron, plain or pleated (ordered separately). Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 200 mm (8 in); flow coefficient (housing plus insert) 438.1 m3/h (µ150 plain insert) to 474.5 m3/h (µ500 plain insert). Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 94.3 kg, gross weight 109 kg. Conformity assessment PED 2014/68/EU, Category III. Specifications per Danfoss store code 148B6305.
Specifications
- Part number
- 148B6305
- HS code
- 8421.39
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.10M Schedule 40
- Standard size
- 200 mm
Compatibility
Danfoss SVL Flexline FIA 200 strainer housing. Order the required FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) and the matching FIA 200 function module (Top Complete cover) separately. Butt-weld ASME B 36.10M Schedule 40 ends — confirm the mating pipe schedule before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and SCA-X/CHV-X check valves of the same nominal size.
Standards
- ASME B 36.10M Schedule 40
- PED 2014/68/EU
Approvals
