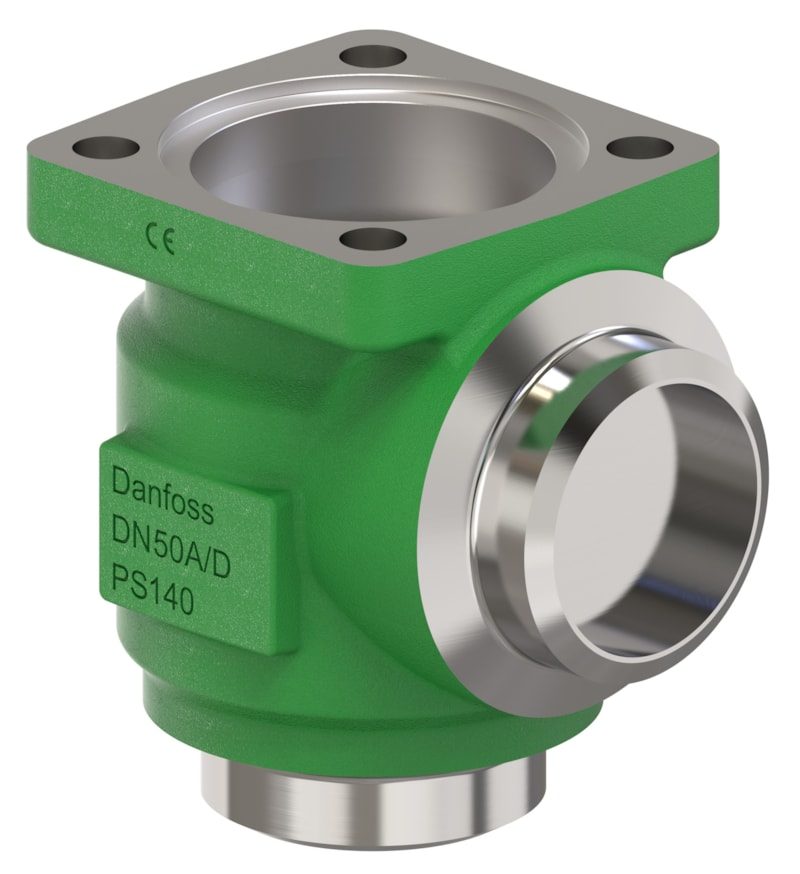

Danfoss SVL-140B 50 multifunction valve body (R744/CO2, 140 bar), 50 mm (2 in) butt weld angleway, steel (code 148B5861)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVL-140B 50 multifunction valve body for the SVL Flexline transcritical CO2 (R744) range, store code 148B5861. Bare steel valve housing rated to 140 bar (2030 psig) — the welded-in body that accepts the SVL Flexline function-module top set (shut-off, check, regulating or strainer). Angleway configuration with butt-weld connections both ends, 50 mm (2 in), to ANSI B36.10 Schedule 80 / EN 10216-2. Single-flow, embossed 1-way flow-direction arrow. Media temperature -40 to 150 C (-40 to 302 F); gross weight 3.3 kg. For R744 (CO2) transcritical booster and high-pressure industrial-refrigeration systems. Approvals CE, C-UL-US Listed and CRN; conformity assessment PED 2014/68/EU, Category I. Specifications per Danfoss store code 148B5861.
Specifications
- Part number
- 148B5861
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 140 bar
- Temperature range
- -40 to 150 C
- Standard
- ANSI B36.10 Schedule 80 / EN 10216-2
- Standard size
- 50 mm
Compatibility
Danfoss SVL Flexline SVL-140B 50 valve body for 140 bar transcritical CO2 (R744) service. Butt-weld ANSI B36.10 Schedule 80 / EN 10216-2 ends — confirm the mating pipe schedule before ordering. Accepts the SVL Flexline function-module top set (shut-off / check / regulating / strainer) to build a complete valve. Do not fit standard 52-bar SVL tops — use the 140-bar-rated module set.
Standards
- EN 10216-2
- ANSI B36.10
- PED 2014/68/EU
Approvals
