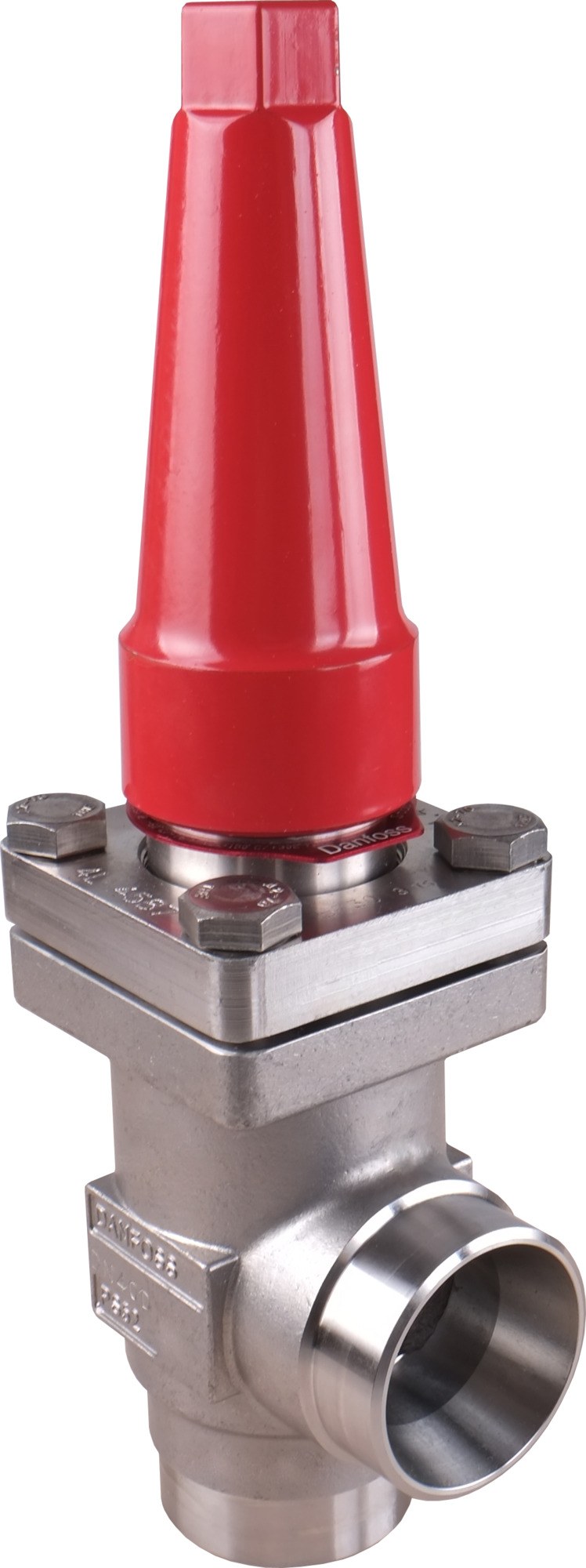

Danfoss SVA-S SS 65 shut-off (stop) valve, 65 mm (2 1/2 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar (code 148B5854)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S SS 65 shut-off (stop) valve for the SVL Flexline industrial-refrigeration range, store code 148B5854. Stainless steel angleway body with butt-weld connections both ends to ASME B 36.19M Schedule 40, giving manual shut-off (isolation) of liquid, suction, hot-gas and oil lines. Nominal size 65 mm (2 1/2 in); flow coefficient Kv 120 m3/h. Angleway, bi-flow (bidirectional); cap. Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5854.
Specifications
- Part number
- 148B5854
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.19M Schedule 40
- Standard size
- 65 mm
Compatibility
Danfoss SVL Flexline SVA-S SS 65 valve. Butt-weld ASME B 36.19M Schedule 40 ends — confirm the mating pipe schedule before ordering. Serviceable with the matching SVA-S SS 65 function module (Top Complete) and gasket/spindle spares. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same nominal size.
Standards
- ASME B 36.19M Schedule 40
- PED 2014/68/EU
Approvals
