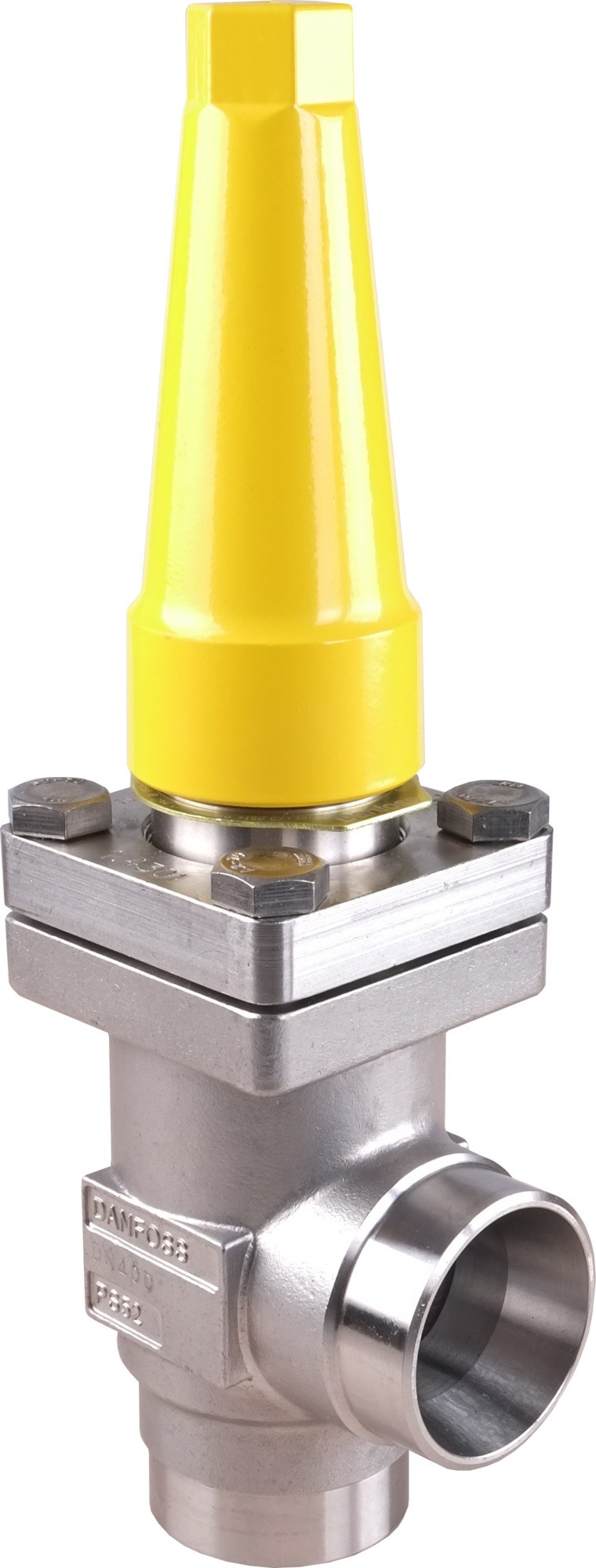

Danfoss REG-SA SS HL 15 hand-operated regulating valve, 15 mm (1/2 in) butt weld EN 10220, stainless steel, 52 bar (code 148B5940)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss REG-SA SS HL 15 hand-operated regulating valve for the SVL Flexline industrial-refrigeration range, store code 148B5940. Stainless steel angleway body with butt-weld connections both ends to EN 10220, giving fine manual regulation (throttling) of liquid, suction, hot-gas and oil lines. Nominal size 15 mm (1/2 in); flow coefficient Kv 1.5 m3/h (1.75 gal/min Cv). Flow area 36 mm2 (0.056 in2). Operated by cap; Angleway. Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 1.575 kg, gross weight 1.877 kg. Conformity assessment PED 2014/68/EU, Category Art. 4, par. 3. Specifications per Danfoss store code 148B5940.
Specifications
- Part number
- 148B5940
- HS code
- 8481.80
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 15 mm
Compatibility
Danfoss SVL Flexline REG-SA SS HL 15 valve. Butt-weld EN 10220 ends — confirm the mating pipe schedule before ordering. Serviceable with the matching REG-SA SS HL 15 function module (Top Complete) and gasket/spindle spares. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same nominal size.
Standards
Approvals
