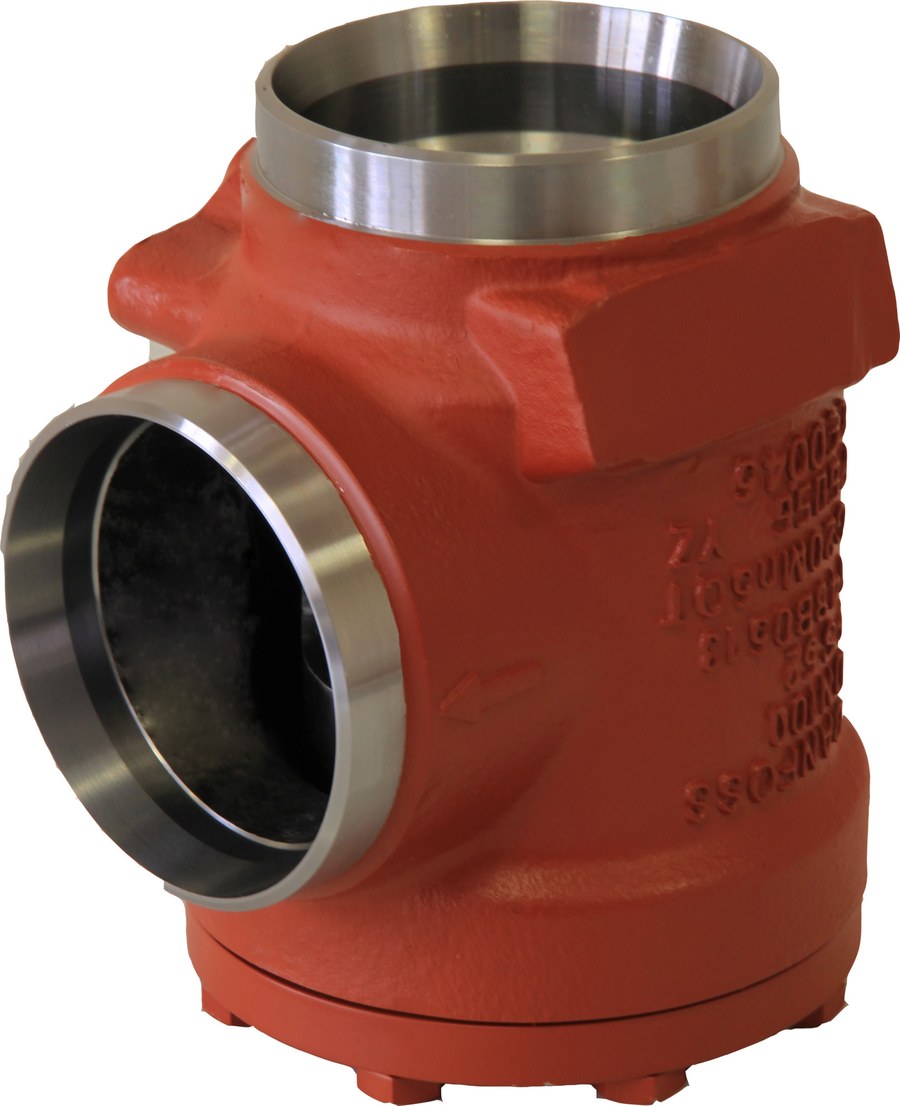

Danfoss FIA 80 angleway strainer housing, 80 mm (3 in) butt weld EN 10220, steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA 80 strainer housing for the SVL Flexline industrial-refrigeration range, store code 148B5905. Steel angleway body with butt-weld connections both ends to EN 10220 and a bolt-on cover. The FIA is an in-line strainer that protects downstream valves, pumps and compressors from pipe scale and weld debris; this is the pressure-containing housing (with cover) that takes a replaceable FIA INS strainer insert — available in 38, 72, 100, 150, 250 and 500 micron, plain or pleated (ordered separately). Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Nominal size 80 mm (3 in); flow coefficient Kv 80.0 (µ150 plain) to 113.1 m3/h (µ500 plain). Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 7.494 kg, gross weight 8.292 kg. Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5905.
Technical Specifications
- Type
- FIA 80 strainer housing (SVL Flexline), with cover
- Code number
- 148B5905
- Nominal size
- 80 mm (3 in)
- Flow direction body
- Angleway
- Connection
- butt weld both ends, EN 10220
- Body material
- Steel
- Strainer inserts (ordered separately)
- 38 / 72 / 100 / 150 / 250 / 500 micron, plain or pleated
- Flow coefficient
- Kv 80.0 (µ150 plain) to 113.1 m3/h (µ500 plain)
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Weight
- net weight 7.494 kg, gross weight 8.292 kg
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE
- EAN
- 5702428476560
- Net weight
- 7.494 Kilogram
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2001:D32:80)
- Connection material
- Steel
- Connection standard
- EN 10220
- Cv value [gal/min] 100 plain
- 460.54 gal/min
- Cv value [gal/min] 100 pleated
- 568.85 gal/min
- Cv value [gal/min] 38 plain
- 497.96 gal/min
- Cv value [gal/min] 38 pleated
- 615.08 gal/min
- Cv value [gal/min] 72 plain
- 475.51 gal/min
- Cv value [gal/min] 72 pleated
- 587.34 gal/min
- Direction
- Angleway
- Equipment
- Cover
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 3 in
- Inlet connection size [mm]
- 80 mm
- Inlet connection type
- Butt weld
- Kv value [m3/h] µ150 plain
- 104.6 m³/h
- Kv value [m3/h] µ150 pleated
- 129.2 m³/h
- Kv value [m3/h] µ250 plain
- 108 m³/h
- Kv value [m3/h] µ250 pleated
- 133.4 m³/h
- Kv value [m3/h] µ500 plain
- 113.1 m³/h
- Kv value [m3/h] µ500 pleated
- 139.7 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 3 in
- Outlet connection size [mm]
- 80 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 80 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA 80 strainer housing. Order the required FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) and the FIA 80 function module (Top Complete cover) separately. Butt-weld EN 10220 ends — confirm the mating pipe schedule before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and SCA-X/CHV-X check valves of the same nominal size.
