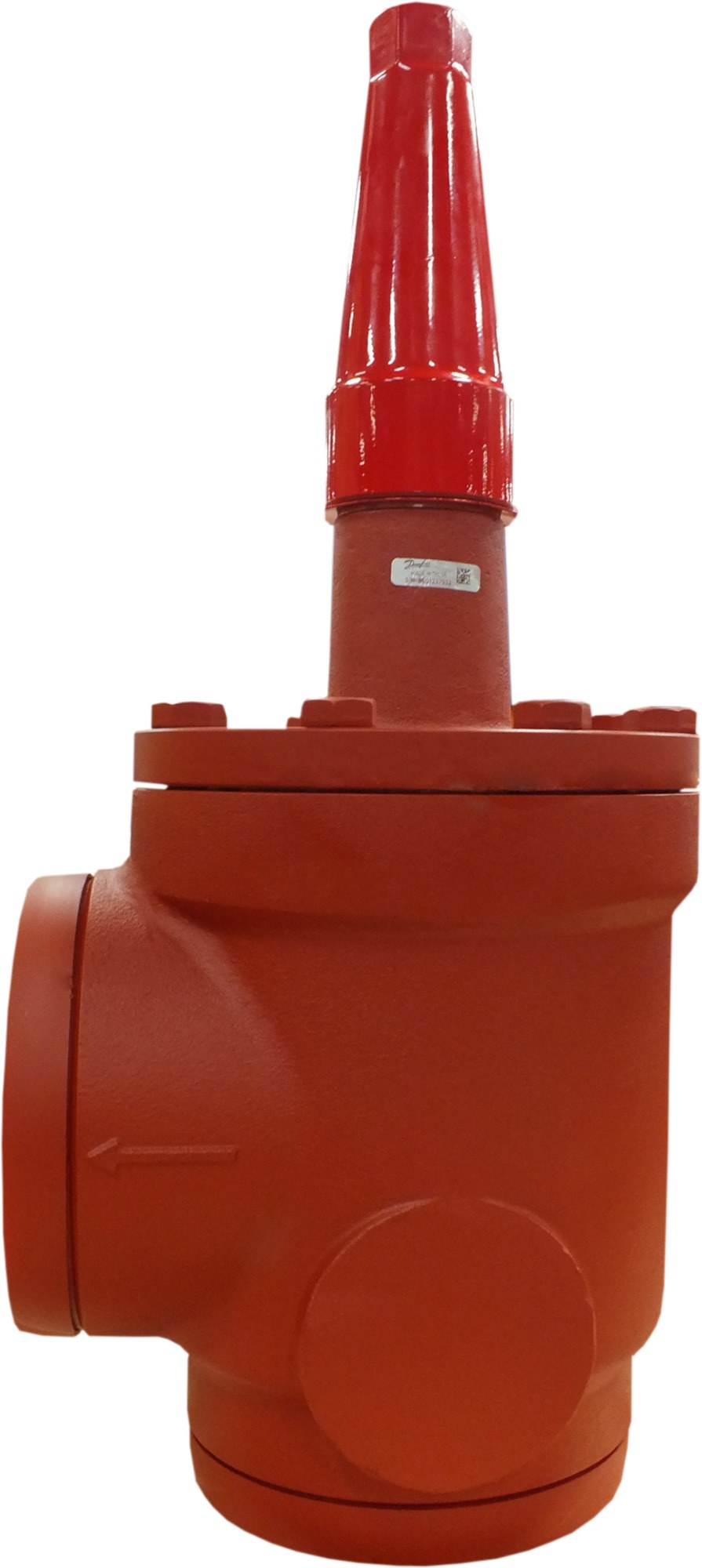

Danfoss SVA-S 80 shut-off (stop) valve, 80 mm (3 in) butt weld EN 10220, steel, 52 bar (code 148B5901)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss SVA-S 80 shut-off (stop) valve for the SVL Flexline industrial-refrigeration range, store code 148B5901. Steel angleway body with butt-weld connections both ends to EN 10220, giving manual shut-off (isolation) of liquid, suction, hot-gas and oil lines. Nominal size 80 mm (3 in); flow coefficient Kv 182 m3/h (211 gal/min Cv). Operated by cap; Angleway, bi-flow (bidirectional). Suited to R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 10.55 kg, gross weight 13.11 kg. Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5901.
Specifications
- Part number
- 148B5901
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- EN 10220
- Standard size
- 80 mm
Compatibility
Danfoss SVL Flexline SVA-S 80 valve. Butt-weld EN 10220 ends — confirm the mating pipe schedule before ordering. Serviceable with the matching SVA-S 80 function module (Top Complete) and gasket/spindle spares. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating, SCA-X/CHV-X check and FIA strainer components of the same nominal size.
Standards
Approvals
