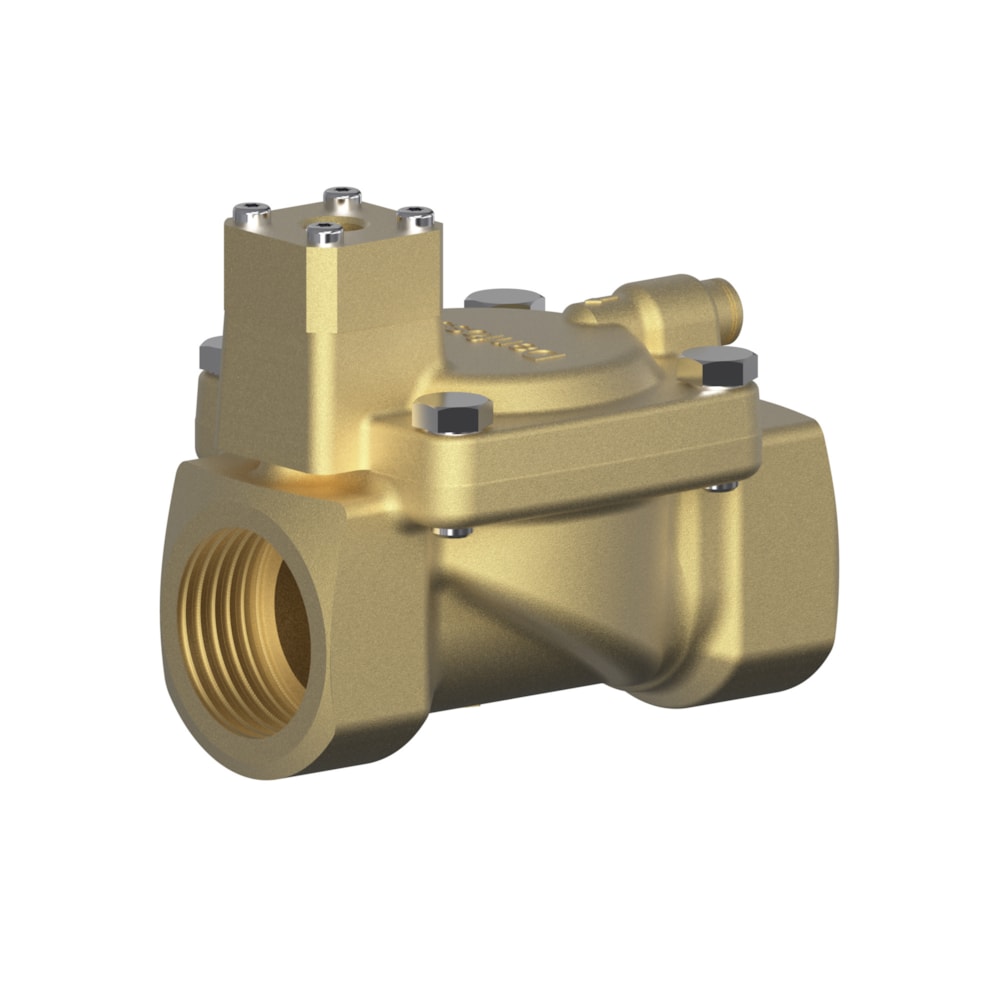

Solenoid valve, EV220X, Function: External — control, G, 3/4, 8.00 m³/h, EPDM
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Solenoid valve, EV220X, Function: External — control, G, 3/4, 8.00 m³/h, EPDM. Reference part number 032U7191.
Technical Specifications
- Code number
- 032U7191
- EAN
- 5702423062997
- Net weight
- 0.906 Kilogram
- Actuator
- X
- Actuator size
- No system
- Ambient temperature max. [°C]
- 80 °C
- Application
- Open
- Body material
- Brass
- China RoHS exemption clause
- 7.3
- Connection Internal/External
- Internal
- Connection material
- Brass
- Connection size [in]
- 3/4
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 9.250 gal/min
- EU RoHS compliance
- Yes with exemptions
- Flow direction
- Single-flow
- Function
- External control
- Kv value [m³/h]
- 8.000 m³/h
- Max. Working Pressure [bar]
- 16.0 bar
- Media recommendations
- Water & Brine
- Number of ways
- 2/2
- Operation
- Servo-operated (diaphragm)
- Orifice size [mm]
- 20.00 mm
- Orifice size fraction [in]
- 3/4 in
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- EV220X
- Seal Material
- EPDM
- Specification key
- EV220X 20B G 34E UN000
- Type designation
- EV220X 20
- Differential pressure [bar]
- 0.300 bar … 10.000 bar
- Medium temperature range [°C]
- -30 °C … 120 °C
- Flow rate
- 8.00 m³/h
- Gross weight
- 0.96 Kilogram
- Volume
- 0.88 Liter
- Type
- EV220X
- Product Name Description
- Solenoid valve
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702423062997
Product Documentation
