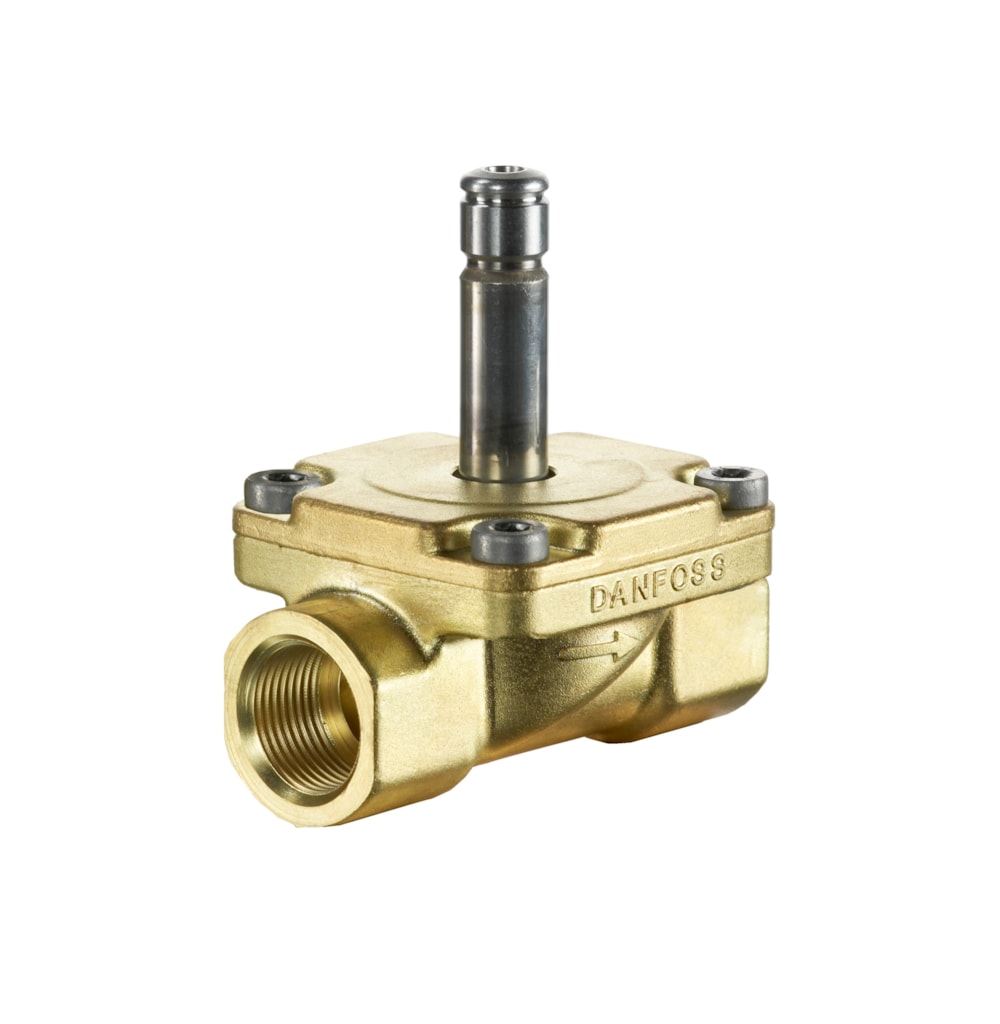

Danfoss solenoid valve EV260B, PTFE — 1/2" NC, 0,5-10bar, Modulerende
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss solenoid valve EV260B, PTFE — 1/2" NC, 0,5-10bar, Modulerende. Reference part number 032U8056.
Technical Specifications
- Code number
- 032U8056
- EAN
- 5702423060924
- Net weight
- 0.618 Kilogram
- Actuator
- B
- Actuator size
- 13.5 mm
- Actuator size [in]
- 0.53 in
- Actuator system [mm]
- 13.5 mm
- Ambient temperature max. [°C]
- 50 °C
- Application
- Open
- Body material
- Brass
- China RoHS exemption clause
- 7.3
- Connection Internal/External
- Internal
- Connection material
- Brass
- Connection size [in]
- 1/2
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 2.430 gal/min
- EU RoHS compliance
- Yes with exemptions
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Function
- NC
- Kv value [m³/h]
- 2.100 m³/h
- Max media viscosity [cSt]
- 50 cSt
- Max. test pressure [bar]
- 15.0 bar
- Max. Working Pressure [bar]
- 10.0 bar
- Media recommendations
- Water & Brine
- Media tolerance comments
- Neutral media
- Number of ways
- 2/2
- Operation
- Proportional
- Orifice size [mm]
- 15.00 mm
- Orifice size fraction [in]
- 5/8 in
- Parts Program name
- EV260B
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- EV260B
- Seal Material
- PTFE
- Serviceable
- Solenoid valve spare parts
- Specification key
- EV260B 15B G 12T NC000
- Type designation
- EV260B 15
- Differential pressure [bar]
- 0.500 bar … 10.000 bar
- Medium temperature range [°C]
- -10 °C … 80 °C
- Operating pressure
- 0.5–10 bar
- Process connection
- 1/2 in
- Gross weight
- 0.672 Kilogram
- Volume
- 0.88 Liter
- Type
- EV260B
- Product Name Description
- Solenoid valve
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5702423060924
