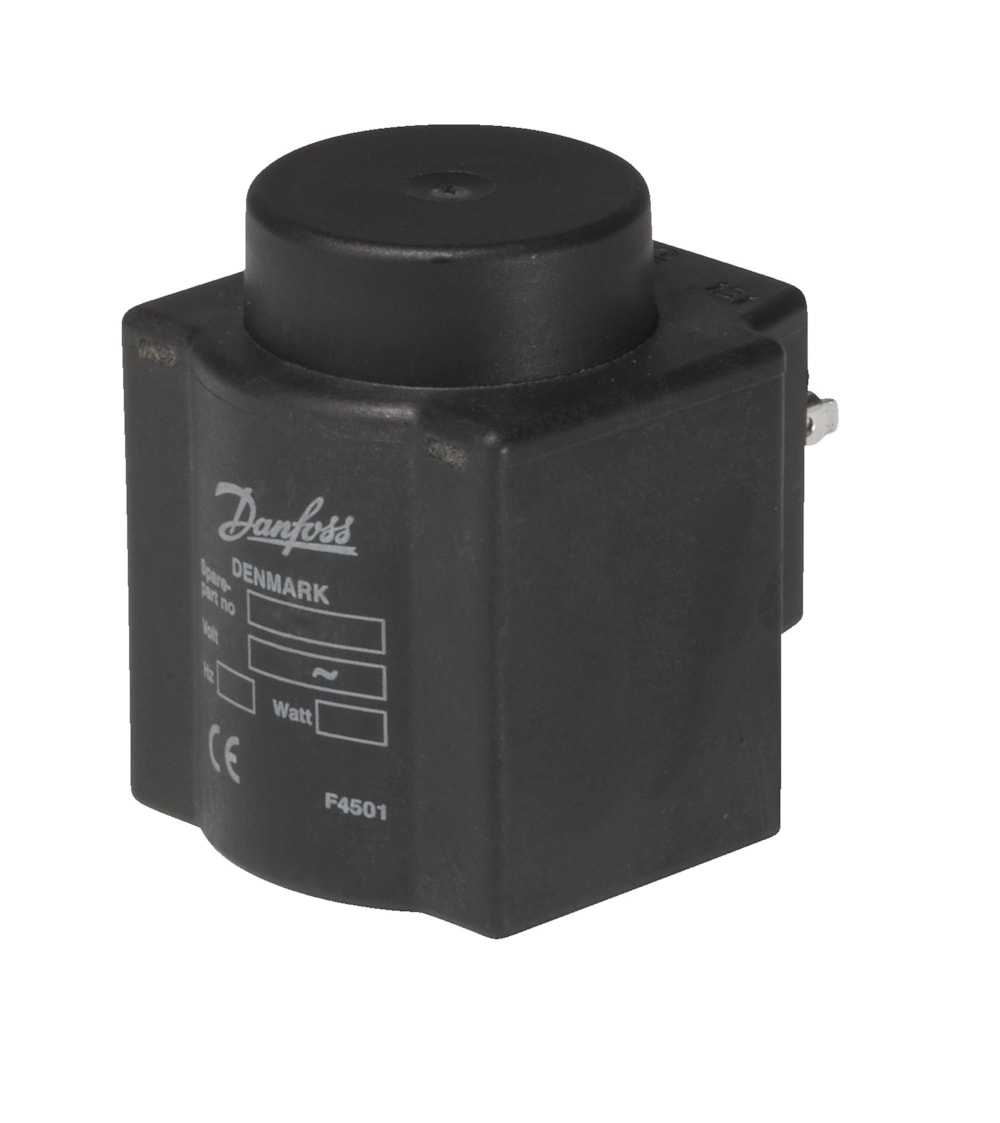

![Magnetventilspole, BQ024CS, — DIN-spade, Supply voltage [V] AC: 24](/images/products/danfoss-e6cafff311a4ad77.jpg)
Magnetventilspole, BQ024CS, — DIN-spade, Supply voltage [V] AC: 24
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss Magnetventilspole, BQ024CS, — DIN-spade, Supply voltage [V] AC: 24. Reference part number 018F4517.
Technical Specifications
- Code number
- 018F4517
- EAN
- 5702428290173
- Net weight
- 0.248 Kilogram
- Actuator size
- 13.5 mm
- Application
- Steam applications
- Approval
- CE; EAC; LLC CDC TYSK; cURus
- CE mark
- Yes
- China RoHS exemption clause
- No
- Coil connection
- DIN Spade
- Coil design standard
- VDE 0580
- Coil fastening
- Clip-on
- Coil winding insulation class
- Class H to IEC 85
- Colour
- Black
- Electrical connection
- DIN Spade
- Electrical connection size
- 6.3 mm x 0.8 mm
- Electrical connection standard
- EN175301-803
- Electrical connector
- 3 x spades
- Enclosure rating IP
- IP65
- Enclosure rating Nema (~)
- 4
- EU RoHS compliance
- Yes
- Frequency [Hz]
- 50/60 Hz
- Parts Program name
- EV215B; EV225B; EV245B
- Power consumption [W] 50Hz
- 10.0 W
- Power consumption [W] 60Hz
- 9.0 W
- Power consumption 50Hz [VA]
- 17.0 VA
- Power consumption 60Hz [VA]
- 16.0 VA
- Product accessories
- Solenoid coil accessories
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- BQ024CS
- Serviceable
- No
- Spare part number
- 018F4517
- Supply voltage [V] AC
- 24 V
- Supply voltage 50Hz Max [V]
- 24 V
- Supply voltage 60Hz Max [V]
- 24 V
- Type designation
- BQ024CS
- UL mark
- Yes
- Ambient temperature range [°C]
- -40 °C … 40 °C
- Rel. Humidity [% RH]
- 0 % … 100 %
- Gross weight
- 0.26 Kilogram
- Volume
- 0.275 Liter
- Type
- BQ024CS
- Product Name Description
- Solenoid coil
