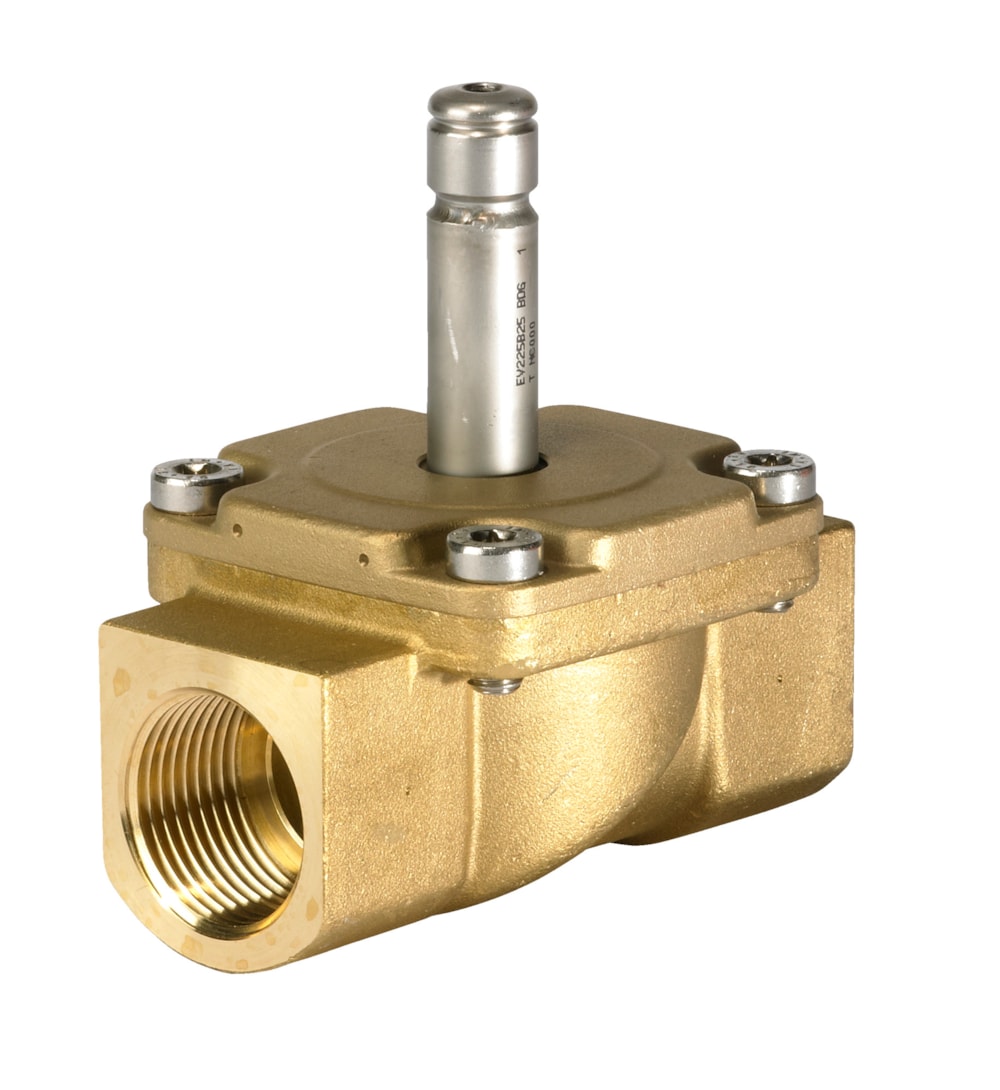

Danfoss solenoid valve EV225B 25, NC — 1", 0,3/10 bar, PTFE
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss solenoid valve EV225B 25, NC — 1", 0,3/10 bar, PTFE. Reference part number 032U3807.
Technical Specifications
- Code number
- 032U3807
- EAN
- 5702428473101
- Net weight
- 1.45 Kilogram
- Actuator
- B
- Actuator size
- 13.5 mm
- Actuator size [in]
- 0.53 in
- Actuator system [mm]
- 13.5 mm
- Ambient temperature max. [°C]
- 40 °C
- Application
- Open
- Approval
- UL; UR
- Body material
- DZR brass
- China RoHS exemption clause
- 7.3
- Connection Internal/External
- Internal
- Connection material
- DZR brass
- Connection size [in]
- 1
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 6.950 gal/min
- Est. time to close, water [ms]
- 20 ms
- Est. time to open, water [ms]
- 20 ms
- EU RoHS compliance
- Yes with exemptions
- Flow direction
- Single-flow
- Fluid Group
- 1
- Function
- NC
- Kv value [m³/h]
- 6.000 m³/h
- Max media viscosity [cSt]
- 50 cSt
- Max. test pressure [bar]
- 15.0 bar
- Max. Working Pressure [bar]
- 10.0 bar
- Media recommendations
- Steam
- Media tolerance comments
- Slightly aggressive media
- Number of ways
- 2/2
- Operation
- Servo-operated (diaphragm)
- Orifice size [mm]
- 25.00 mm
- Orifice size fraction [in]
- 1 in
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- EV225B
- Seal Material
- PTFE
- Serviceable
- Solenoid valve spare parts
- Specification key
- EV225B 25BD G 1T NC000
- Type designation
- EV225B 25
- UL mark
- Yes
- Differential pressure [bar]
- 0.300 bar … 10.000 bar
- Medium temperature range [°C]
- -10 °C … 185 °C
- Operating pressure
- 0.3–10 bar
- Gross weight
- 1.483 Kilogram
- Volume
- 1.227 Liter
- Type
- EV225B
- Product Name Description
- Solenoid valve
Standards & Compliance
- HS Code
- 8481.80
