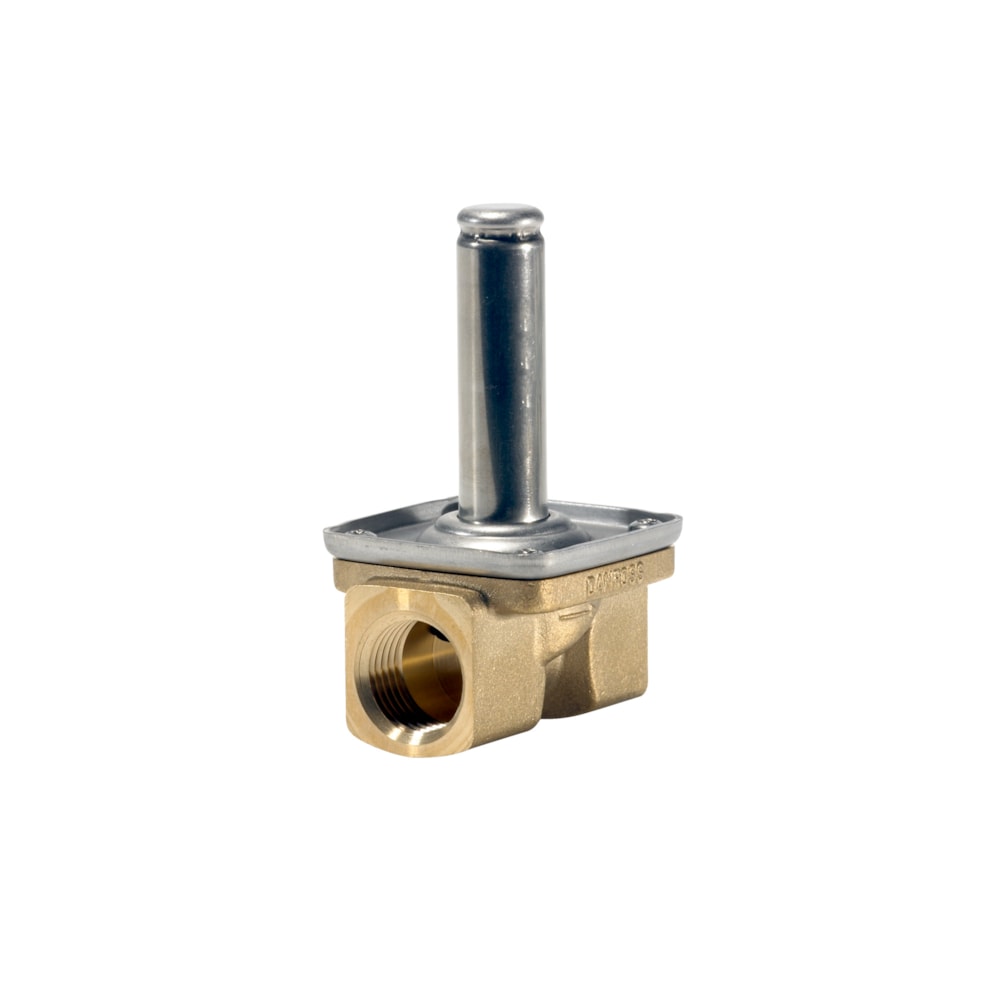

Danfoss solenoid valve EV221BW, NC — R1/2", 0,1/10bar, ECO-brass
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss solenoid valve EV221BW, NC — R1/2", 0,1/10bar, ECO-brass. Reference part number 132U1002.
Technical Specifications
- Code number
- 132U1002
- EAN
- 5715162135822
- Net weight
- 0.293 Kilogram
- Actuator
- BW
- Actuator size
- 13.5 mm
- Actuator size [in]
- 0.53 in
- Actuator system [mm]
- 13.5 mm
- Ambient temperature max. [°C]
- 80 °C
- Application
- Open
- Approval
- ACS; PZH; RISE; SINTEF; WRAS
- Body material
- Eco brass
- China RoHS exemption clause
- No
- Connection Internal/External
- Internal
- Connection material
- Eco brass
- Connection size [in]
- 1/2
- Connection standard
- ISO 228-1
- Connection type
- G
- Cv value [gal/min]
- 1.750 gal/min
- EPD available
- Yes
- Est. time to close, water [ms]
- 300 ms
- Est. time to open, water [ms]
- 50 ms
- EU RoHS compliance
- Yes
- Flow direction
- Single-flow
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Function
- NC
- Kv value [m³/h]
- 1.500 m³/h
- Max media viscosity [cSt]
- 50 cSt
- Max. test pressure [bar]
- 15.0 bar
- Max. Working Pressure [bar]
- 10.0 bar
- Media recommendations
- Drinking Water&Heating ECO/SS
- Media tolerance comments
- Slightly aggressive media
- Number of ways
- 2/2
- Operation
- Servo-operated (diaphragm)
- Orifice size [mm]
- 10.00 mm
- Orifice size fraction [in]
- 3/8 in
- Parts Program name
- EV221BW 10 - 22
- Product accessories
- Solenoid valve accessories
- Product group
- Solenoid valves
- Product line
- Air Conditioning and Commercial Refrigeration
- Product Type
- EV221BW
- Seal Material
- EPDM
- Serviceable
- Solenoid valve spare parts
- Specification key
- EV221BW 10BE G 12E NC000
- Type designation
- EV221BW 10
- Differential pressure [bar]
- 0.100 bar … 10.000 bar
- Medium temperature range [°C]
- -30 °C … 90 °C
- Operating pressure
- 0.1–10 bar
- Material
- Brass
- Gross weight
- 0.31 Kilogram
- Volume
- 0.253 Liter
- Type
- EV221BW
- Product Name Description
- Solenoid valve
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 5715162135822
Product Documentation
More from Danfoss
Danfoss
Danfoss solenoid valve EV221BW, NC — R3/8", 0,1/10bar, ECO-brass
132U1000
Danfoss
Danfoss solenoid valve EV224B, NC — 0,3-40 bar
105094
Danfoss
Danfoss solenoid valve EV225B with coil — 0,3-10 bar, NC, DZR / PTFE
105720
Danfoss

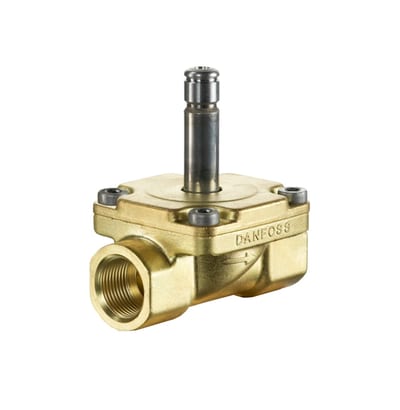

Danfoss solenoid valve EV260B, PTFE — 1/2" NC, 0,5-10bar, Modulerende
032U8056
![Magnetventilspole, BQ024CS, — DIN-spade, Supply voltage [V] AC: 24](/images/products/danfoss-e6cafff311a4ad77.jpg?w=400)
Danfoss

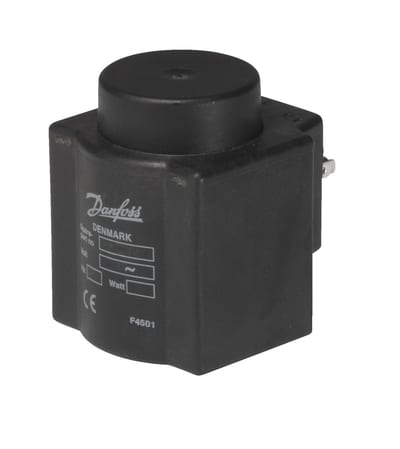

Magnetventilspole, BQ024CS, — DIN-spade, Supply voltage [V] AC: 24
018F4517
Danfoss

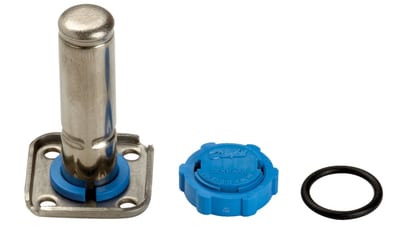

Danfoss NO unit EV220B 15-50 EPDM — and EV210B 1.5-3 EPDM
032U0296
Danfoss

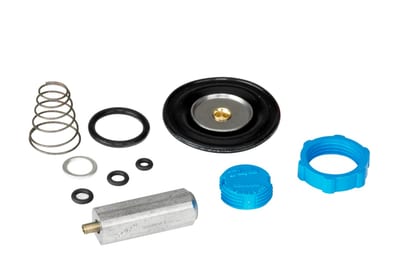

Danfoss Repair kit EV220B 15, NC — EPDM, WBD
