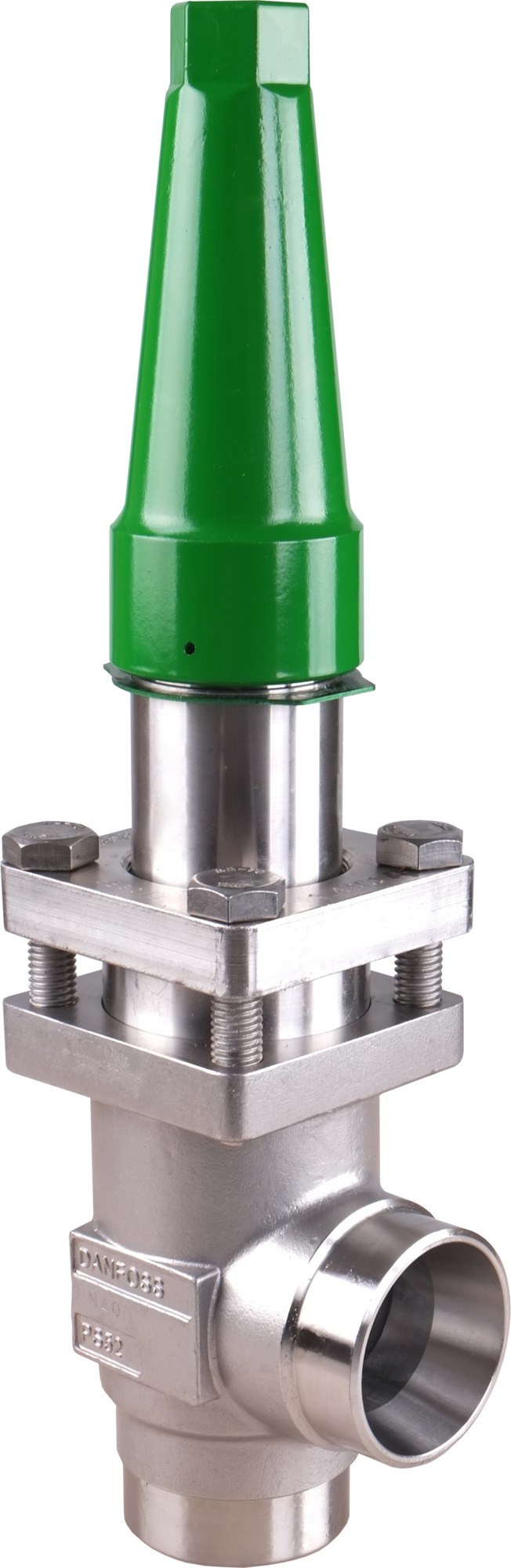

Danfoss SCA-X SS angleway check and stop valve, 20 mm (3/4 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar (code 148B6489)
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss SCA-X SS angleway check and stop valve for industrial refrigeration, code 148B6489. Stainless steel body with butt weld connections to ASME B 36.19M Schedule 40, nominal size 20 mm (3/4 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 10 m3/h. Combined non-return (check) and manual shut-off function in one body: the cone lifts for forward flow and closes on reverse flow, and can be held shut by the spindle. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Specifications
- Part number
- 148B6489
- HS code
- 8481.30
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.19M Schedule 40
- Standard size
- 20 mm
Compatibility
Danfoss SVL Flexline SCA-X SS valve. This code is the angleway SCA-X SS with butt weld (ASME B 36.19M Schedule 40) ends. Confirm line size (20 mm (3/4 in)), connection type/standard, direction (angleway) and refrigerant before ordering.
Approvals
