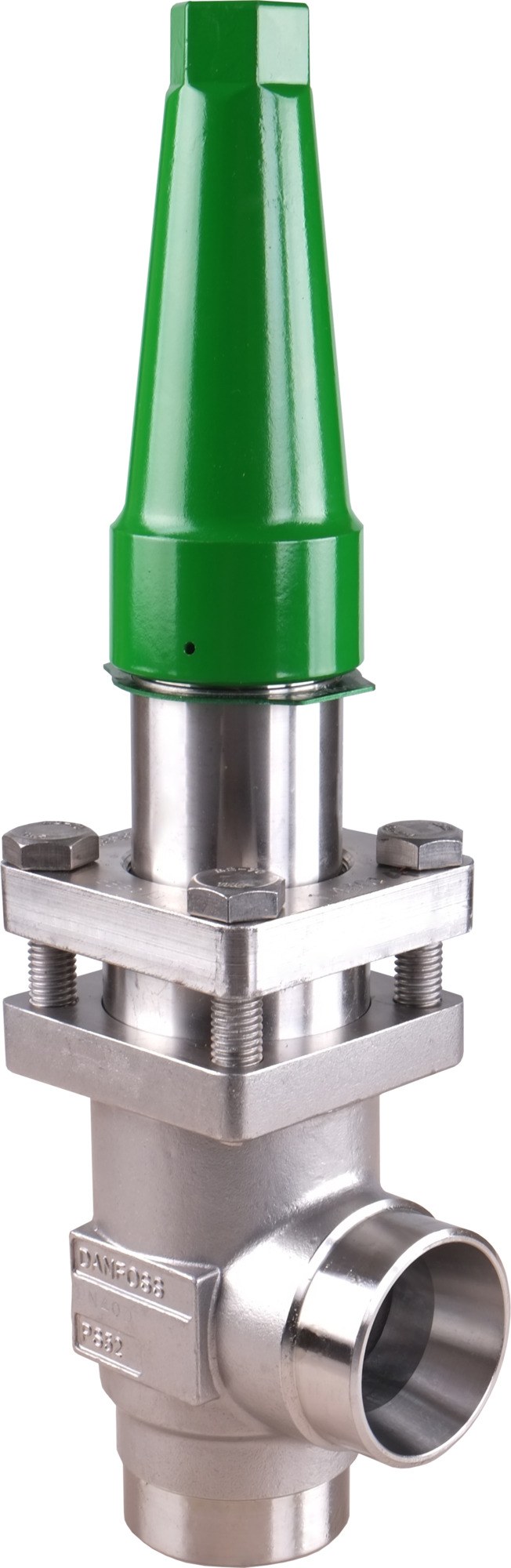

Danfoss SCA-X SS angleway check and stop valve, 32 mm (1 1/4 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SCA-X SS angleway check and stop valve for industrial refrigeration, code 148B6490. Stainless steel body with butt weld connections to ASME B 36.19M Schedule 40, nominal size 32 mm (1 1/4 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 30 m3/h. Combined non-return (check) and manual shut-off function in one body: the cone lifts for forward flow and closes on reverse flow, and can be held shut by the spindle. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- SCA-X SS check and stop valve (SVL Flexline)
- Code number
- 148B6490
- Series
- SCA-X SS
- Direction
- Angleway
- Connection type
- Butt weld
- Connection standard
- ASME B 36.19M Schedule 40
- Nominal size
- 32 mm (1 1/4 in)
- Body material
- Stainless steel
- Maximum working pressure
- 52 bar (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Kv value
- 30 m3/h
- Flow direction
- Non-return (forward flow only)
- PED assessment
- Category II
- Approvals
- CE
- EAN
- 5702428990301
- Net weight
- 3.45 Kilogram
- Product group
- Check valves
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2502:S40S:32)
- Connection material
- Stainless steel
- Cv value [gal/min]
- 34.8 gal/min
- Equipment
- Cap
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 1 1/4 in
- Inlet connection size [mm]
- 32 mm
- Inlet connection type
- Butt weld
- Kv value [m³/h]
- 30 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- MinODP [bar]
- 0.04 bar
- MinODP [psi]
- 0.58 psi
- Outlet connection size [in]
- 1 1/4 in
- Outlet connection size [mm]
- 32 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R134a
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- ASME B 36.19M Schedule 40
- Size / Series
- 32 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.30
Compatibility & Fitment
Danfoss SVL Flexline SCA-X SS valve. This code is the angleway SCA-X SS with butt weld (ASME B 36.19M Schedule 40) ends. Confirm line size (32 mm (1 1/4 in)), connection type/standard, direction (angleway) and refrigerant before ordering.
