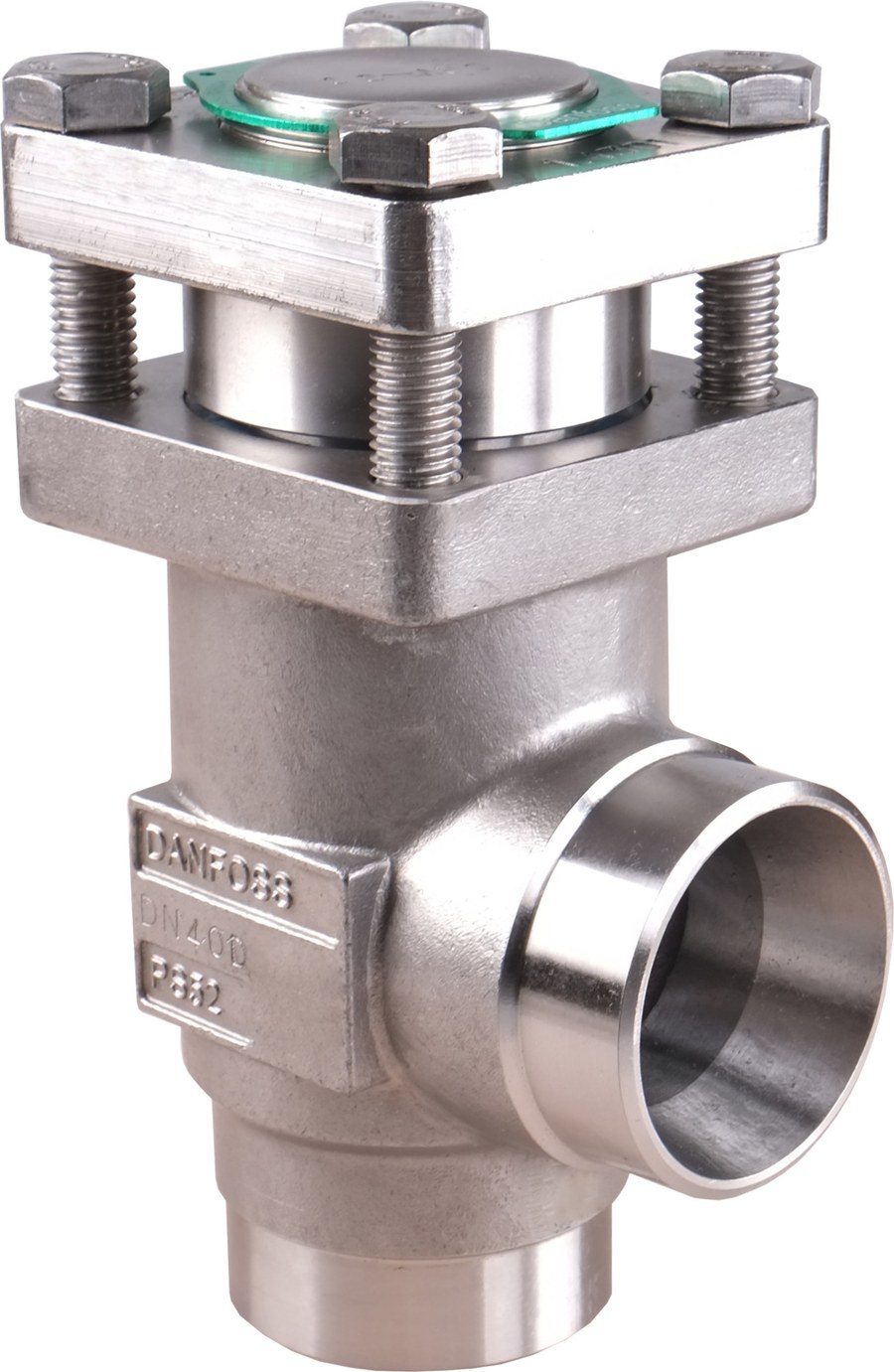

Danfoss CHV-X SS angleway check (non-return) valve, 32 mm (1 1/4 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar

Danfoss CHV-X SS angleway check (non-return) valve for industrial refrigeration, code 148B6492. Stainless steel body with butt weld connections to ASME B 36.19M Schedule 40, nominal size 32 mm (1 1/4 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 30 m3/h. The cone lifts to allow forward flow and closes against reverse flow; an embossed one-way arrow marks the flow direction. minimum opening differential pressure 0.04 bar. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.

Type

CHV-X SS check (non-return) valve (SVL Flexline) Code number: 148B6492 Series: CHV-X SS Direction: Angleway Connection type: Butt weld Connection standard: ASME B 36.19M Schedule 40 Nominal size: 32 mm (1 1/4 in) Body material: Stainless steel Maximum working pressure: 52 bar (754 psig) Media temperature range: -60 to 150 C (-76 to 302 F) Kv value: 30 m3/h Flow direction: Non-return (forward flow only) PED assessment: Category II Approvals: CE EAN: 5702428990325 Net weight: 2.572 Kilogram Product group: Check valves Approval: CE CE mark: Yes China RoHS compliance: Yes Colour Paint: Reddish brown Connection Code: (2502:S40S:32) Connection material: Stainless steel Connection size [in]: 1 1/4 in Connection size [mm]: 32 mm Cv value [gal/min]: 34.8 gal/min EU RoHS compliance: Yes Fluid Group: 1 Kv value [m³/h]: 30 m³/h Max. Working Pressure [bar]: 52 bar Max. Working Pressure [psig]: 754 psig PED category: II REACH Candidate List substances: No Refrigerants: R134a Temperature range [°C] [max]: 150 °C Temperature range [°C] [min]: -60 °C Temperature range [°F] [max]: 302 °F Temperature range [°F] [min]: -76 °F

Standard

ASME B 36.19M Schedule 40

Size / Series

32 mm

Material

Stainless steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8481.30
