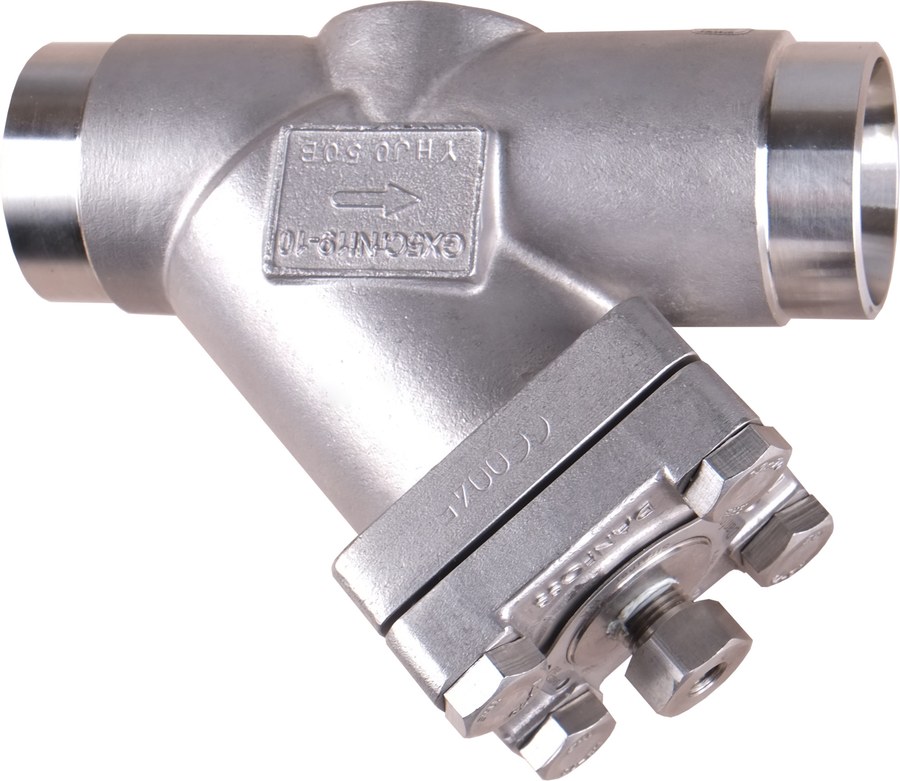

Danfoss FIA SS straightway strainer housing, 15 mm (1/2 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar

Danfoss FIA SS straightway strainer housing for industrial refrigeration, code 148B6493. Stainless steel body with butt weld connections to ASME B 36.19M Schedule 40, nominal size 15 mm (1/2 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 2.5 to 3.3 m3/h (per micron rating). In-line strainer housing that protects downstream components from weld slag and pipe scale; the filter insert (micron rating selected separately) is renewable without cutting the housing out of the line. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.

Type

FIA SS strainer housing (SVL Flexline)

Code number

148B6493

Series

FIA SS

Direction

Straightway

Connection type

Butt weld

Connection standard

ASME B 36.19M Schedule 40

Nominal size

15 mm (1/2 in)

Body material

Stainless steel

Maximum working pressure

52 bar (754 psig)

Media temperature range

-60 to 150 C (-76 to 302 F)

Kv value

2.5 to 3.3 m3/h (per micron rating)

PED assessment

Article 4, paragraph 3 (sound engineering practice)

Approvals

PED Article 4, paragraph 3 (sound engineering practice)

EAN

5702428990332

Net weight

1.267 Kilogram

Product group

Strainers

China RoHS compliance

Yes

Colour Paint

Reddish brown

Connection Code

(2502:S40S:15)

Connection material

Stainless steel

Cv value [gal/min] 100 plain

11.45 gal/min

Cv value [gal/min] 100 pleated

14.53 gal/min

Cv value [gal/min] 150 plain

11.01 gal/min

Cv value [gal/min] 38 plain

12.33 gal/min

Cv value [gal/min] 72 plain

11.89 gal/min

Equipment

Cover

EU RoHS compliance

Yes

Fluid Group

1

Inlet connection size [in]

1/2 in

Inlet connection size [mm]

15 mm

Inlet connection type

Butt weld

Kv value [m3/h] µ100 plain

2.5 m³/h

Kv value [m3/h] µ150 plain

2.6 m³/h

Kv value [m3/h] µ150 pleated

3.3 m³/h

Kv value [m3/h] µ250 plain

2.7 m³/h

Kv value [m3/h] µ500 plain

2.8 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Outlet connection size [in]

1/2 in

Outlet connection size [mm]

15 mm

Outlet connection type

Butt weld

PED category

Art. 4, par. 3

REACH Candidate List substances

No

Refrigerants

R113

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F

Valve version

Standard version

Standard

ASME B 36.19M Schedule 40

Size / Series

15 mm

Material

Stainless steel

Pressure Rating

52 bar

Temperature Range

-60 to 150 C

HS Code

8421.39
