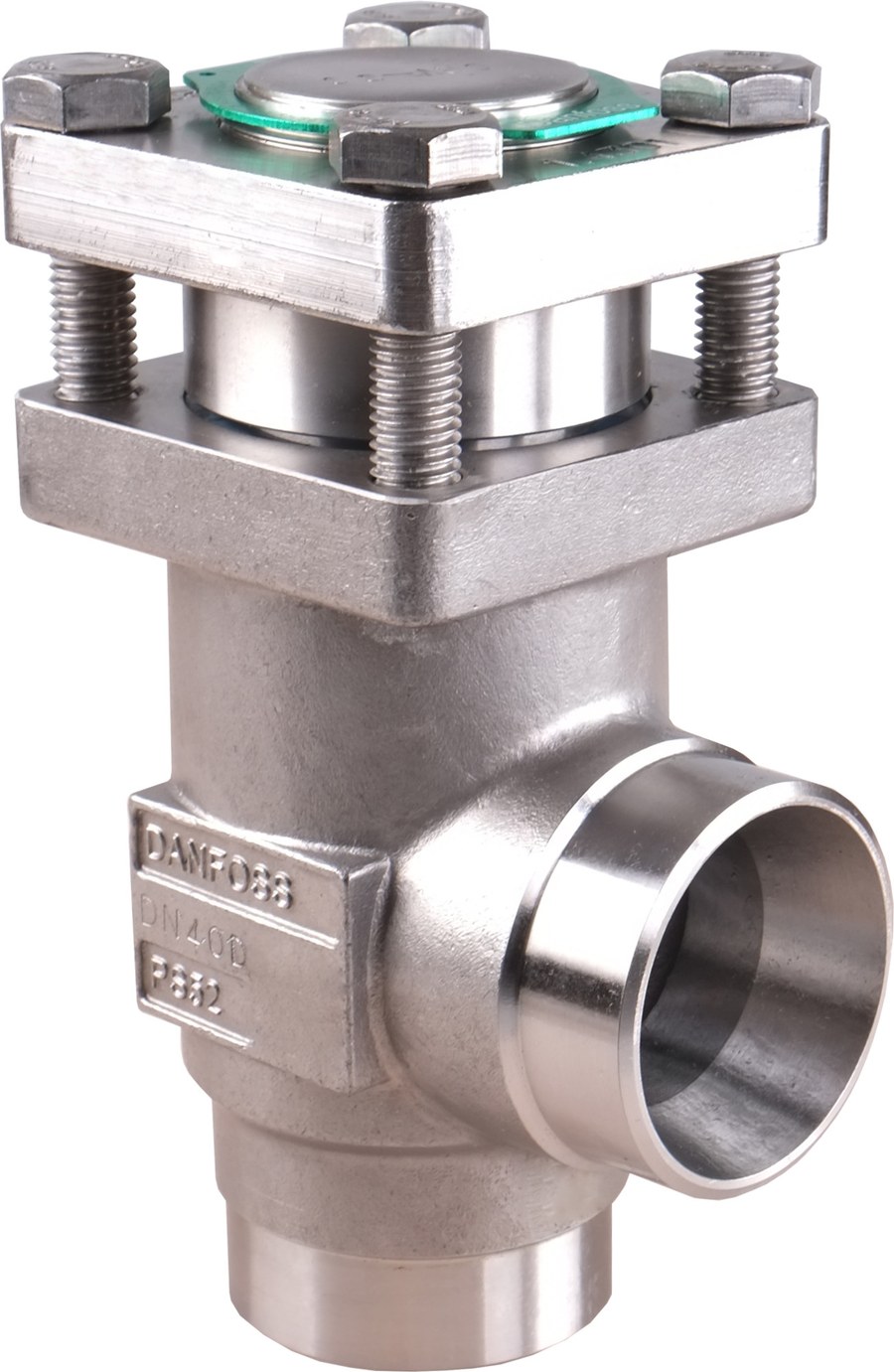

Danfoss CHV-X SS angleway check (non-return) valve, 20 mm (3/4 in) butt weld ASME B 36.19M Schedule 40, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss CHV-X SS angleway check (non-return) valve for industrial refrigeration, code 148B6491. Stainless steel body with butt weld connections to ASME B 36.19M Schedule 40, nominal size 20 mm (3/4 in). Maximum working pressure 52 bar (754 psig); media temperature range -60 to 150 C (-76 to 302 F). Flow coefficient Kv 10 m3/h. The cone lifts to allow forward flow and closes against reverse flow; an embossed one-way arrow marks the flow direction. minimum opening differential pressure 0.04 bar. Part of the Danfoss SVL Flexline programme. For HCFC, non-flammable HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- CHV-X SS check (non-return) valve (SVL Flexline) Code number: 148B6491 Series: CHV-X SS Direction: Angleway Connection type: Butt weld Connection standard: ASME B 36.19M Schedule 40 Nominal size: 20 mm (3/4 in) Body material: Stainless steel Maximum working pressure: 52 bar (754 psig) Media temperature range: -60 to 150 C (-76 to 302 F) Kv value: 10 m3/h Flow direction: Non-return (forward flow only) PED assessment: Article 4, paragraph 3 (sound engineering practice) Approvals: CE, UKCA EAN: 5702428990318 Net weight: 1.28 Kilogram Product group: Check valves Approval: UKCA CE mark: Yes China RoHS compliance: Yes Colour Paint: Reddish brown Connection Code: (2502:S40S:20) Connection material: Stainless steel Connection size [in]: 3/4 in Connection size [mm]: 20 mm Cv value [gal/min]: 11.6 gal/min EU RoHS compliance: Yes Flow direction indicator: Embossed 1-way arrow Fluid Group: 1 Kv value [m³/h]: 10 m³/h Max. Working Pressure [bar]: 52 bar Max. Working Pressure [psig]: 754 psig MinODP [bar]: 0.04 bar MinODP [psi]: 0.58 psi PED category: Art. 4, par. 3 REACH Candidate List substances: No Refrigerants: R134a Temperature range [°C] [max]: 150 °C Temperature range [°C] [min]: -60 °C Temperature range [°F] [max]: 302 °F Temperature range [°F] [min]: -76 °F
Standards & Compliance
- Standard
- ASME B 36.19M Schedule 40
- Size / Series
- 20 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.30
Compatibility & Fitment
Danfoss SVL Flexline CHV-X SS valve. This code is the angleway CHV-X SS with butt weld (ASME B 36.19M Schedule 40) ends. Confirm line size (20 mm (3/4 in)), connection type/standard, direction (angleway) and refrigerant before ordering.
