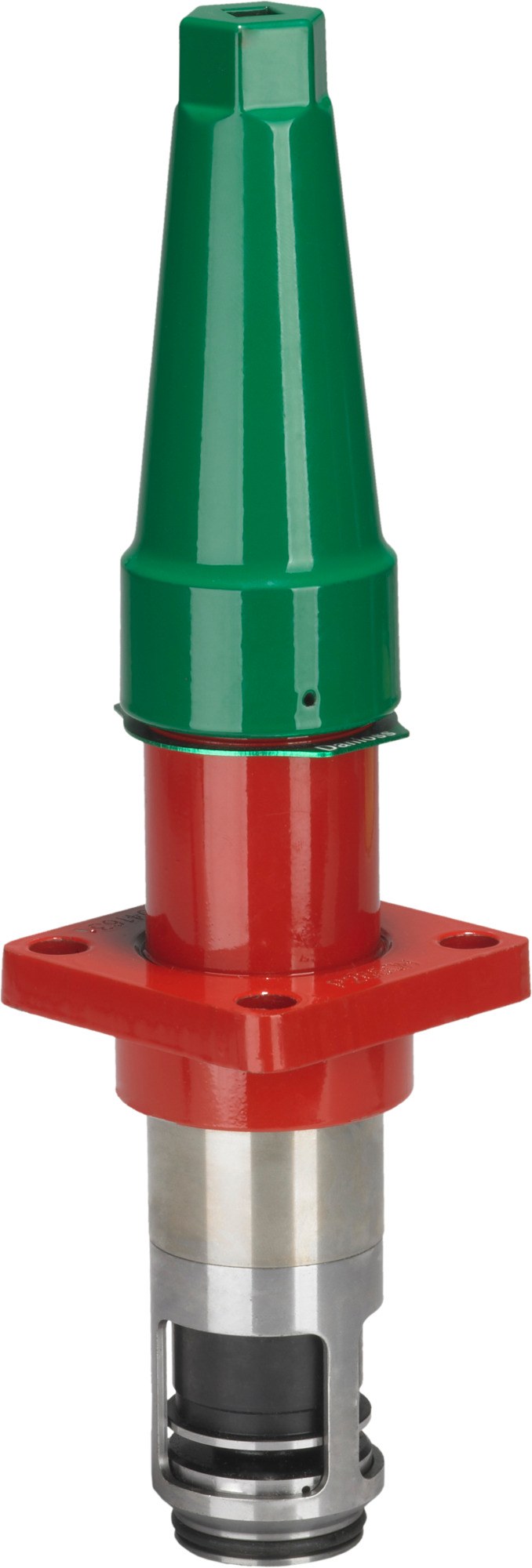

Danfoss SCA-X 50 function module (Top Complete), fits 50 mm (2 in) SCA-X 50 check and stop valve body, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SCA-X 50 function module (also called Top Complete) for the SVL Flexline modular industrial-refrigeration valve platform, store code 148B5735. The function module is the complete operating top part (bonnet, spindle, seat, check cone and spring, gaskets and bolts) that mounts on the matching SCA-X 50 valve housing to give the combined non-return plus manual stop function. It is the field-serviceable repair/replacement assembly, not a complete valve and not a loose gasket, so the check and stop valve function can be renewed without cutting the housing out of the line. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 2.519 kg, gross weight 3.621 kg. Specifications per Danfoss store code 148B5735.
Technical Specifications
- Type
- SCA-X 50 function module (Top Complete) — complete operating top part
- Code number
- 148B5735
- Fits body
- SCA-X 50 check and stop valve housing (50 mm (2 in))
- Function
- check / non-return + manual shut-off top
- Housing/valve size class
- 50 mm (2 in)
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Weight
- net weight 2.519 kg, gross weight 3.621 kg
- Approvals
- CE
- EAN
- 5702428486125
- Brand
- SVL Flexline
- Product group
- Check valves
- Type designation
- Top Complete
- Max. working pressure
- 52.0 bar
- Temperature range
- -60 °C to 150 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R152a; R170; R22; R227ea; R236fa; R245fa; R290; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R452C; R454A; R454B; R454C; R455A; R463A; R502; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a; R717; R744
- REACH candidate-list substances
- No
- Equipment
- Cap
- EU RoHS compliance
- Yes
Standards & Compliance
- Size / Series
- 50 mm
- Material
- Steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline SCA-X 50 function module. Mounts on the matching SCA-X 50 valve housing / SVL 50 multifunction valve body. Function modules are size-specific — confirm the housing nominal size (50 mm (2 in)) before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and the other check/strainer components of the same size.
