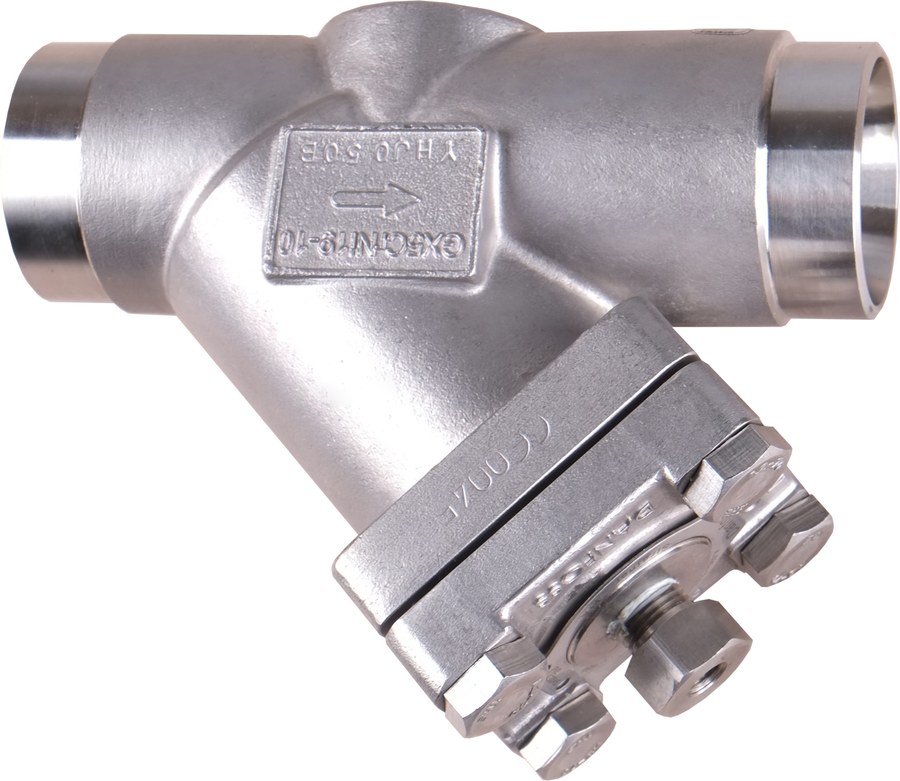

Danfoss FIA SS 50 straightway strainer, 50 mm (2 in) butt weld ASME B 36.19M Schedule 10, EN 10220, stainless steel, 52 bar (code 148B5758)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA SS 50 stainless-steel strainer (filter) for the SVL Flexline industrial-refrigeration range, store code 148B5758, straightway stainless-steel body with butt-weld connections to ASME B 36.19M Schedule 10, EN 10220. The FIA is an in-line strainer that protects downstream valves, pumps and compressors from pipe scale and weld debris; the replaceable insert is available in 38, 72, 100, 150, 250 and 500 micron and in a pleated version for higher dirt-holding. Stainless-steel construction suits R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils where a stainless wetted part is required. Nominal size 50 mm (2 in). Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 3.05 kg, gross weight 3.449 kg. Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5758.
Specifications
- Part number
- 148B5758
- HS code
- 8421.39
- Material
- Stainless steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard
- ASME B 36.19M Schedule 10, EN 10220
- Standard size
- 50 mm
Compatibility
Danfoss SVL Flexline FIA SS 50 stainless strainer. Order the required FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) separately. EN 10220 and ASME B 36.19M Schedule 10 weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and SCA-X/CHV-X check valves of the same nominal size.
Standards
- ASME B 36.19M Schedule 10, EN 10220
- PED 2014/68/EU
Approvals
