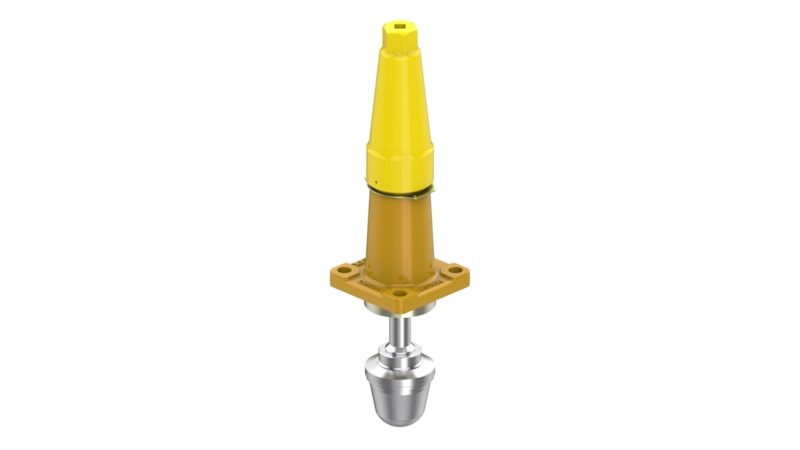

Danfoss REG-SB 65 function module (Top Complete), fits SVL Flexline REG-SB 65 regulating valve, 65 bar (code 148B5768)
Danfoss · HVAC & Refrigeration · Globe Valves
Danfoss REG-SB 65 function module (also called Top Complete) for the SVL Flexline modular industrial-refrigeration valve platform, store code 148B5768. The function module is the complete field-serviceable operating top part — top part, one gasket and four bolts — that mounts on the matching REG-SB 65 regulating valve housing. A scaled spindle top gives repeatable manual throttling of liquid, suction, hot-gas and oil flow; the back-seating spindle lets the packing be serviced in operation. Flow area 1978 mm2 (3.065 in2). It is the repair/replacement assembly, not a complete valve and not a loose gasket, so the regulating (throttling) function can be renewed without cutting the housing out of the line. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 65 bar g (943 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 2.802 kg, gross weight 4.742 kg. Specifications per Danfoss store code 148B5768.
Specifications
- Part number
- 148B5768
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to 150 C
Compatibility
Danfoss SVL Flexline REG-SB 65 function module (Top Complete). Mounts on the matching REG-SB 65 valve housing / SVL multifunction valve body. Function modules are size-specific — confirm the housing nominal size class (65) before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and SCA-X/CHV-X check components of the same size.
Standards
Approvals
