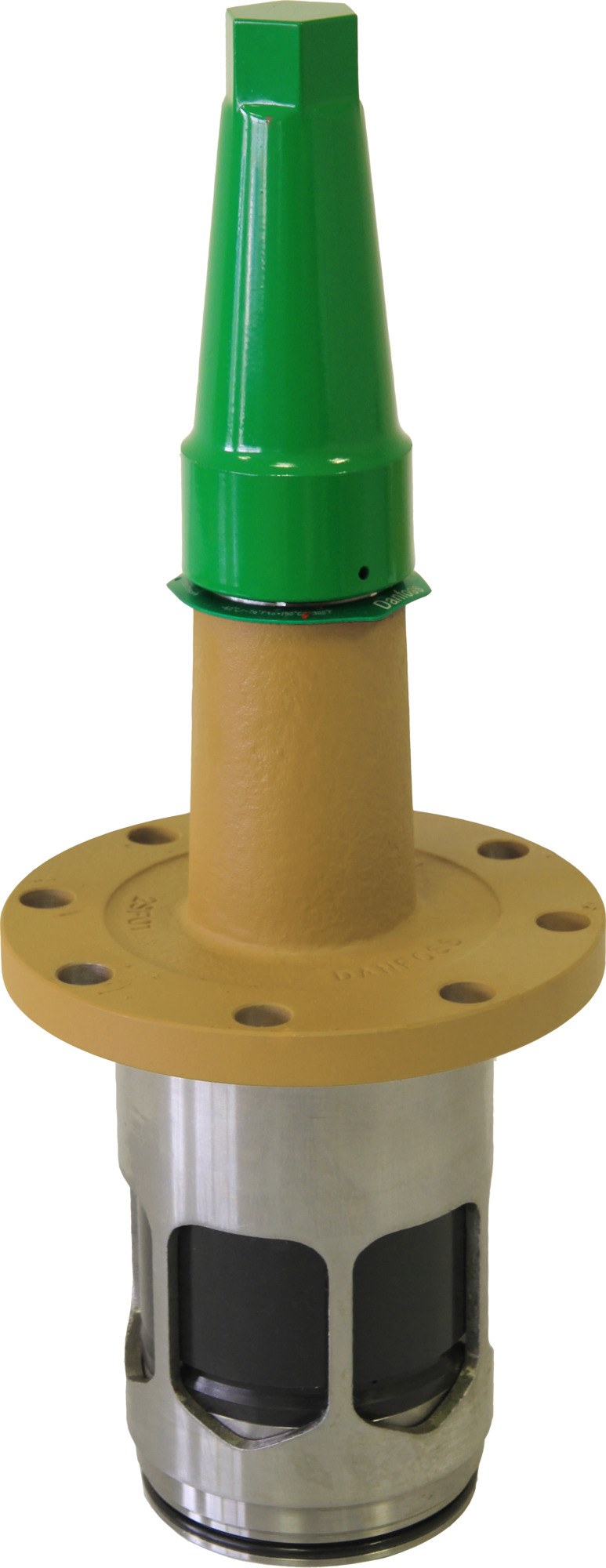

Danfoss SCA-X 100 function module (Top Complete), fits SVL Flexline SCA-X 100 stop/check valve, 65 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss SCA-X 100 function module (also called Top Complete) for the SVL Flexline modular industrial-refrigeration valve platform, store code 148B5774. The function module is the complete field-serviceable operating top part — top part, one gasket and four bolts — that mounts on the matching SCA-X 100 stop/check valve housing. It gives the combined check (non-return) plus manual shut-off function so the line can be positively closed for service while still protecting against reverse flow. It is the repair/replacement assembly, not a complete valve and not a loose gasket, so the combined non-return (check) plus manual stop function can be renewed without cutting the housing out of the line. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 65 bar g (943 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 7.162 kg, gross weight 11.434 kg. Specifications per Danfoss store code 148B5774.
Technical Specifications
- Type
- SCA-X 100 function module (Top Complete)
- Code number
- 148B5774
- Fits valve
- SVL Flexline SCA-X 100 stop/check valve
- Function
- combined non-return (check) plus manual stop operating top part
- Parts included
- top part, 1 gasket, 4 bolts
- Maximum working pressure
- 65 bar g (943 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Weight
- net weight 7.162 kg, gross weight 11.434 kg
- Approvals
- CE
- EAN
- 5702428500616
- Brand
- SVL Flexline
- Product group
- Check valves
- Type designation
- Top Complete
- Max. working pressure
- 65.0 bar
- Temperature range
- -60 °C to 150 °C
- Refrigerants
- R1234yf; R1234ze(E); R125; R134a; R152a; R170; R22; R227ea; R236fa; R245fa; R290; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R452C; R454A; R454B; R454C; R455A; R463A; R502; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a; R717; R744
- REACH candidate-list substances
- No
- Equipment
- Cap
- EU RoHS compliance
- Yes
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 65 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8481.90
Compatibility & Fitment
Danfoss SVL Flexline SCA-X 100 function module (Top Complete). Mounts on the matching SCA-X 100 valve housing / SVL multifunction valve body. Function modules are size-specific — confirm the housing nominal size class (100) before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and SCA-X/CHV-X check components of the same size.
