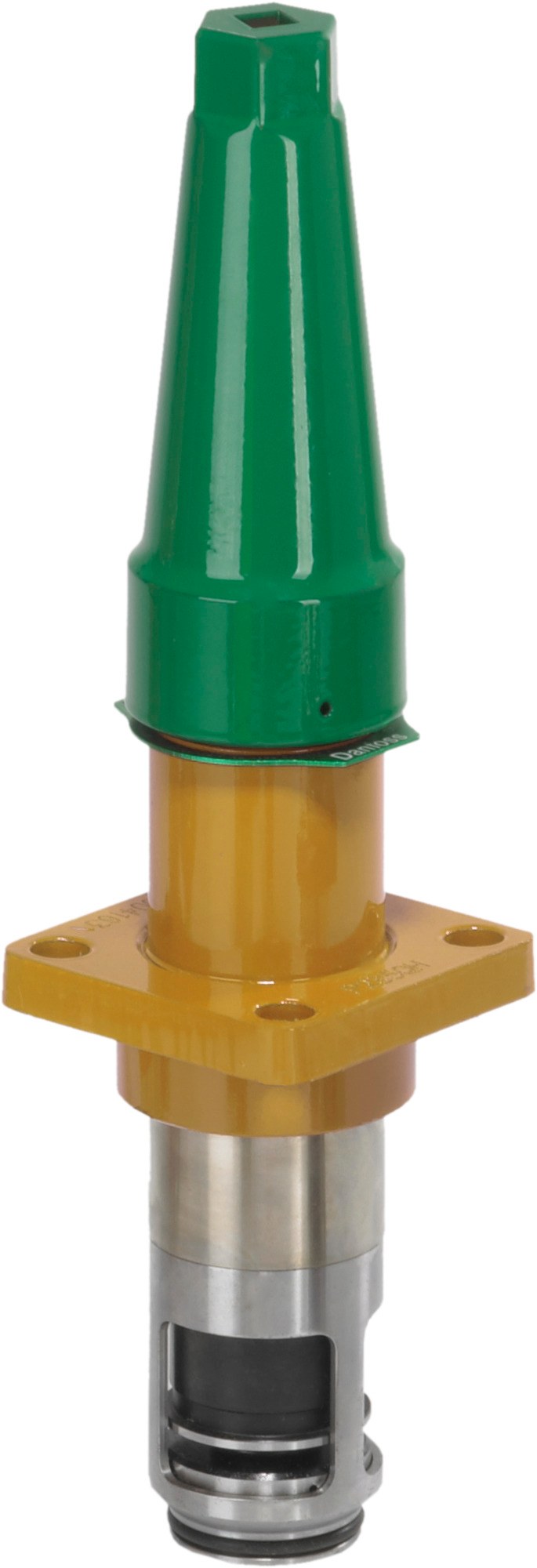

Danfoss SCA-X 65 function module (Top Complete), fits SVL Flexline SCA-X 65 stop/check valve, 65 bar (code 148B5772)
Danfoss · HVAC & Refrigeration · Check Valves
Danfoss SCA-X 65 function module (also called Top Complete) for the SVL Flexline modular industrial-refrigeration valve platform, store code 148B5772. The function module is the complete field-serviceable operating top part — top part, one gasket and four bolts — that mounts on the matching SCA-X 65 stop/check valve housing. It gives the combined check (non-return) plus manual shut-off function so the line can be positively closed for service while still protecting against reverse flow. It is the repair/replacement assembly, not a complete valve and not a loose gasket, so the combined non-return (check) plus manual stop function can be renewed without cutting the housing out of the line. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 65 bar g (943 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 2.802 kg, gross weight 4.4 kg. Specifications per Danfoss store code 148B5772.
Specifications
- Part number
- 148B5772
- HS code
- 8481.90
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to 150 C
Compatibility
Danfoss SVL Flexline SCA-X 65 function module (Top Complete). Mounts on the matching SCA-X 65 valve housing / SVL multifunction valve body. Function modules are size-specific — confirm the housing nominal size class (65) before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and SCA-X/CHV-X check components of the same size.
Standards
Approvals
