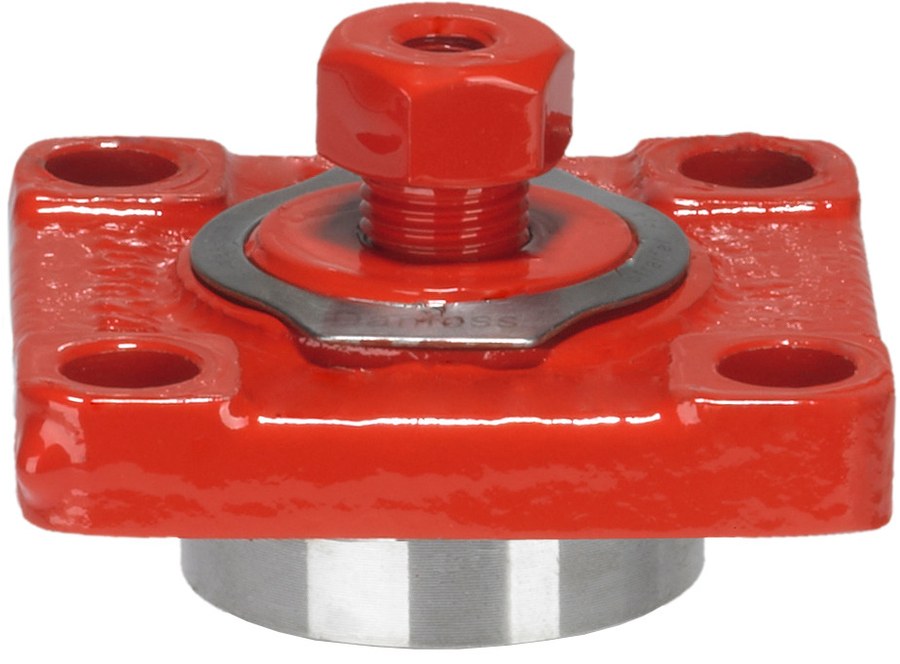

Danfoss FIA 50 function module (Top Complete), fits 50 mm (2 in) FIA 50 strainer body, 52 bar (code 148B5748)
Danfoss · HVAC & Refrigeration · Filters & Driers
Danfoss FIA 50 function module (also called Top Complete) for the SVL Flexline modular industrial-refrigeration valve platform, store code 148B5748. The function module is the complete internal strainer top assembly (cover, spindle/insert carrier and gaskets) that mounts on the matching FIA 50 valve housing; the replaceable strainer insert itself (FIA INS, 38/72/100/150/250/500 micron) is ordered separately. It is the field-serviceable repair/replacement assembly, not a complete valve and not a loose gasket, so the strainer function can be renewed without cutting the housing out of the line. For R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils. Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 0.8 kg, gross weight 0.96 kg. Specifications per Danfoss store code 148B5748.
Specifications
- Part number
- 148B5748
- HS code
- 8421.99
- Material
- Steel
- Pressure rating
- 52 bar
- Temperature range
- -60 to 150 C
- Standard size
- 50 mm
Compatibility
Danfoss SVL Flexline FIA 50 function module. Mounts on the matching FIA 50 valve housing / SVL 50 multifunction valve body. Pair with a FIA INS strainer insert in the required micron rating (38/72/100/150/250/500). Function modules are size-specific — confirm the housing nominal size (50 mm (2 in)) before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and the other check/strainer components of the same size.
Standards
Approvals
