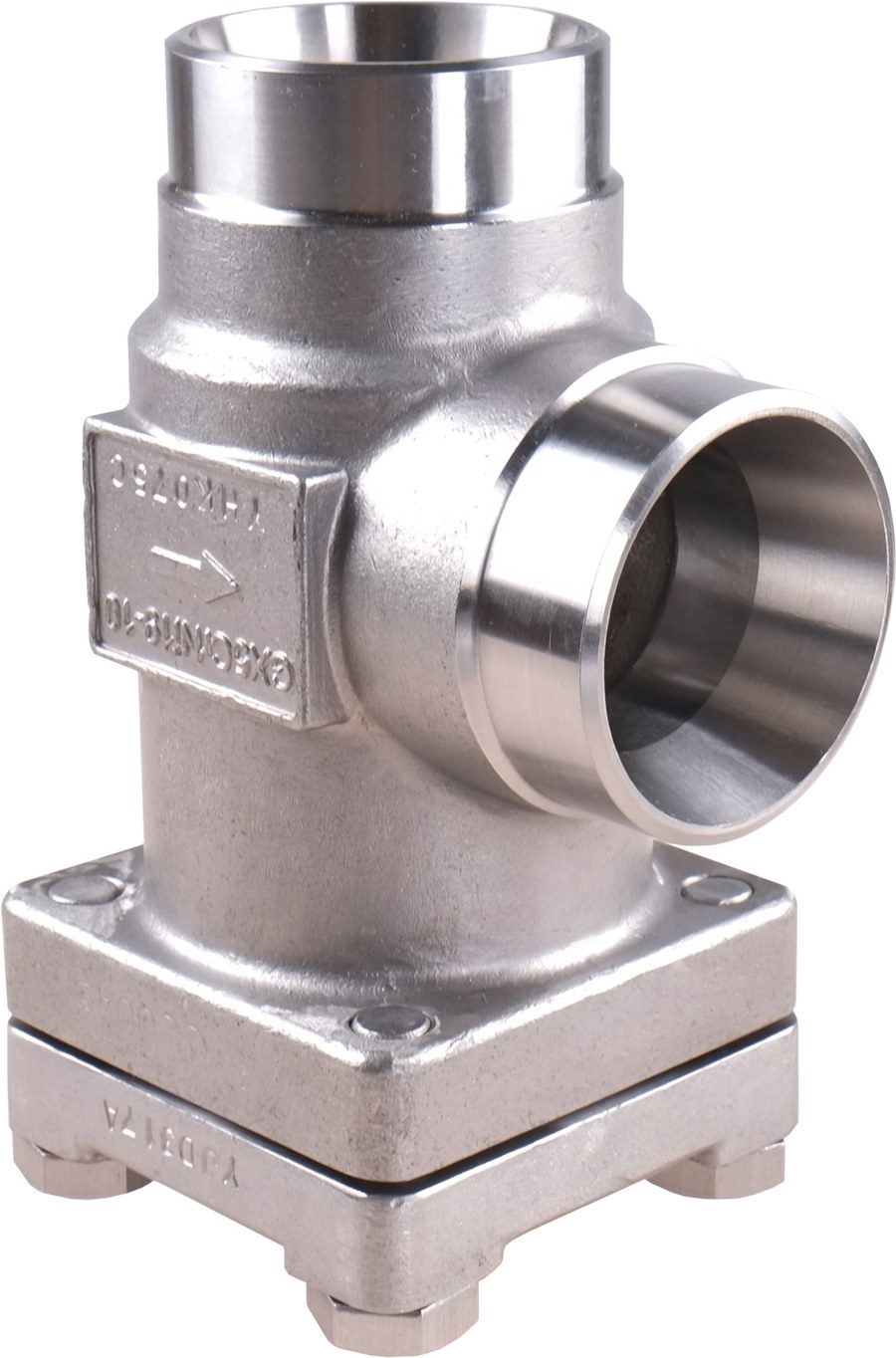

Danfoss FIA SS 50 angleway strainer, 50 mm (2 in) butt weld EN 10220, stainless steel, 52 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss FIA SS 50 stainless-steel strainer (filter) for the SVL Flexline industrial-refrigeration range, store code 148B5757, angleway stainless-steel body with butt-weld connections to EN 10220. The FIA is an in-line strainer that protects downstream valves, pumps and compressors from pipe scale and weld debris; the replaceable insert is available in 38, 72, 100, 150, 250 and 500 micron and in a pleated version for higher dirt-holding. Stainless-steel construction suits R717 (ammonia), R744 (CO2) and fluorinated refrigerants and their oils where a stainless wetted part is required. Nominal size 50 mm (2 in). Maximum working pressure 52 bar g (754 psig); media temperature -60 to 150 C (-76 to 302 F). net weight 2.5 kg, gross weight 2.824 kg. Conformity assessment PED 2014/68/EU, Category II. Specifications per Danfoss store code 148B5757.
Technical Specifications
- Type
- FIA SS 50 strainer (SVL Flexline), stainless steel
- Code number
- 148B5757
- Nominal size
- 50 mm (2 in)
- Flow direction body
- Angleway
- Connection
- butt weld both ends, EN 10220
- Body material
- stainless steel
- Strainer inserts (ordered separately)
- 38 / 72 / 100 / 150 / 250 / 500 micron, plain or pleated
- Maximum working pressure
- 52 bar g (754 psig)
- Media temperature range
- -60 to 150 C (-76 to 302 F)
- Applicable media
- R717 (ammonia), R744 (CO2), HFC/HCFC refrigerants and oils
- Weight
- net weight 2.5 kg, gross weight 2.824 kg
- Conformity assessment
- PED 2014/68/EU, Category II
- Approvals
- CE
- EAN
- 5702428843317
- Net weight
- 2.5 Kilogram
- Product group
- Strainers
- Approval
- CE
- CE mark
- Yes
- China RoHS compliance
- Yes
- Colour Paint
- Reddish brown
- Connection Code
- (2501:D29:50)
- Connection material
- Stainless steel
- Connection standard
- EN 10220
- Cv value [gal/min] 100 plain
- 202.09 gal/min
- Cv value [gal/min] 100 pleated
- 249.64 gal/min
- Cv value [gal/min] 150 plain
- 198.57 gal/min
- Cv value [gal/min] 38 plain
- 221.02 gal/min
- Cv value [gal/min] 38 pleated
- 272.98 gal/min
- Cv value [gal/min] 72 plain
- 209.58 gal/min
- Cv value [gal/min] 72 pleated
- 258.89 gal/min
- Direction
- Angleway
- Equipment
- Cover
- EU RoHS compliance
- Yes
- Flow direction indicator
- Embossed 1-way arrow
- Fluid Group
- 1
- Inlet connection size [in]
- 2 in
- Inlet connection size [mm]
- 50 mm
- Inlet connection type
- Butt weld
- Kv value [m3/h] µ100 plain
- 45.1 m³/h
- Kv value [m3/h] µ150 plain
- 45.9 m³/h
- Kv value [m3/h] µ150 pleated
- 56.7 m³/h
- Kv value [m3/h] µ250 plain
- 47.6 m³/h
- Kv value [m3/h] µ250 pleated
- 58.8 m³/h
- Kv value [m3/h] µ500 plain
- 50.2 m³/h
- Kv value [m3/h] µ500 pleated
- 62 m³/h
- Max. Working Pressure [bar]
- 52 bar
- Max. Working Pressure [psig]
- 754 psig
- Outlet connection size [in]
- 2 in
- Outlet connection size [mm]
- 50 mm
- Outlet connection type
- Butt weld
- PED category
- II
- REACH Candidate List substances
- No
- Refrigerants
- R113
- Temperature range [°C] [max]
- 150 °C
- Temperature range [°C] [min]
- -60 °C
- Temperature range [°F] [max]
- 302 °F
- Temperature range [°F] [min]
- -76 °F
- Valve version
- Standard version
Standards & Compliance
- Standard
- EN 10220
- Size / Series
- 50 mm
- Material
- Stainless steel
- Pressure Rating
- 52 bar
- Temperature Range
- -60 to 150 C
- HS Code
- 8421.39
Compatibility & Fitment
Danfoss SVL Flexline FIA SS 50 stainless strainer. Order the required FIA INS strainer insert (38/72/100/150/250/500 micron, plain or pleated) separately. EN 10220 and ASME B 36.19M Schedule 10 weld-end preparations are not interchangeable — confirm the mating pipe schedule before ordering. Shares the SVL Flexline platform with SVA-S/SVA-L shut-off, REG regulating and SCA-X/CHV-X check valves of the same nominal size.
